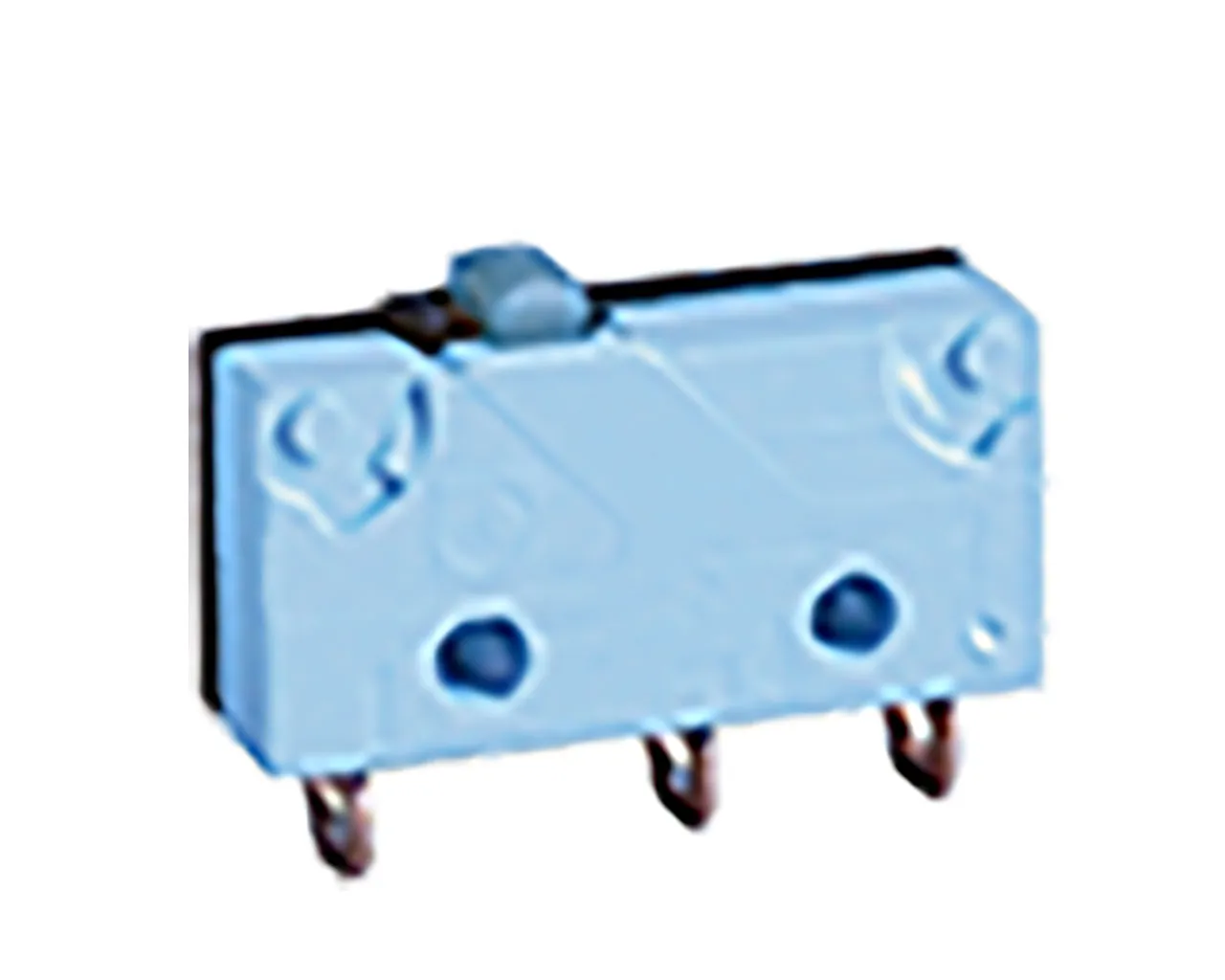

Microswitch Subminiature V4-83170 Series 831709 Changeover Function PCB Straight Pins 170A R24 A
Features
- Product Type: Limit Switch
- Manufacturer Series: 83170
- Contact Form: SPDT
- Switch Function: ON-MOM
- Current Rating: 5A (AC)
- Voltage Rating: 250 VAC
- Actuator Type: Round (Pin Plunger)
- Mounting Type: Chassis Mount
- Termination Style: PC Pin
- IP Rating: IP40
- Operating Force: 61gf
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: 125°C
- Harmonized Code: 8536500700
- ECCN: EAR99
Overview
Microswitch Subminiature V4-83170 Series 831709 Changeover Function PCB Straight Pins 170A R24 A.
