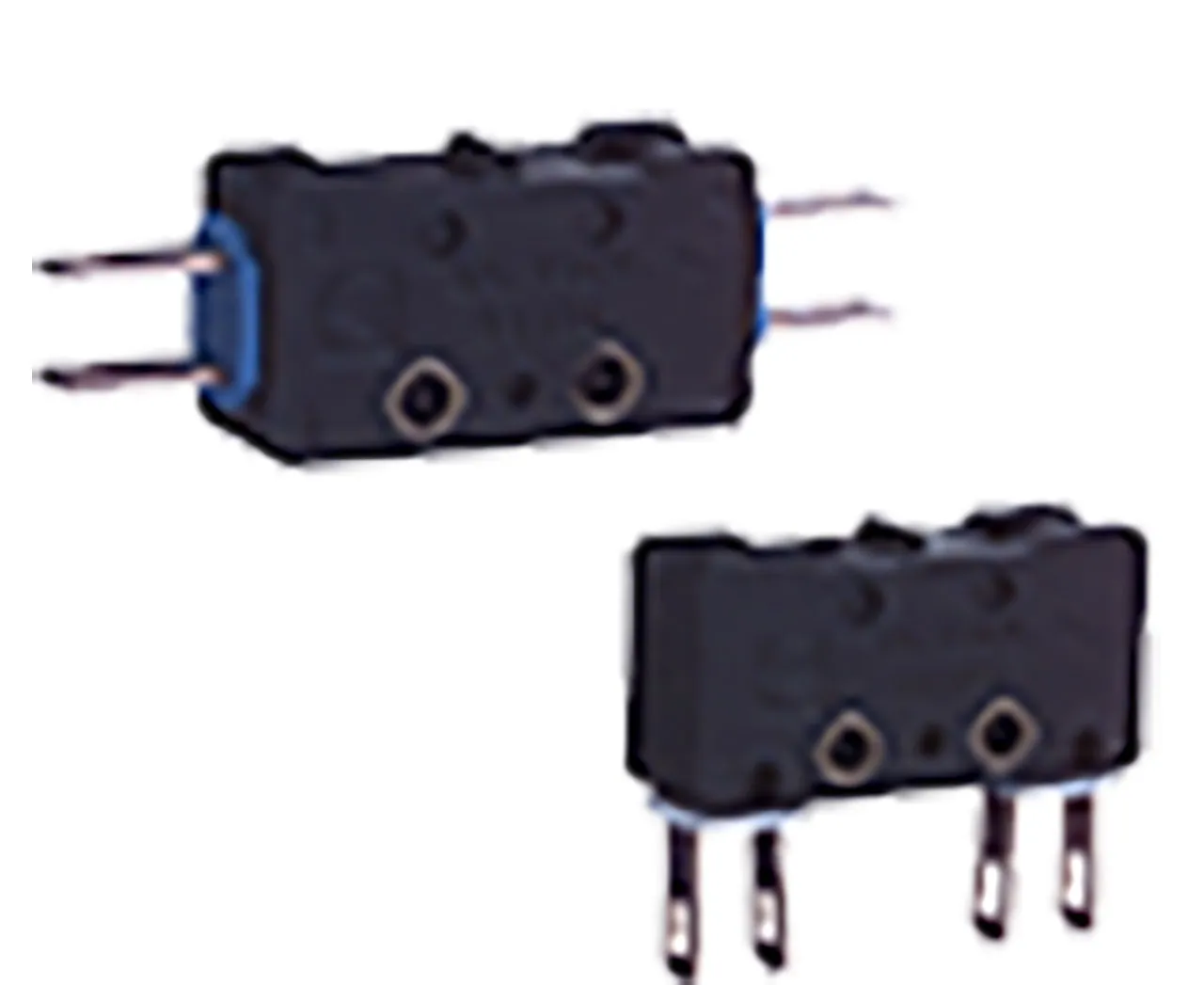

Microswitch Subminiature 83133 Series 83133 Changeover Function Solder Lugs 54A2 R30
Features
- Product Type: Limit Switch
- Manufacturer Series: 83133
- Contact Form: DPDT (DB/DM)
- Switch Function: ON-MOM
- Current Rating: 5A (AC)
- Voltage Rating: 125 VAC
- Actuator Type: Lever, Straight
- Mounting Type: Chassis Mount
- Termination Style: Solder, Quick Connect - 0.110 in., 2.8 mm
- Operating Force: 82gf
- Minimum Operating Temperature: -20°C
- Maximum Operating Temperature: 125°C
- Harmonized Code: 8536500700
- ECCN: EAR99
Overview
Microswitch Subminiature 83133 Series 83133 Changeover Function Solder Lugs 54A2 R30.
