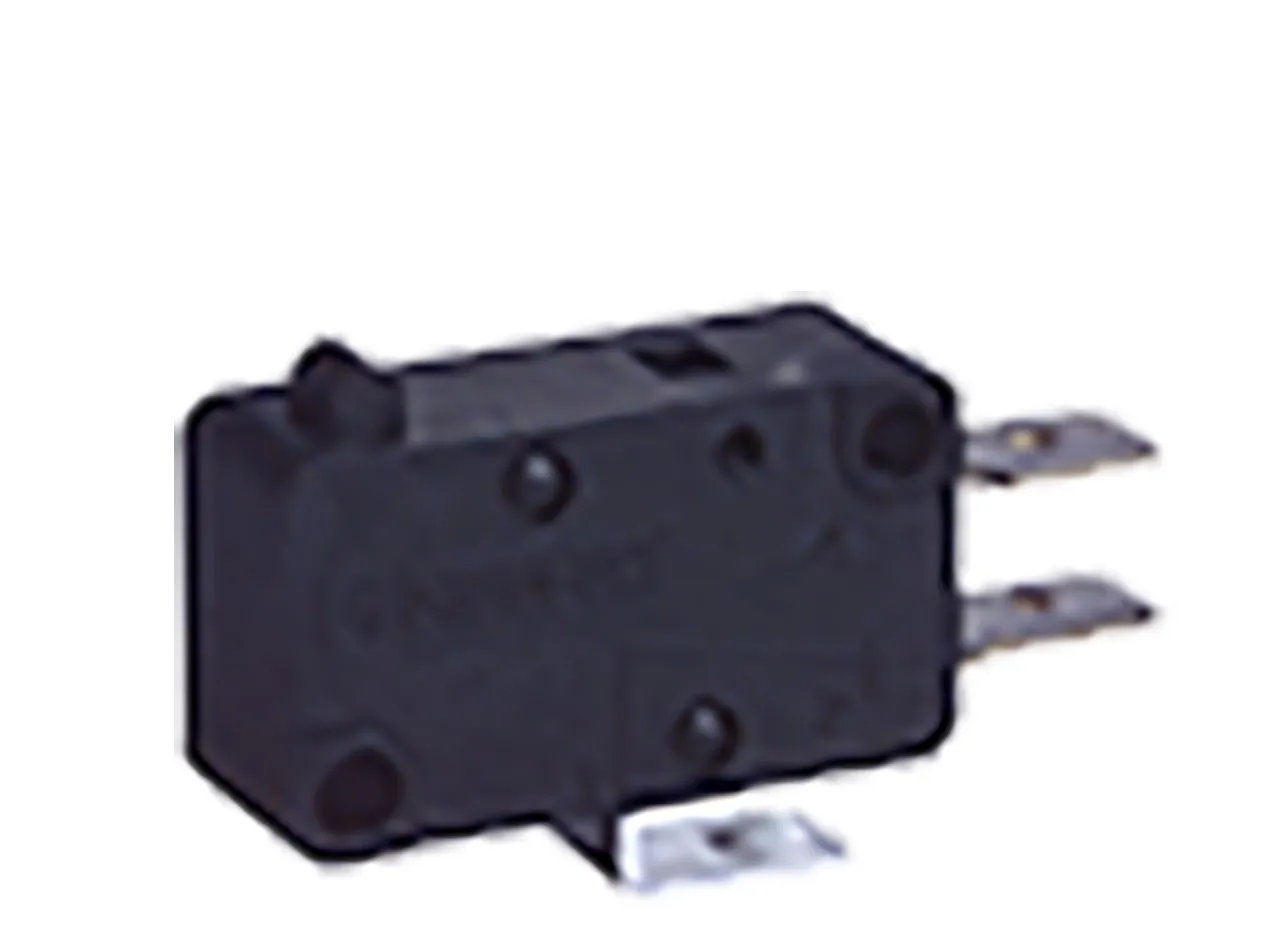

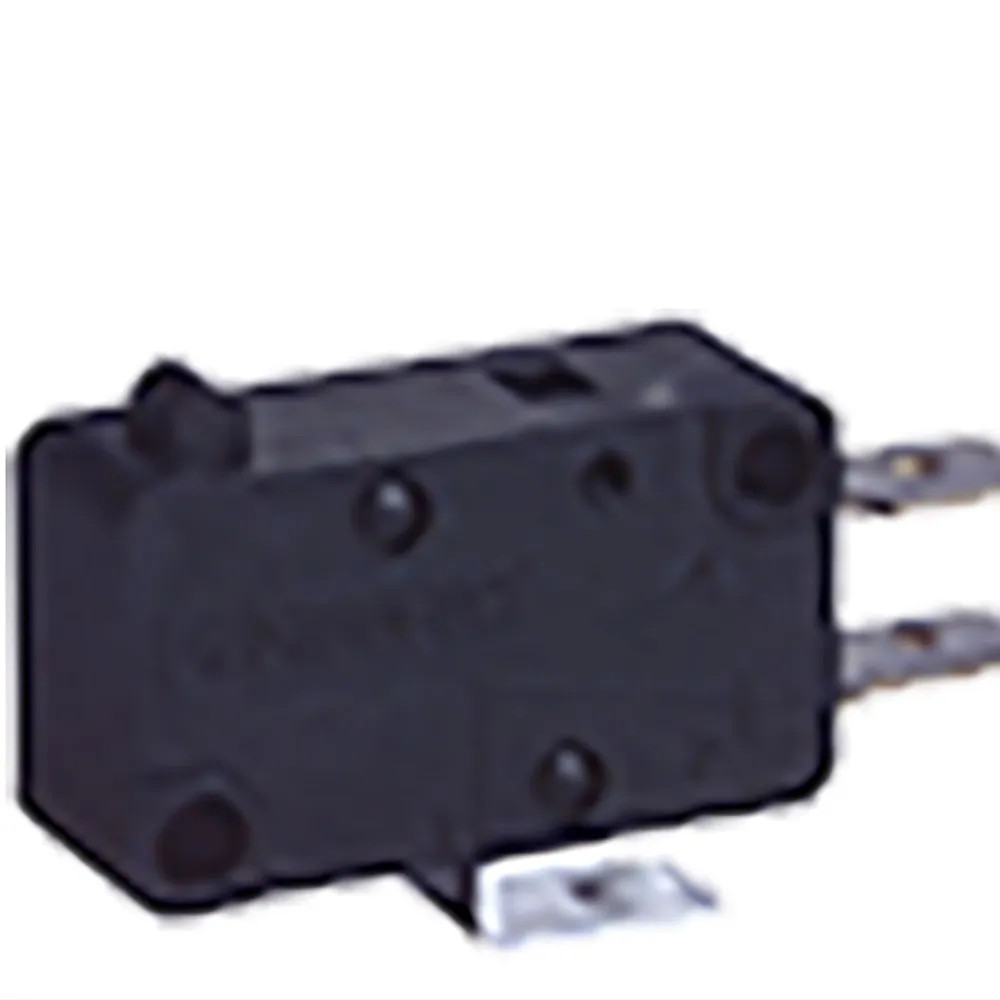

Microswitch Miniature 83160 Series 831600 Changeover Function PCB Front Output
Features
- Product Type: Limit Switch
- Manufacturer Series: 83160
- Contact Form: SPDT
- Switch Function: ON-MOM
- Current Rating: 16A (AC), 500mA (DC)
- Voltage Rating: 250 VAC, 250 VDC
- Actuator Type: Round (Pin Plunger)
- Mounting Type: Chassis Mount
- Termination Style: PC Pin
- Operating Force: 408gf
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: 125°C
- Harmonized Code: 8536508090
- ECCN: EAR99
Overview
Microswitch Miniature 83160 Series 831600 Changeover Function PCB Front Output .
