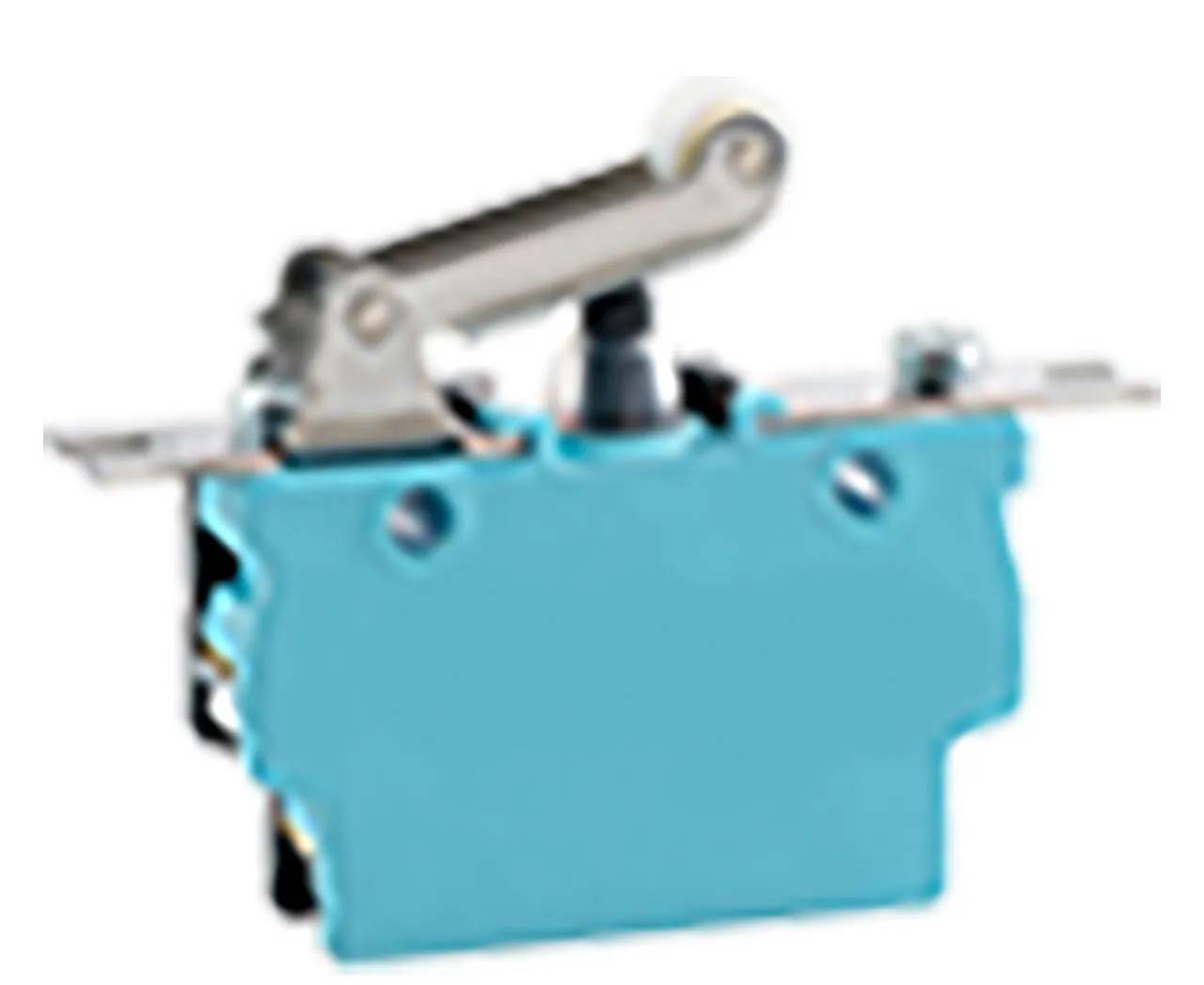

Microswitch Classic PBX-8324 Series 83240 IP40 Screw Plus Clamp Roller Lever Actuator
Features
- Product Type: Limit Switch
- Manufacturer Series: PBX-8324
- Contact Form: DPST-NO/NC
- Switch Function: ON-MOM, OFF-MOM
- Current Rating: 6A (AC), 600mA (DC)
- Voltage Rating: 250 VAC, 250 VDC
- Actuator Type: Lever, Roller
- Mounting Type: Chassis Mount
- Termination Style: Screw Terminal
- IP Rating: IP40
- Operating Force: 275gf
- Minimum Operating Temperature: -50°C
- Maximum Operating Temperature: 85°C
- Harmonized Code: 8536500700
- ECCN: EAR99
Overview
Microswitch Classic PBX-8324 Series 83240 IP40 Screw Plus Clamp Roller Lever Actuator.
