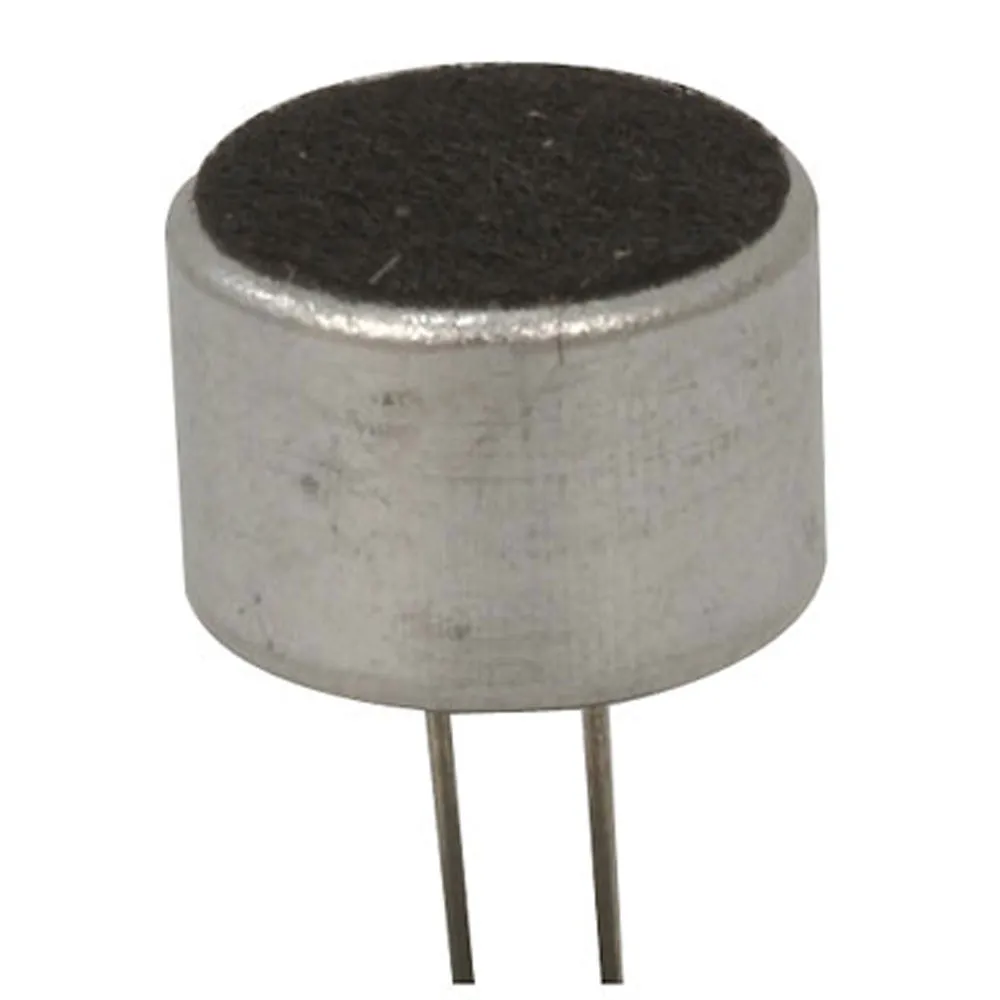

Omni-Directional Electrical Condenser Microphone Cartridge

Features:

  • Sensitivity: -64 ± 2dB
  • Frequency: 20-12,000Hz
  • Operating voltage: 12VDC max.
  • Standard voltage: 4.5VDC
  • Current rating: 0.5mA max.
  • Sensitivity reduction: -3dB @ 3V
  • S/N (Signal-to-Noise) ratio: >40dB
  • Impedance: >2.2k
  • PC pin leads
  • Size: 0.39"Dia. x 0.27"H

    Applications:
  • Tape recorders
  • Intercoms
  • Hearing aids
  • Telephone and answering devices
  • Sonic-controlled toys and sensors

Product Identification

Product Type:Microphone Cartridge

Dimensions & Appearance

Diameter:0.27 in.
Height:0.39 in.

Input

Maximum Input Voltage:12 VDC
Input Voltage:4.5 VDC
Maximum Input Current:500 mA

Features

Voltage Rating:1.5 VDC to 12 VDC
Frequency Range:20 Hz to 12000 Hz
Impedance:2200 Ohm
,
