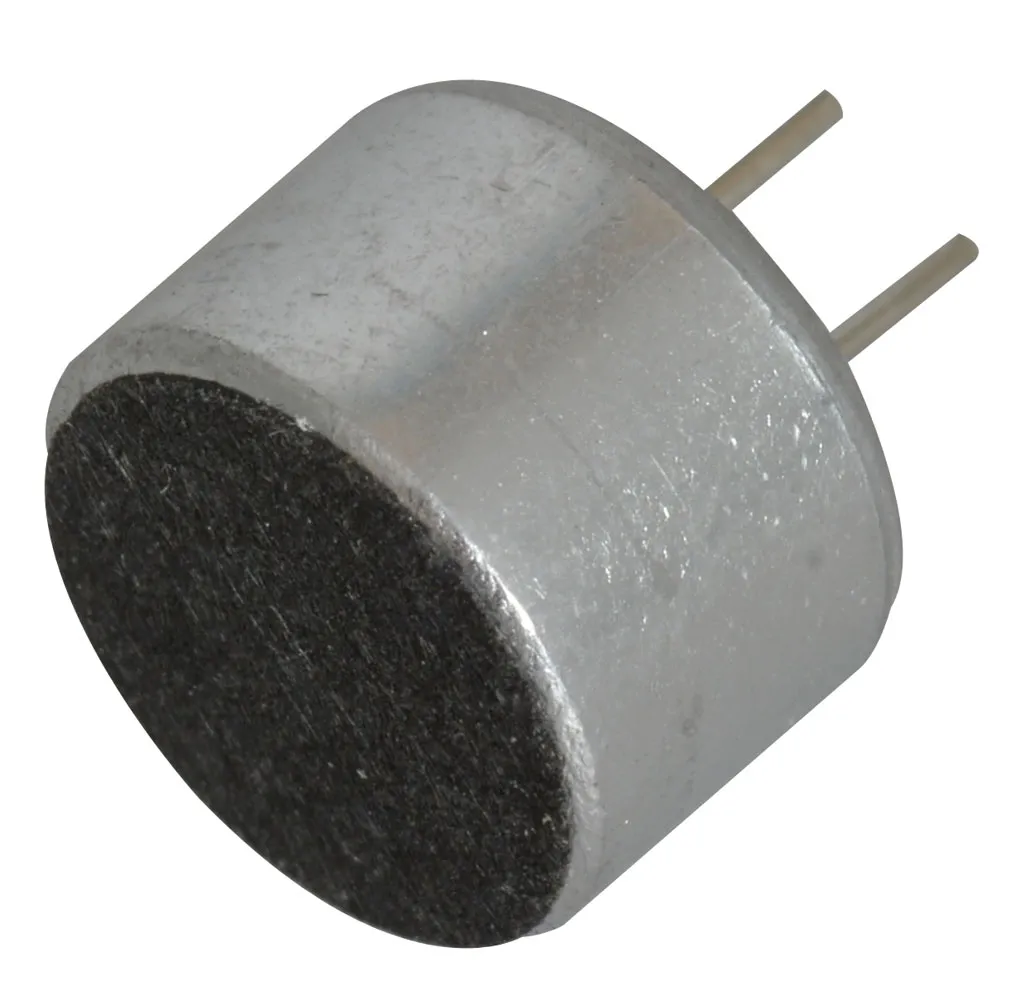

Omni-Directional Electrical Condenser Microphone Cartridge

Features

  • Sensitivity: -60 ± 3dB
  • Frequency: 50-16,000Hz
  • Operating voltage: 10VDC max.
  • Standard voltage: 3 VDC
  • Current rating: 0.5mA max.
  • Sensitivity reduction: -3dB @ 3V
  • S/N (Signal-to-Noise) ratio: >58dB
  • Impedance: >2.2kΩ
  • PC pin leads
  • Size: 0.39"Dia. x 0.27"H

Overview

Applications

  • Tape recorders
  • Intercoms
  • Hearing aids
  • Telephone and answering devices
  • Sonic-controlled toys and sensors

Product Identification

Product Type:Microphone Cartridge

Dimensions & Appearance

Diameter:0.27 in.
Height:0.39 in.

Input

Maximum Input Voltage:10 VDC
Input Voltage:3 VDC
Maximum Input Current:500 mA

Features

Voltage Rating:10 VDC
Frequency Range:50 Hz to 16000 Hz
Impedance:2200 Ohm
,
