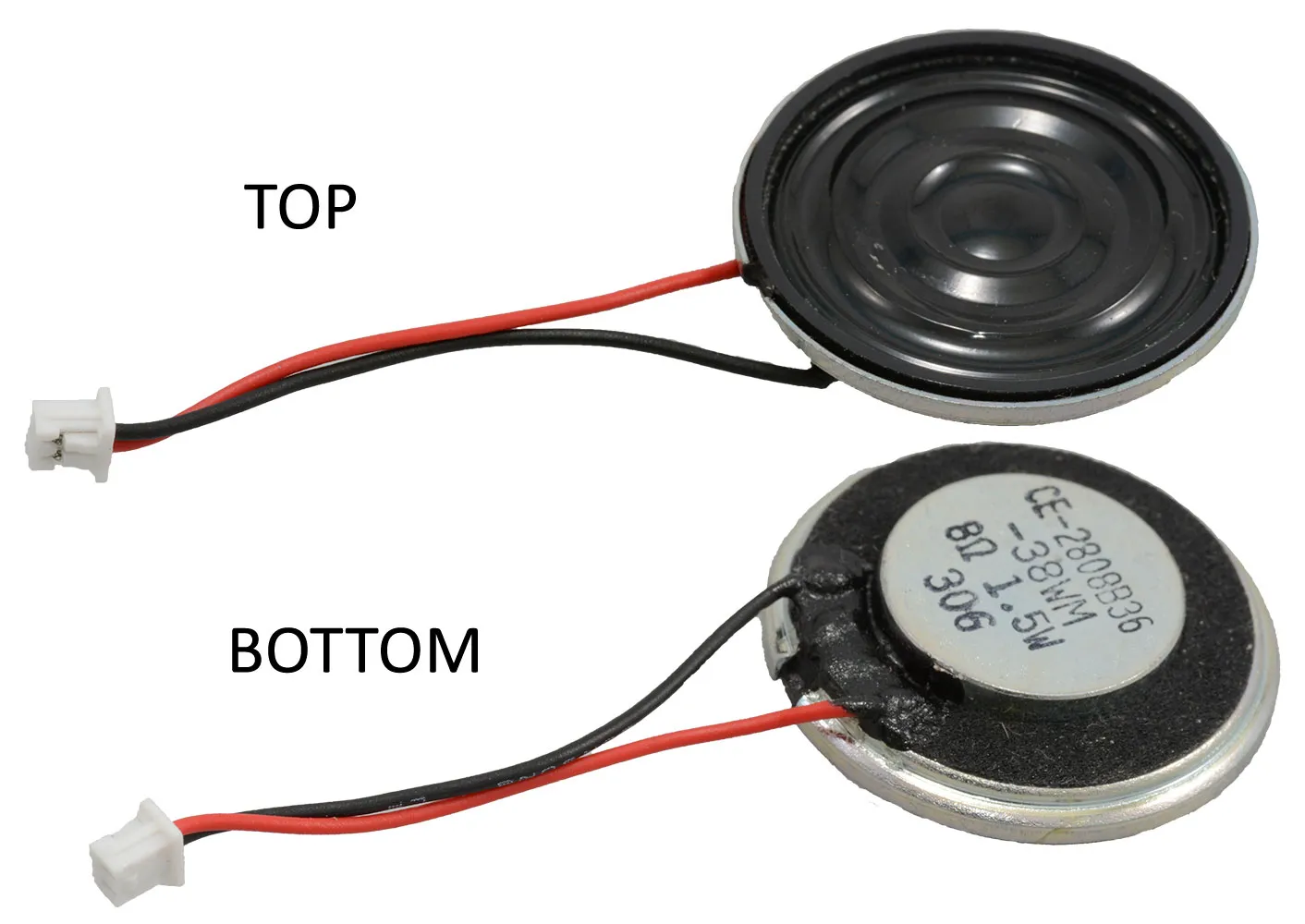

Micro Round 8 Ohm Mylar Speaker 92 dB 2 Watt 1.5" Wires

Features:

  • Input: 1.5 to 2 Watt (max.)
  • Impedance: 8Ω
  • Output SPL: 92 dB
  • Frequency Range: 550 Hz - 5000 Hz
  • Magnet Size: 0.65" Dia. x 0.08" H
  • Connection: (2) 1.5" Lead Wires, Red & Black with micro 2P connector
  • Dimension: 1.1" Dia. x 0.22" D

Dimensions & Appearance

Depth:0.22 in.
Width:0.22 in.
Diameter:1.10 in.
Length:1.10 in.

Input

Input Power (max) (W):2
Nominal Input Power (W):1.50

Output

Output:92 dB

Features

Impedance:8 Ohm
Magnet Size (Diameter x H) (inches):0.65 x 0.08
Frequency Range:550 Hz to 5000 Hz
Termination Style:Wires w/connector
,
