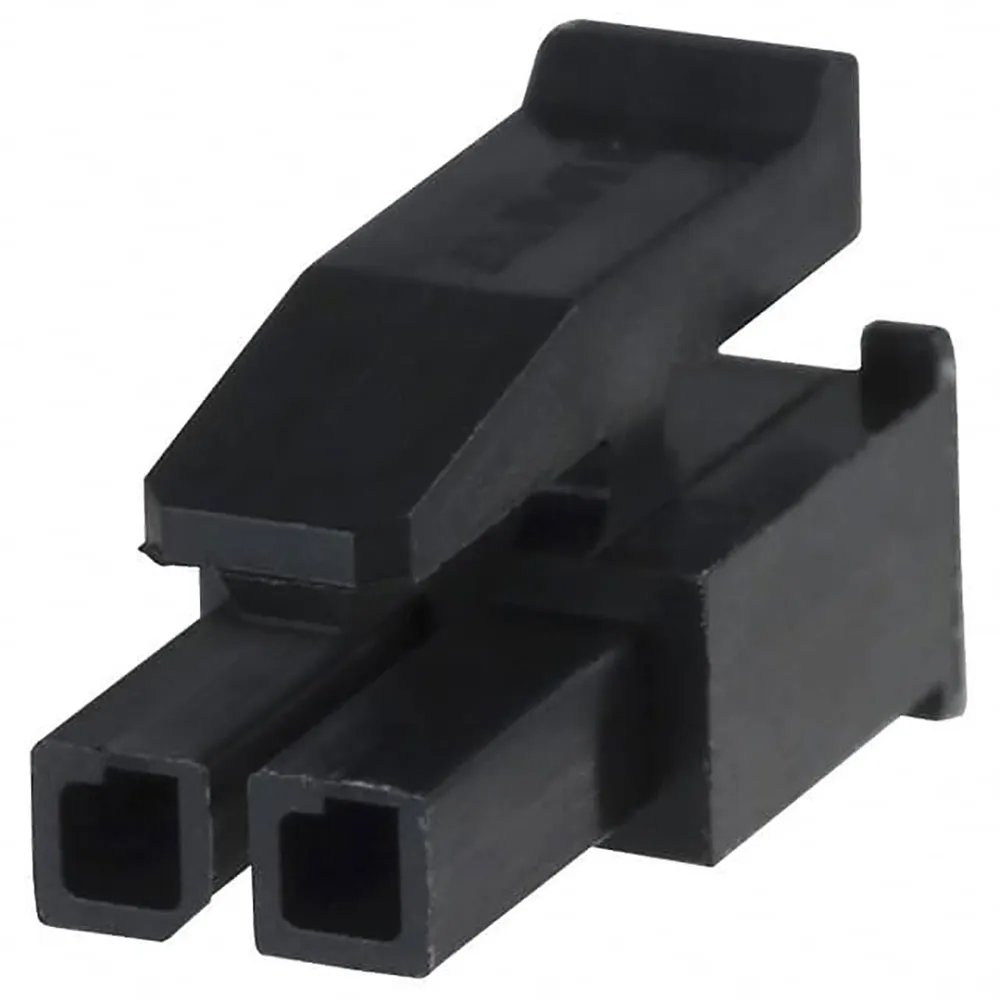

Micro MATE-N-LOK 2-Position Receptacle Housing for Female Sockets 0.118" (3mm) Free-Hanging Crimp

Specifications

  • Series: Micro MATE-N-LOK
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Pitch: 0.118" (3 mm)
  • Number of Positions: 2
  • Number of Rows: 1
  • Row Spacing: n/a
  • Number of Positions Loaded: None
  • Mounting Type: Free Hanging (In-Line)
  • Contact Termination: Crimp
  • Fastening Type: Latch Lock
  • Color: Black
  • Note: Contacts Not Included
  • Base Number: 1445022

Product Identification

Family:Micro MATE-N-LOK
Additional Feature:Latch Lock

Dimensions & Appearance

Mounting Style:Straight
Mounting Type:Free Hanging
Body/Shell Style:Receptacle

Features

Number of Positions:2
Number of Rows:1
Filter Feature:No
Mixed Contacts:NO
DIN Conformance:No
IEC Conformance:No
MIL Conformance:No
Empty Shell:Yes
Number of Contacts:2
Option:GENERAL PURPOSE
Contact Gender:Female Socket
Contact Finish - Mating:N/A
Contact Finish - Termination:N/A
Contact Material:N/A
Pitch:3 mm
Wire Gauge (AWG):N/A
Termination:Crimp
,
