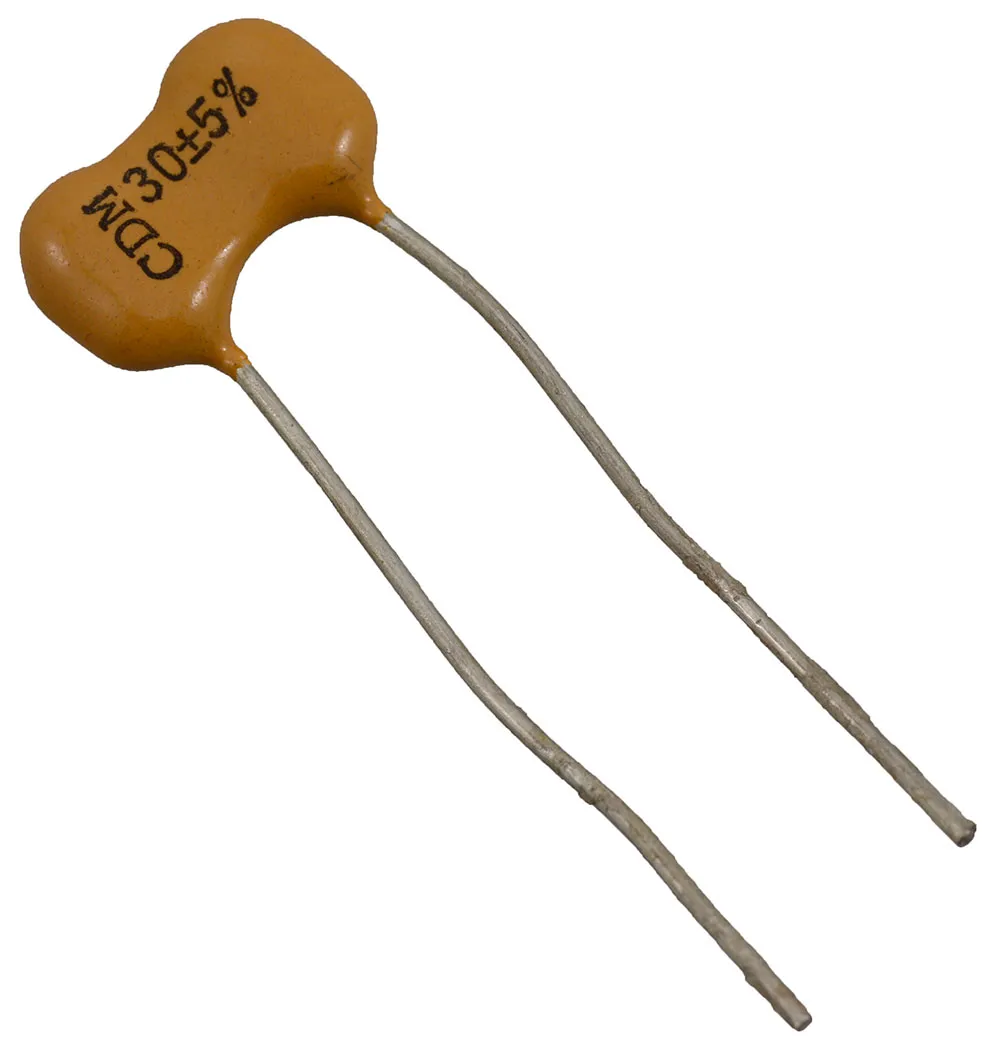

Mica Capacitor 30pF 5% 500V Radial

Specifications

  • Capacitance: 30 pF
  • Tolerance: ±5%
  • Voltage - Rated: 500 V
  • Dielectric Material: Mica
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Package: Radial
  • Lead Spacing: 0.232" (5.90 mm)
  • Features: General Purpose
  • Size: 0.449" L x 0.169" W (11.40 mm x 4.30 mm)
  • Height - Seated (Max): 0.358" (9.10 mm)

Dimensions & Appearance

Mounting:Through Hole
Depth:3.6 mm
Width:10.9 mm
Height:7.1 mm

Operating conditions

Maximum Operating Temperature:125°C
Minimum Operating Temperature:-55°C

Features

Tolerance:5%
Pitch:5.9 mm
Capacitance:30 pF
Voltage Rating:500 VDC
,
