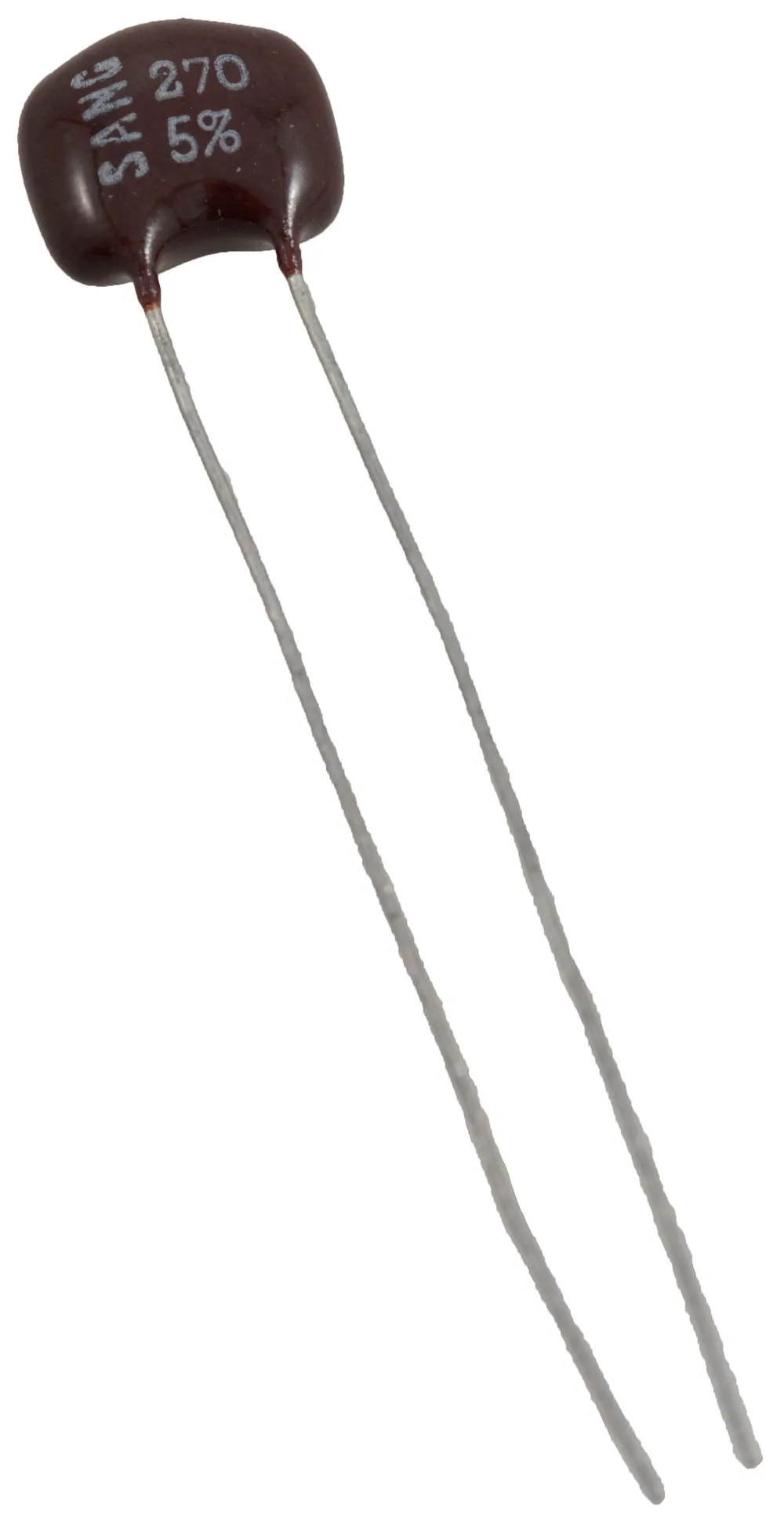

Mica Capacitor 270pF 5% 500V Radial Through Hole

Specifications

  • Capacitance: 270 pF
  • Voltage - Rated: 500 V
  • Tolerance: ±5%
  • Dielectric Material: Mica
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Package: Radial
  • Lead Spacing: 0.236" (6 mm)
  • Features: General Purpose
  • Size: 0.461" L x 0.201" W (11.70 mm x 5.10 mm)
  • Height - Seated (Max): 0.382" (9.70 mm)

Dimensions & Appearance

Mounting:Through Hole
Depth:4.4 mm
Height:7.4 mm
Width:8.5 mm

Operating conditions

Maximum Operating Temperature:125°C
Minimum Operating Temperature:-55°C

Features

Tolerance:5%
Pitch:4.3 mm
Capacitance:270 pF
Voltage Rating:500 VDC
,
