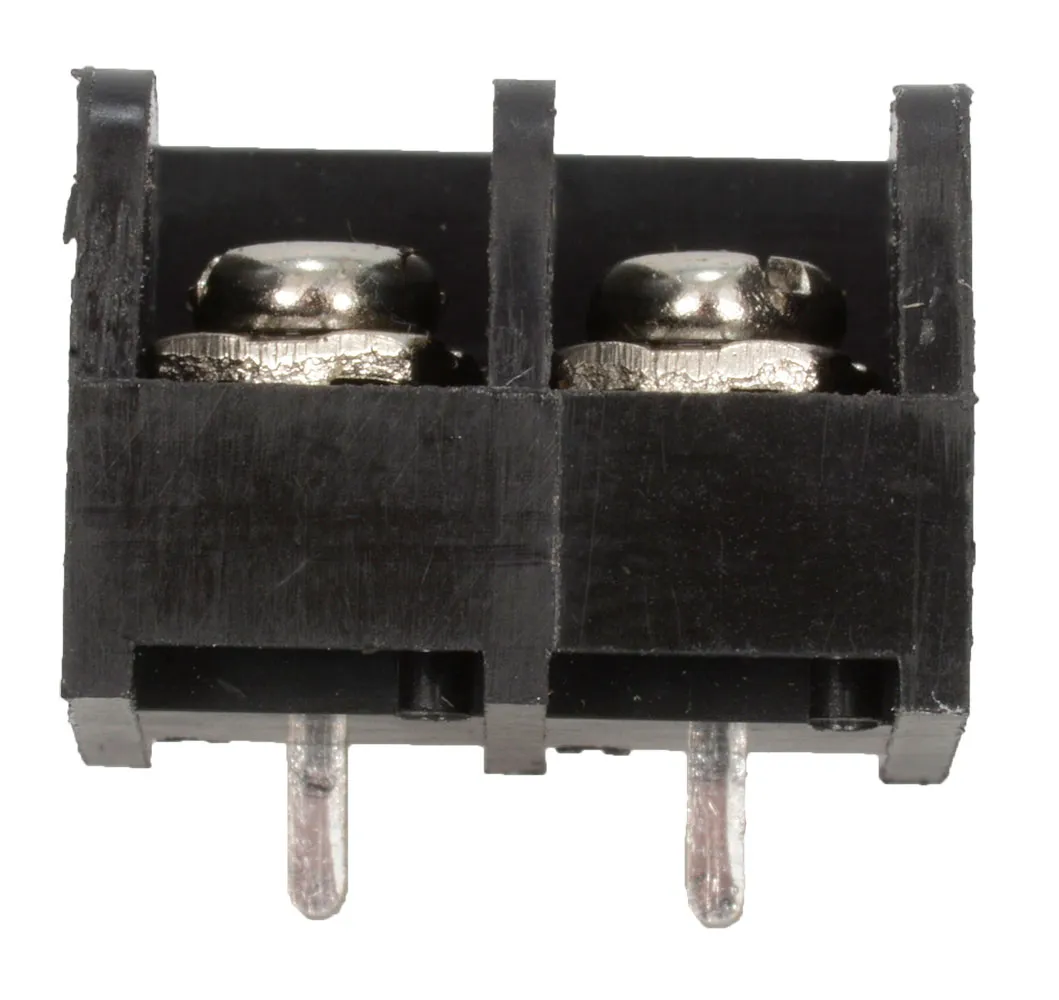

Metric Tri-Barrier Strip Connector 2 Circuit 0.325" (8.26mm) M3.5 Screws with Captive Plate 20A 300V

Specifications

  • Series: #4, Buchanan
  • Terminal Block Type: Barrier Block
  • Number of Circuits: 2
  • Number of Wire Entries: 2
  • Pitch: 0.325" (8.26mm)
  • Number of Rows: 1
  • Current Rating: 20A
  • Voltage Rating: 300V
  • Wire Gauge: 12-22 AWG
  • Top Termination: M3.5 Screws with Captive Plate
  • Bottom Termination: PC Pin
  • Barrier Type: 3 Wall (Tri)
  • Color: Black
  • Terminal Screw Material: Copper alloy
  • Terminal Screw Finish: Tinned
  • Mounting Type: Through Hole
  • Operating Temperature: 105°C
  • Material - Insulation: Polyamide (PA66), Nylon
  • Material Flammability Rating: UL94 V-0

Product Identification

Product Type:Single Row Tri-Barrier Strip
Manufacturer Series:DT39

Dimensions & Appearance

Depth:15.2 mm
Length:17.75 mm
Mounting:Through Hole
Body Orientation:Straight

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Features

Number of Positions:2
Number of Rows:1
Housing Color:Black
Contact Material:Brass
Top Termination:Screw, M3.5
Bottom Termination:PC Pin, Offset, w/o Flange
Pitch:0.325 in., 8.25 mm
Housing Material:Polyamide
Contact Plating:Tin
Wire Gauge (AWG):12-22
Voltage Rating:300 VAC
Current Rating:20 A
,
