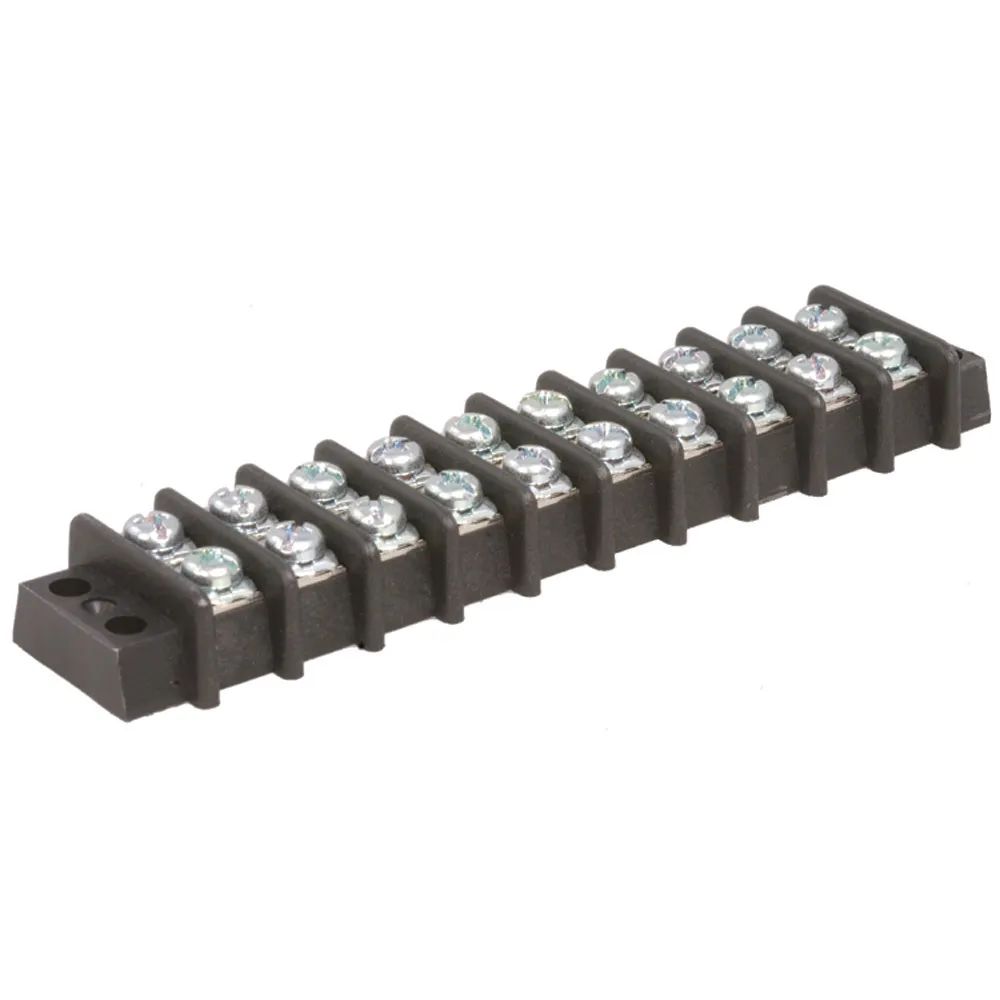

Metric 10 Contact Dual Row Dual Wall Terminal Barrier Block 9.53mm Pitch
Features
- Positions: 10
- Pitch: 0.375" (9.53mm)
- Wire Size: 12-18 AWG
- Length: 112mm
- Voltage: 600V
- Contact Plating: Nickel
- Screws: M3
Product Identification
Product Type:Dual Row Barrier Strip
Manufacturer Series:GGE 10
Dimensions & Appearance
Depth:19.5 mm
Length:112 mm
Mounting:Chassis, Panel
Body Orientation:Straight
Operating conditions
Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C
Features
Number of Rows:2
Housing Color:Black
Top Termination:Screw, M3.5
Housing Material:Polyamide 66
Bottom Termination:Open Bottom
Number of Positions:10
Contact Material:Brass/Steel
Contact Plating:Nickel
Pitch:0.375 in., 9.53 mm
Wire Gauge (AWG):12-22
Voltage Rating:600 VAC
Current Rating:10 A
