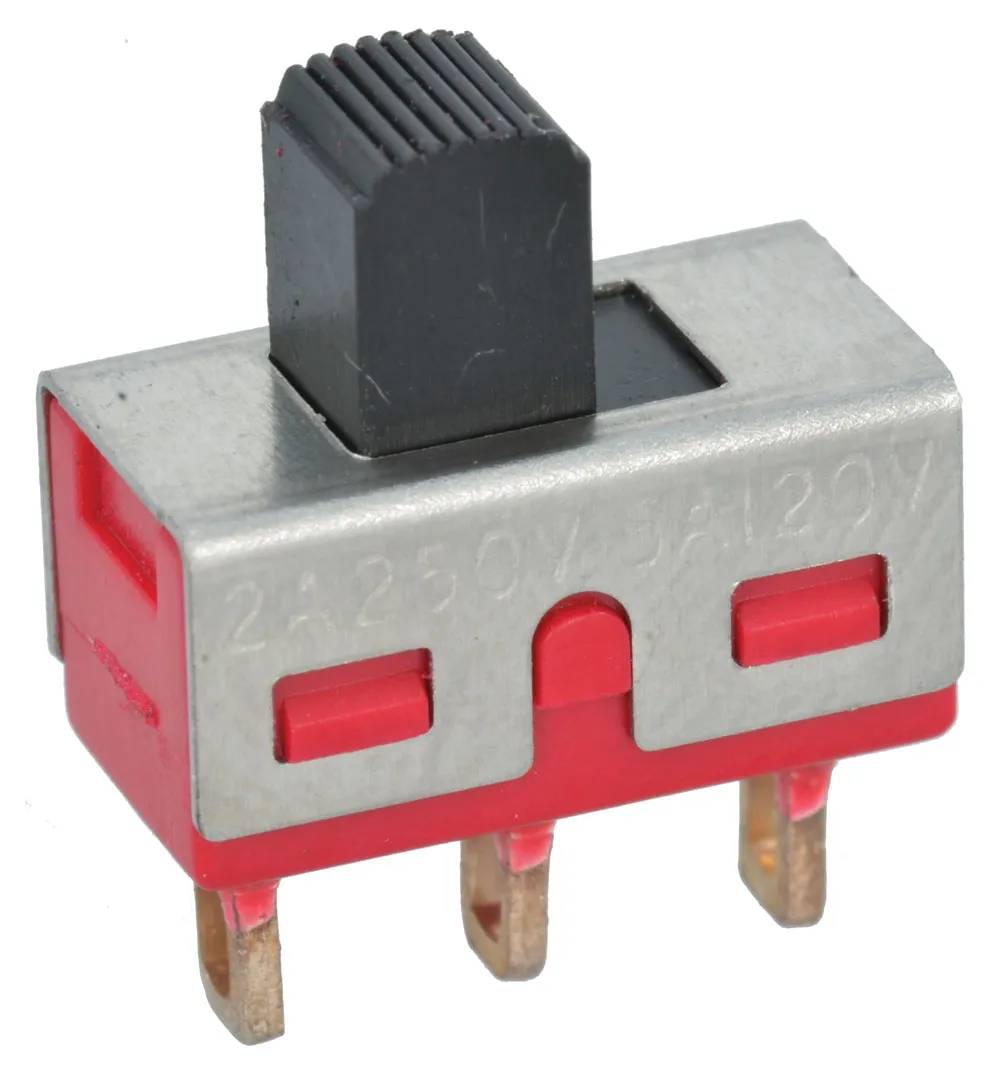

SPDT ON-NONE-ON Metal Slide Switch
Specifications
- Contact Form: SPDT
- Switch Function: ON-NONE-ON; ON-ON
- Contact Rating: 5A @ 120, 28 VDC & 2A @ 250
- Dimensions (L X W X D) inches: .50 x .26 x .41
- Number of Pins: 3
- Terminal Type: Solder lug
Dimensions & Appearance
Depth:0.61 in.
Width:0.26 in.
Height:0.55 in.
Length:0.5 in.
Color:Red
Features
Pins:3
Color - Actuator/Cap:Black
Lead Pitch:0.18 in.
Housing Material:Metal
Switch Function:ON-ON
Contact Form:SPDT
Contact Rating:5 A @ 120 VAC, 5 A @ 28 VDC, 2 A @ 250 VAC
Actuator Type:Top Slide
