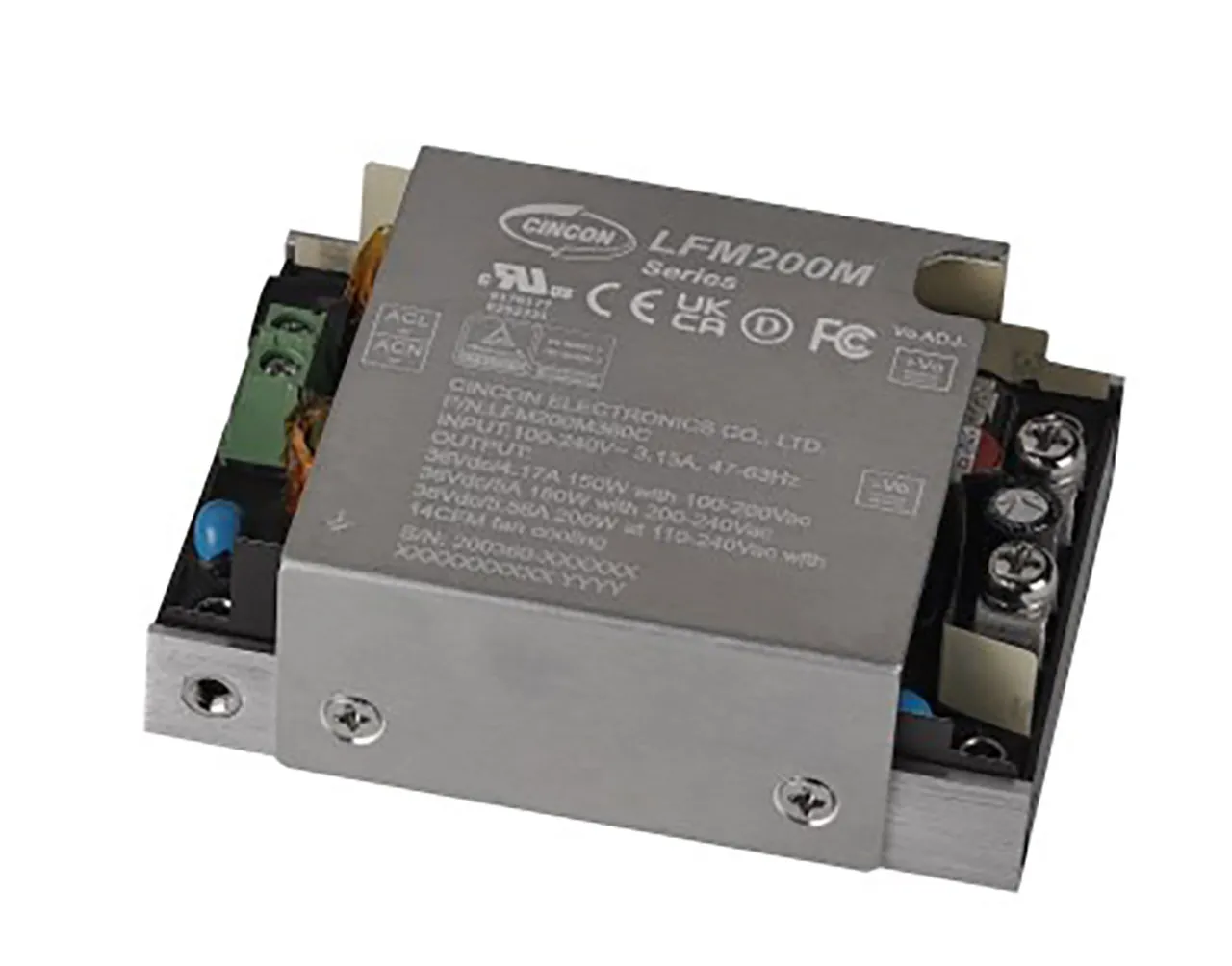

Medical Power Supply with Cover 200W 30V 3.67A Not Cooled to 6.66A with Fan Threaded Holes

Features

  • Universal Input Range 85~264Vac
  • High Efficiency up to 94%
  • Class I & Class II
  • 25.4mm Low Profile Package
  • No Load Input Power Consumption <0.3W
  • 48V, 54V No Load Input Power Consumption <0.4W
  • Approval Safety IEC/EN/UL 60601-1 2 MOPP
  • Approval Safety IEC/EN/UL 62368-1
  • Meets IEC/EN 60335-1
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • High Power Density 28.35W/Inches3
  • Active PFC Function

Product Identification

Type:Auto Switching SMPS
Product Type:Medical AC-DC Power Supply SMPS with PFC
Manufacturer Series:LFM200M

Compliance

Agency Approvals: CE, CUL, EN, FCC, TUV, UKCA, UL

Dimensions & Appearance

Style:Medical Open Frame
Color:Gray
Height:1 in.
Width:2.28 in.
Length:3.09 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 240 VAC
Maximum Input Current:3.15 A

Output

Number of Outputs:1
Output Connector Diameters:M4
Output Connector Type:Screw Terminals
Output Voltage:30 VDC
Additional Output Voltages (VDC):N/A
Output Current:6.66 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4250V
Power Rating:200 W
,
