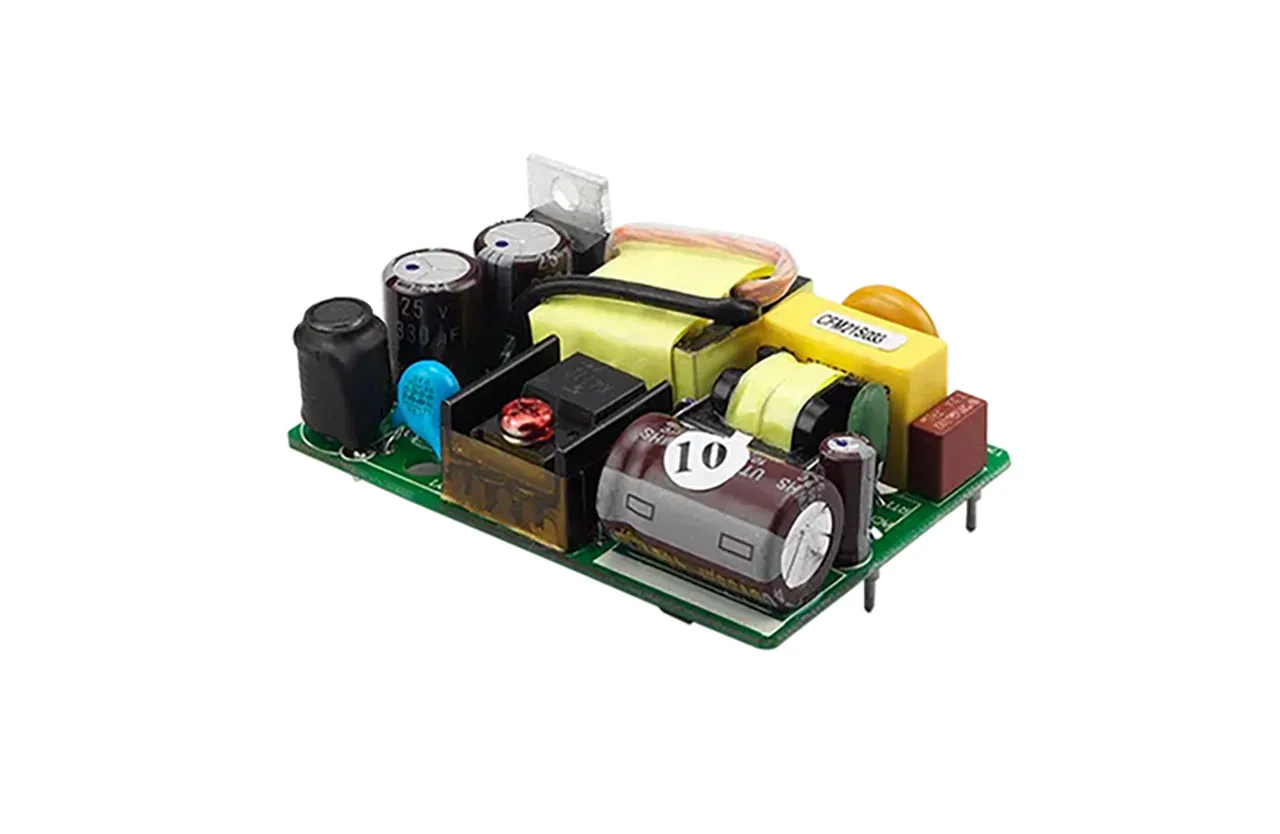

Medical Open Frame Power Module 12V 1.7A UL60601-1

Features

  • Universal Input Range 90 to 264Vac
  • Miniature Size Low Profile 0.8"
  • Industry-Standard Pin Out
  • Efficiency to 85%
  • Option for On-Board, Connecter, Screw Terminal or Encapsulated type
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • No Load Input Power < 0.3W
  • Leakage Current < 0.1mA
  • IEC/EN/UL 60601-1 Medical Safety Approved

Overview

Medical Open Frame Power Module 12V 1.7A UL60601-1.

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:CFM21
Product Type:Green Medical AC to DC Power Module SMPS

Compliance

Agency Approvals: CE, CUL, EN, TUV, UL

Dimensions & Appearance

Color:a, n
Style:Medical Open Frame
Height:0.80 in.
Width:1.60 in.
Length:2.38 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.50 A

Output

Number of Outputs:1
Output Connector Type:JST VHR-4N or equiv.
Output Connector Diameters:N/A
Output Voltage:12 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.70 A

Features

PFC Function:No
Efficiency:83%
Power Rating:20 W
,
