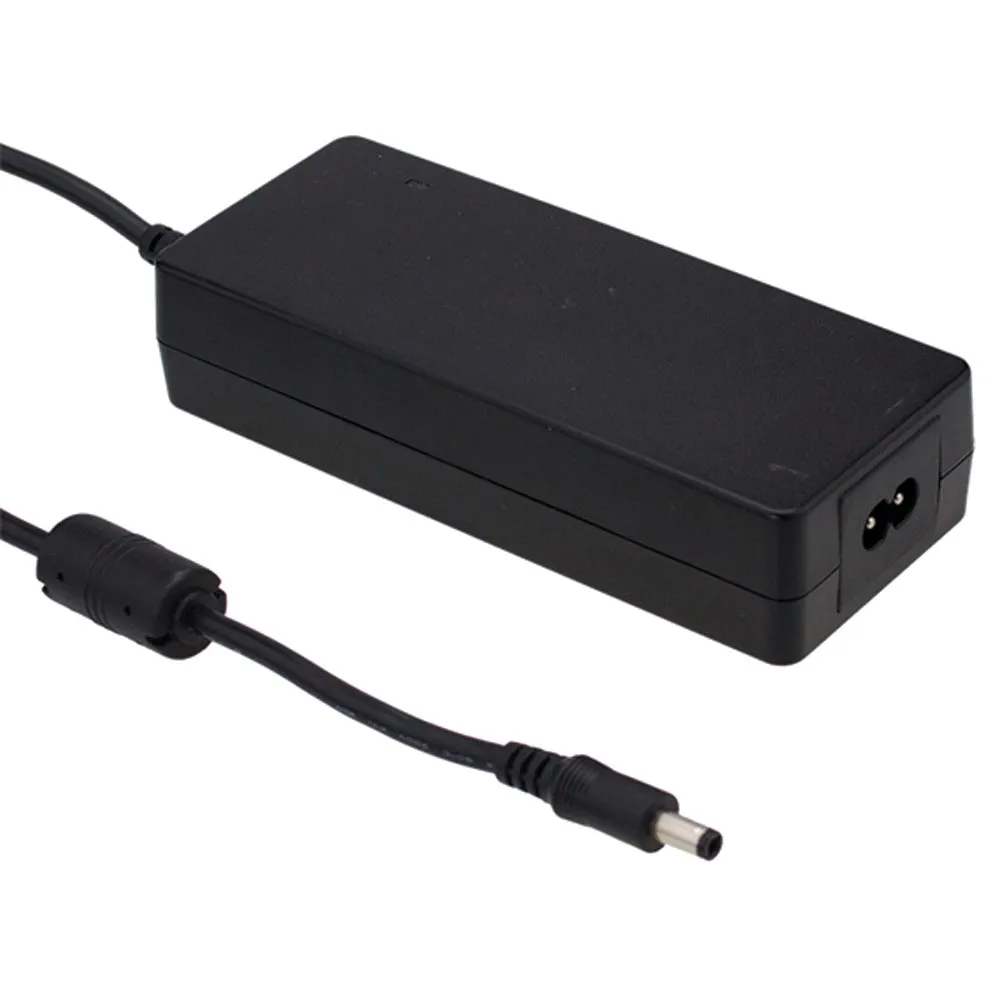

Medical AC to DC Switching Table Top Power Supply 19 Volts 4.74 Amps 90 Watts

19 Volts @ 4.74 Amps

Specifications

  • Output Power (W): 90.06
  • Size (L x W x H) inches: 5.71 X 2.36 X 1.26
  • Ripple & Noise (mV p-p): 180
  • Load Regulation (±): 4%
  • Line Regulation (±): 1%
  • Efficiency: 89%
  • Agency Approvals: UL/CUL/CE/FCC/TUV
  • Universal AC input / Full range
  • Built in active PFC function, PF>0.91
  • Protections: short circuit, over voltage, over temperature, overload
  • 2 pole AC inlet IEC320-C8
  • Fully enclosed plastic case
  • Medical safety approved(2 x MOPP between primary and secondary)
  • Class II power (w/o ground pin)
  • LED indicates power on
  • No load power consumption <0.15 watts
  • ERP step 2 compliant (level V)
  • Meets EISA 2007 Energy Independence and Security Act
  • 100% full load burn in tested
  • 3 year warranty
  • AC power cord not included (recommend 6 ft. 2-Conductor AC power cord P/N 189587)

Product Identification

Type:Switching
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:GSM90

Compliance

Agency Approvals:UL, CUL, TUV, CB, CE, FCC, EN, EAC, UKCA

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.26 in.
Width:2.36 in.
Length:5.71 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Packaging

Packaging:Carton

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1.30 A

Output

Number of Outputs:1
Output Connector Diameters:2.5mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Voltage:19 VDC
Additional Output Voltages (VDC):N/A
Output Current:4.74 A

Features

Polarity:Center Positive
Product Note:Level VI
Minimum Isolation Voltage:4000V
AC Power Cord:NOT INCLUDED, RECOMMEND 189587
Efficiency:89%
Power Rating:90 W
,
