Mechanical RF Switch System 2 SPDT Switches DC-50 GHz SMA Female Connector

Features

• Maximum frequency: 50 GHz
• 2 SPDT switches
• SCPI Controllable via VISA and EasySSU software
• RF connector: 2.4mm female
• USB Connectivity
• SPDT is a Single Pole, Dual Throw switch where 1 common terminal is switched to 1 of the 2 numbered terminals
• Size: W×H×D=153mm W x 62.4mm H x 137.5mm D

Overview

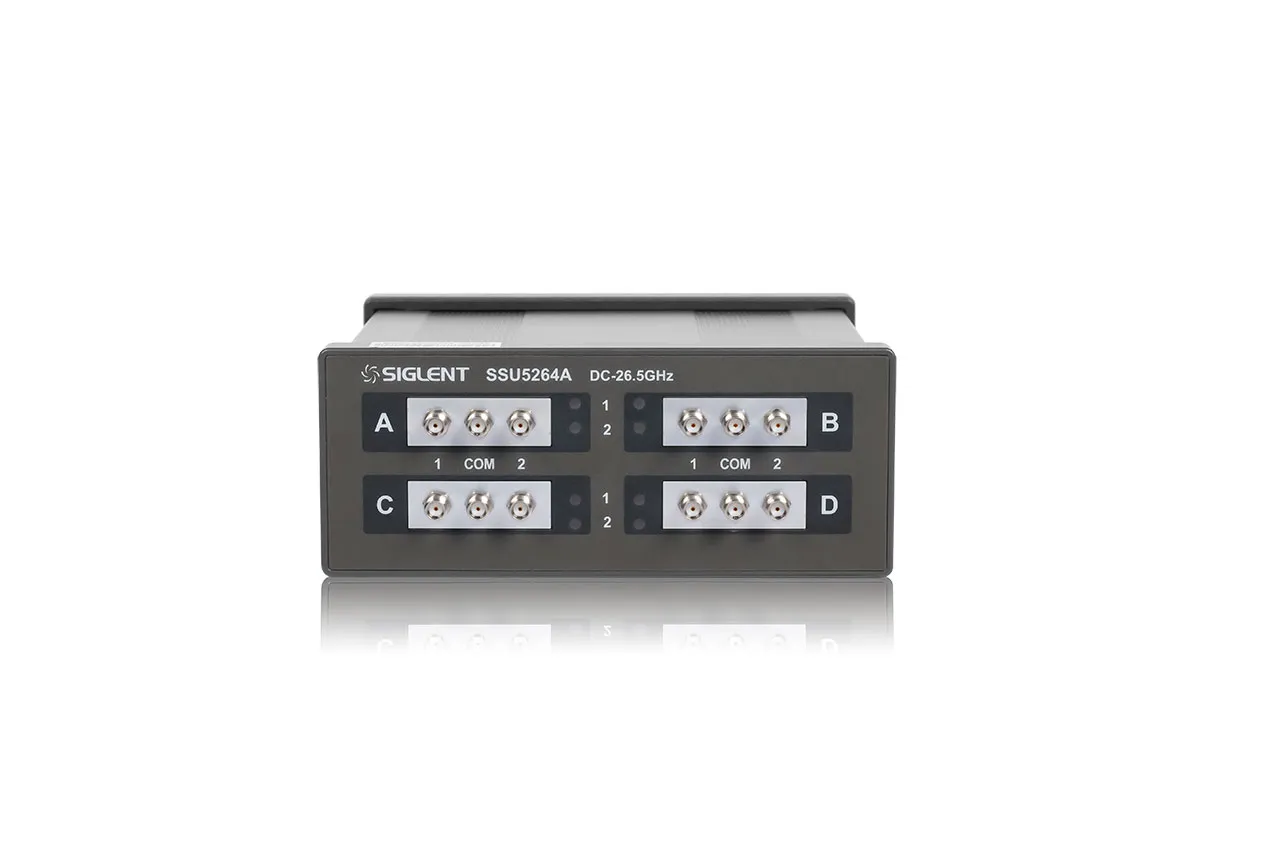

To meet the multi-port test requirements of microwave and millimeter wave systems, SIGLENT has introduced the SSU5000A series mechanical switches with frequency range up to 50 GHz. The SSU5000A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinarily short switching time. It contains one to four independent single-pole double-throw mechanical switches with SMA or 2.4 mm connectors, or single-pole six-throw mechanical switches.
