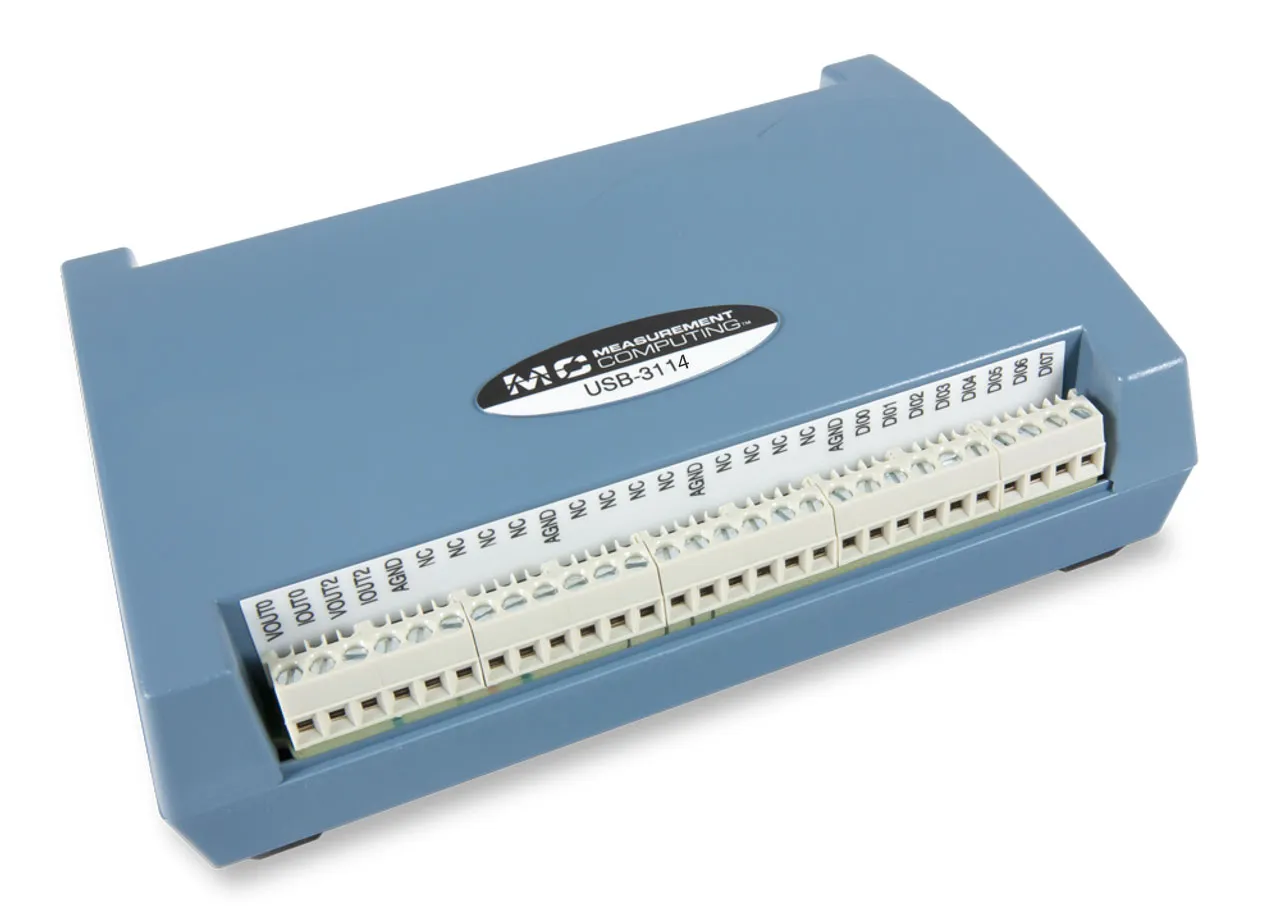

MCC USB-3114: 16 Channel Analog High-Drive Voltage and Current Output USB Devices 8 Digital I/O & 1 Counter Input

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The USB-3114 features 16 analog outputs, 8 digital I/O, and one 32-bit counter input. Each channel is software-selectable for either a bipolar voltage output range of ±10 V or a unipolar range of 0 V to 10 V. Channel outputs can be updated individually or simultaneously. Each DAC controls a voltage/current channel pair simultaneously. Each channel pair can be updated individually or simultaneously.

Software support includes QuickDAQ, an out-of-the-box application for data logging, visualization, and signal generation. Two QuickDAQ upgrades are available and offer FFT analysis functions. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, and Python™.

Features

• 16 analog outputs
• 16-bit resolution
• 100 S/s update rate
• USB-3114: Voltage output ±10 V, 0 V to 10 V.
• Eight digital I/O
• One counter input

What's Included

• USB-3114
• USB cable
• Field Changeable AC Input Plug (included with USB-3114, USA style is included, other types may be purchased separately)
• Printed insert: DAQami Quick Start
• MCC packaging assembly/foam, etc.

Downloads & Resources

Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications. For a full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming. DASYLab can be purchased directly from MCC. For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, and Python™.

• MCC Knowledgebase
• MCC DAQ Software
