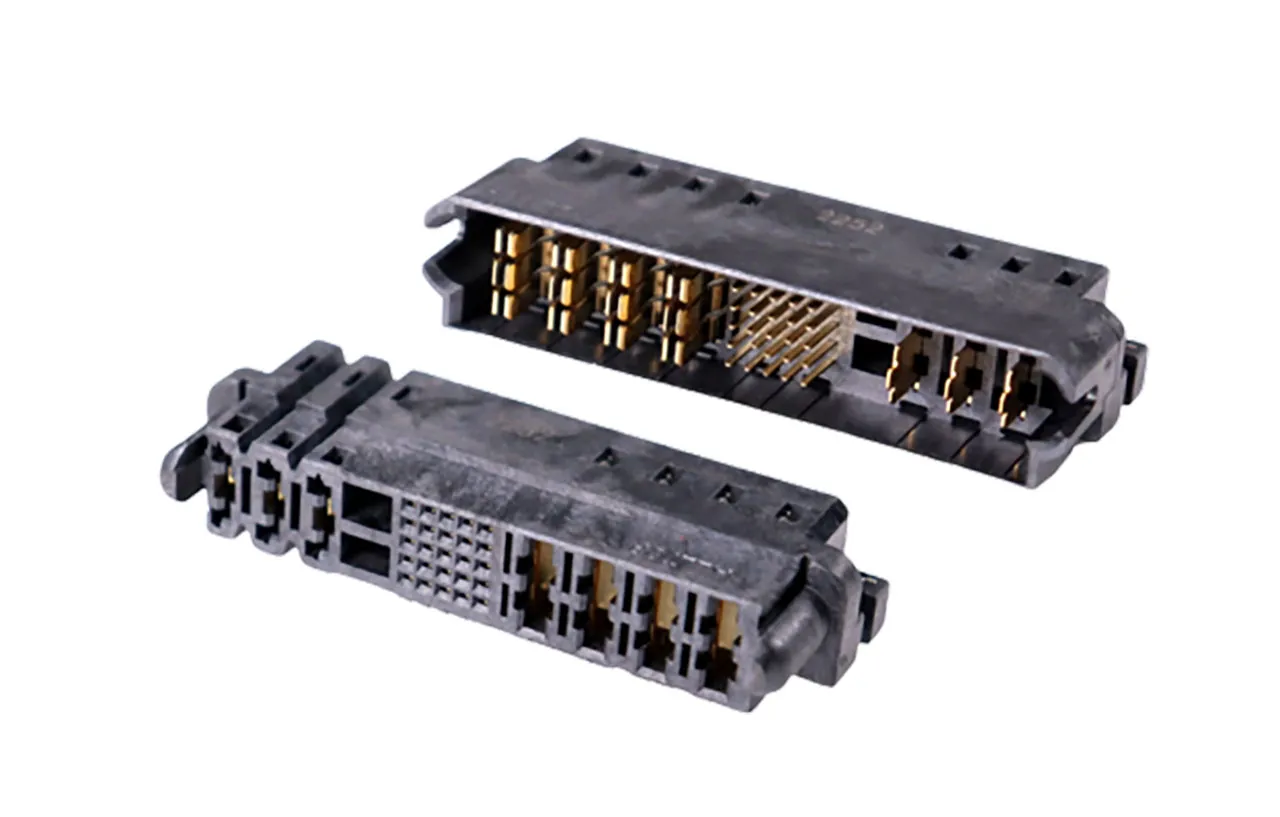

Mating Connector C27209 for NCP-3200 Power Supplies

Features

• ALLTOP C27209-10749-Y
• Mating Connector C27209
• For MEAN WELL NCP-3200 Power Supplies
• Orientation: Straight
• Male 3LP/45A/pin+25s+4HP/140A/pin
• DC/AC power and signal pins combined hot-swappable terminals
• Rated current: high power 4 pins (115A/pin), low power 3 pins (50A/pin), signal 25 pins (1.5A/pin)
• Rated voltage: high power and low power pin 500 VAC/VDC, signal pin 300 VAC/VDC
• Fool-proof mechanism achieves better accuracy and retention to prevent falling off
• Comply with UL certification and heavy industry grade EMS standard
• Can be used in DC/AC power supplies, servers, network communications, switches, and uninterruptible power systems
