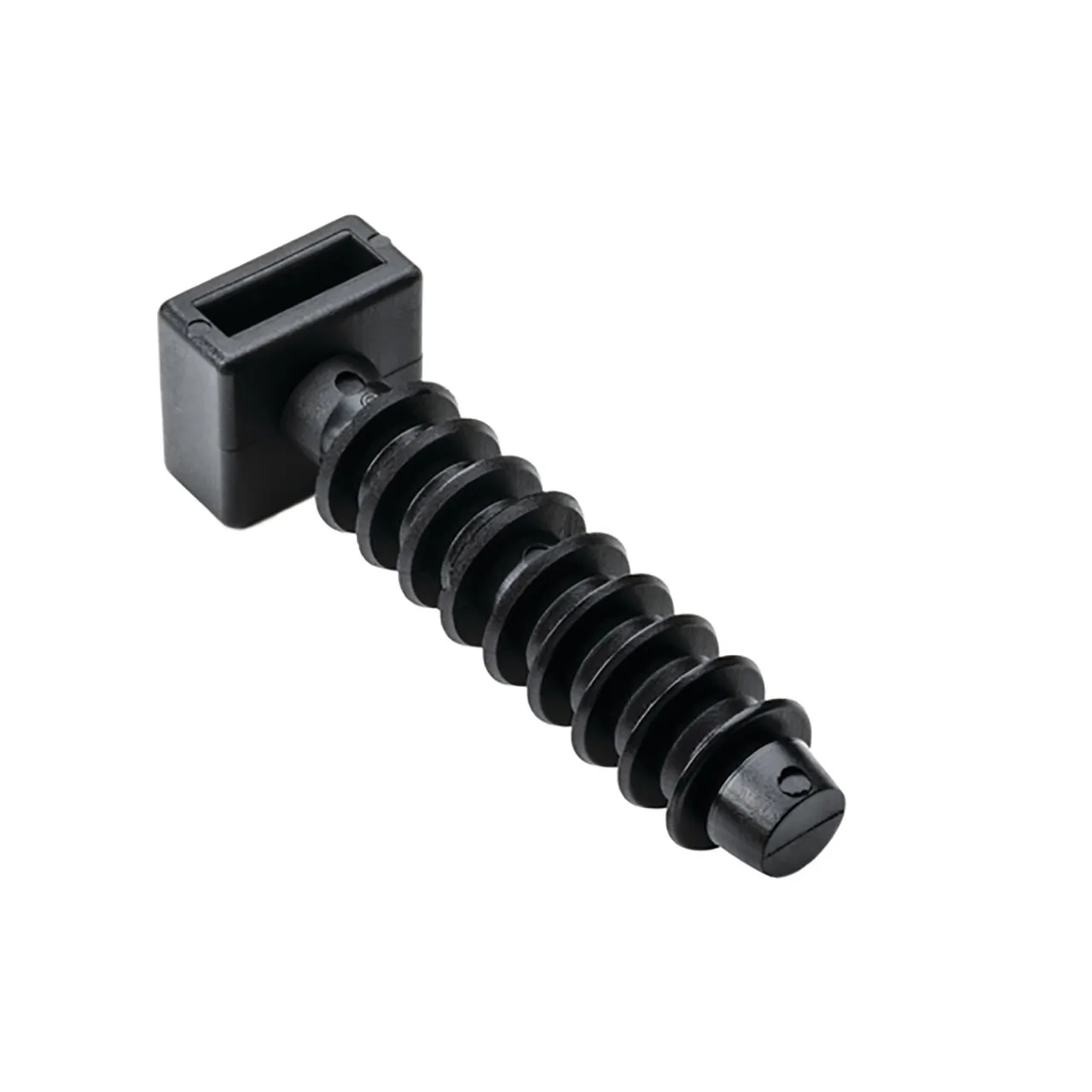

Masonry Cable Tie Mount, 1.24"L, 0.25" Hole Dia, 0.20" Max Cable Tie Width, PA66STHS, Black, 100 per Package

Features

• Masonry Mounts provide a permanent solution when fastening wire and cables to masonry surfaces. The mounts have easy installation into predrilled holes allowing for faster use.
• Product Type: Masonry Mounts

Technical Specifications

• Material: Polyamide 6.6, super tough, heat stabilized (PA66STHS)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Cable Tie Width Max. (Imperial): 0.20"
• Fixation Method: Threaded bolt
• Fixing Hole Depth Min. (Imperial): 1.0"
• Fixing Hole Depth Min. (Metric): 25.4 mm
• For Cable Ties: T18 - T50
• Height H (Imperial): 0.37"
• Height H (Metric): 9.40 mm
• Length L (Imperial): 1.24"
• Length L (Metric): 31.5 mm
• Mounting Hole Diameter D (Imperial): 0.25"
• Mounting Hole Diameter D (Metric): 6.35 mm
• Mounting Hole Diameter D Max. (Metric): 6.35 mm
• Mounting Hole Diameter D Min. (Metric): 6.35 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 1.0"
• Panel Thickness (Metric): 25.4 mm
• Recommended Application Tool: 110-80003
• Weight (Lbs) per 1 Content Unit without Packaging: 0.002425084882
• Width of Fixing WF (metric): 7.7 mm
• Width W (Imperial): 0.375"
• Width W (Metric): 9.5 mm
• Width W2 (Imperial): 0.22"
• Width W2 (Metric): 5.6 mm
• Width W3 (Imperial): 0.308"
• Width W3 (Metric): 7.8 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306149125

Overview

HellermannTyton Masonry Mounts provide a permanent method of attaching wire and cable to masonry surfaces. Masonry mounts simply tap into predrilled holes and can be used for indoor and outdoor applications.
