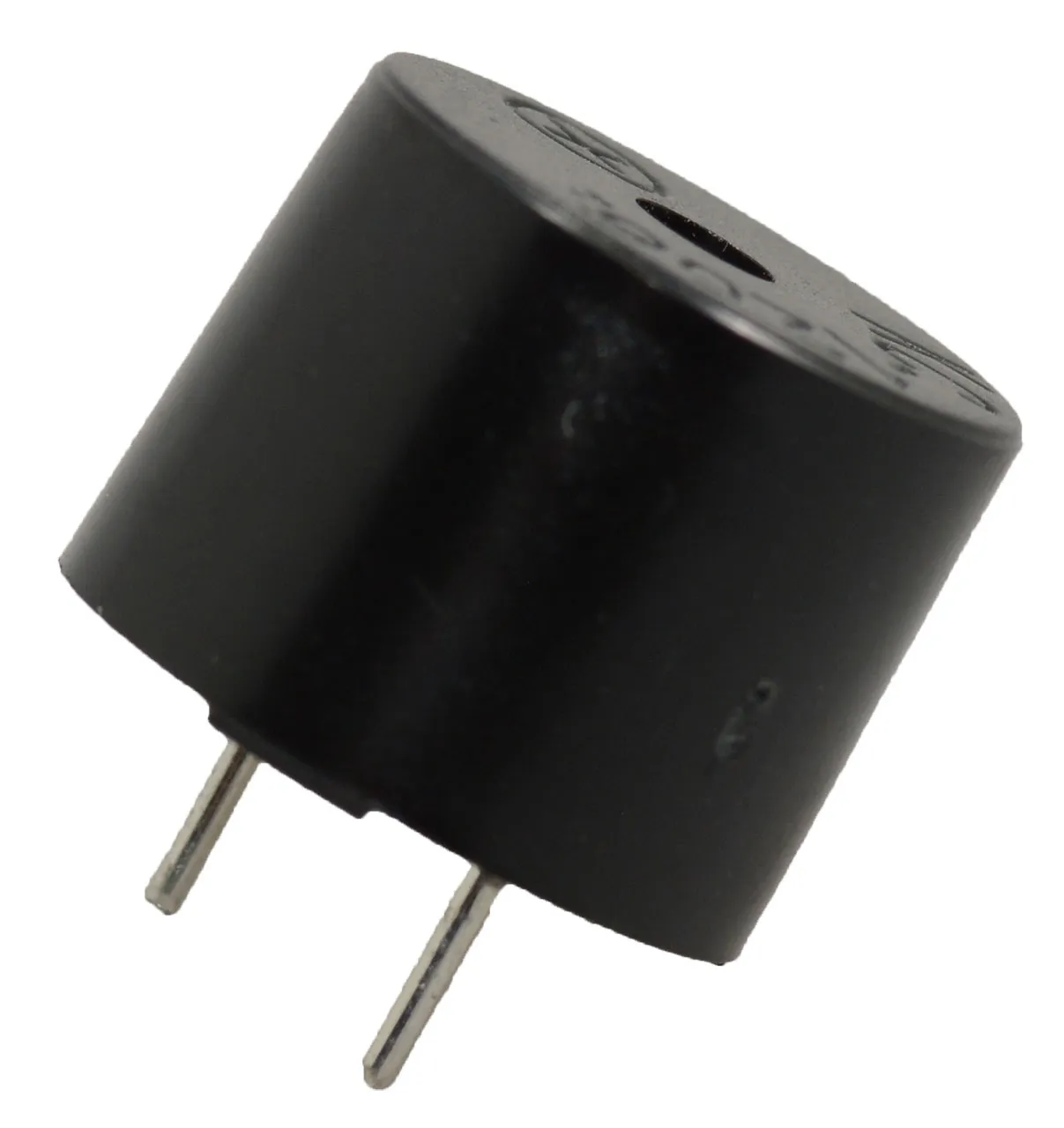

Magnetic Transducer Single Tone 2400 Hz 12V Externally Driven 85dB

  • Driver Circuitry: Transducer, Externally Driven
  • Input Type: Peak-Peak Signal
  • Voltage - Rated: 12 V
  • Voltage Range: 8 to 15V
  • Frequency: 2.4 kHz
  • Technology: Electromechanical/Magnetic
  • Operating Mode: Single Tone
  • Sound Pressure Level (SPL): 85 dB @ 12 V, 10 cm
  • Current - Supply: 40 mA
  • Port Location: Top
  • Operating Temperature: -30°C to 80°C
  • Ratings: Washable
  • Mounting Type: Through Hole
  • Termination: PC Pins
  • Size: 0.472" Dia. (12 mm) x 0.386" (9.1 mm)

    • Dimensions & Appearance

    Diameter:0.47 in.
    Height:0.39 in.

    Output

    Output:85 dBA

    Features

    Voltage Range (Vp-p):N/A
    Frequency:2400 Hz
    Voltage Rating:12 V
    Current Rating:40 mA
    ,
