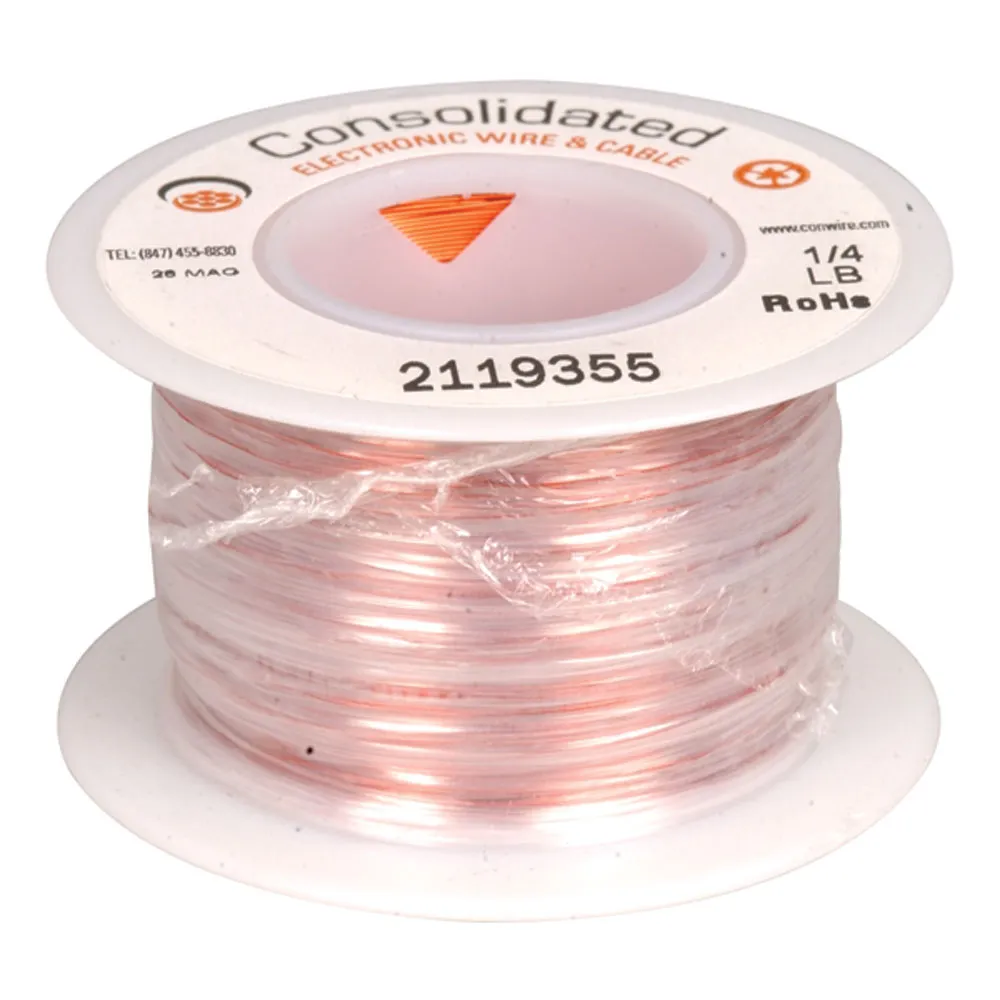

28 AWG Plain Enamel Magnet Wire - 1/4 Lb (520 ft.)

Plain Enamel Magnet wire is used for many custom winding applications including: headphones, loudspeakers, coils, inductors, transformers, motors, ballasts, relays, and timers where creating a magnetic field is required. It is solid bare copper with a Polyurethane/Polyamide (nylon) insulation.

Features:

1/4 pound

520 feet

28 AWG

Solid bare copper conductor

Polyurethane / Polyamide (Nylon)

(PE) plain enamel magnet wire

Nominal outside diameter (OD): 0.0136"

Solderable @ 680°F (360°C)

Temperature Range: -22 to 311°F (-30 to 155°C)

Approvals: MIL JW-1177/42, MW 80-C, Class 155
