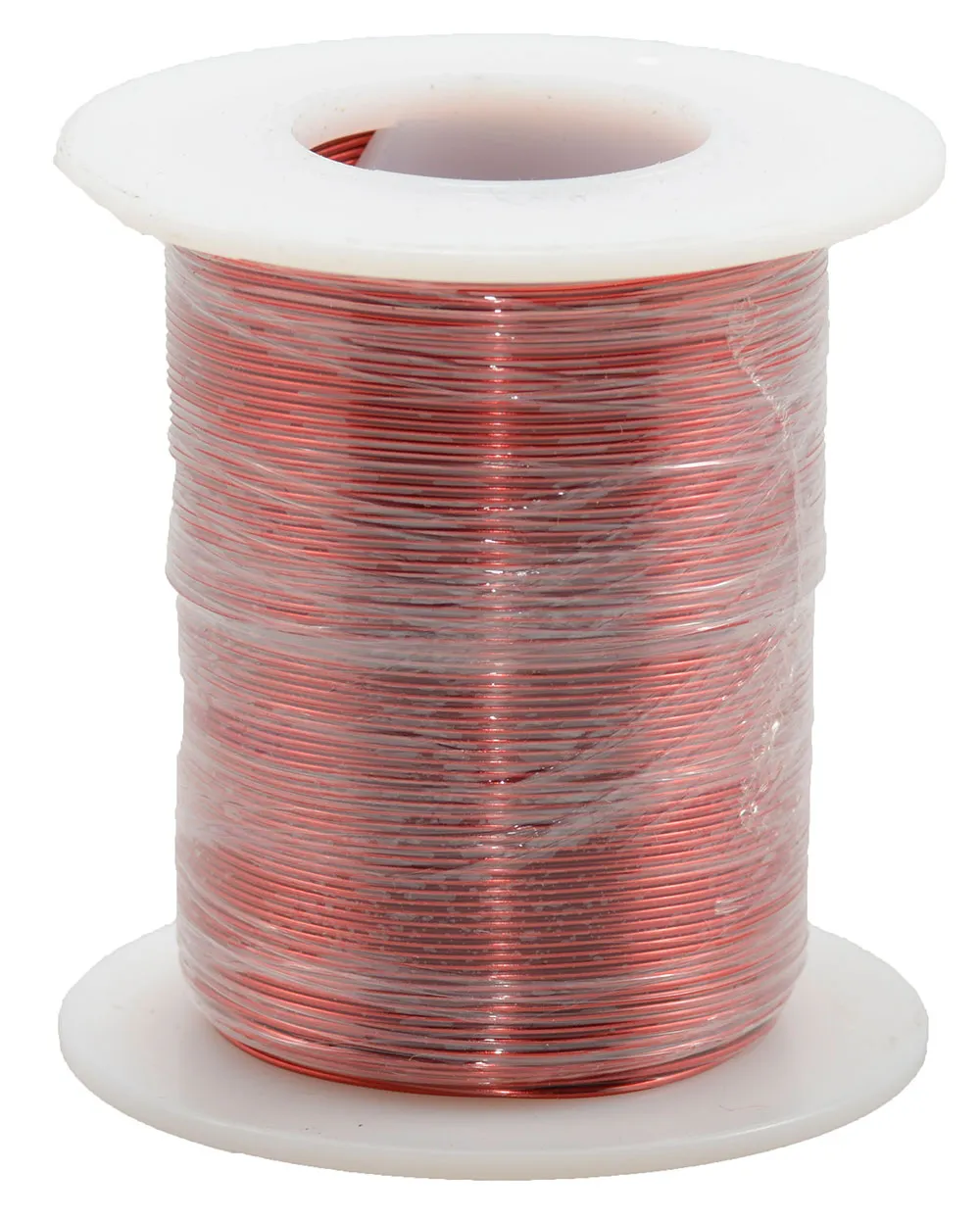

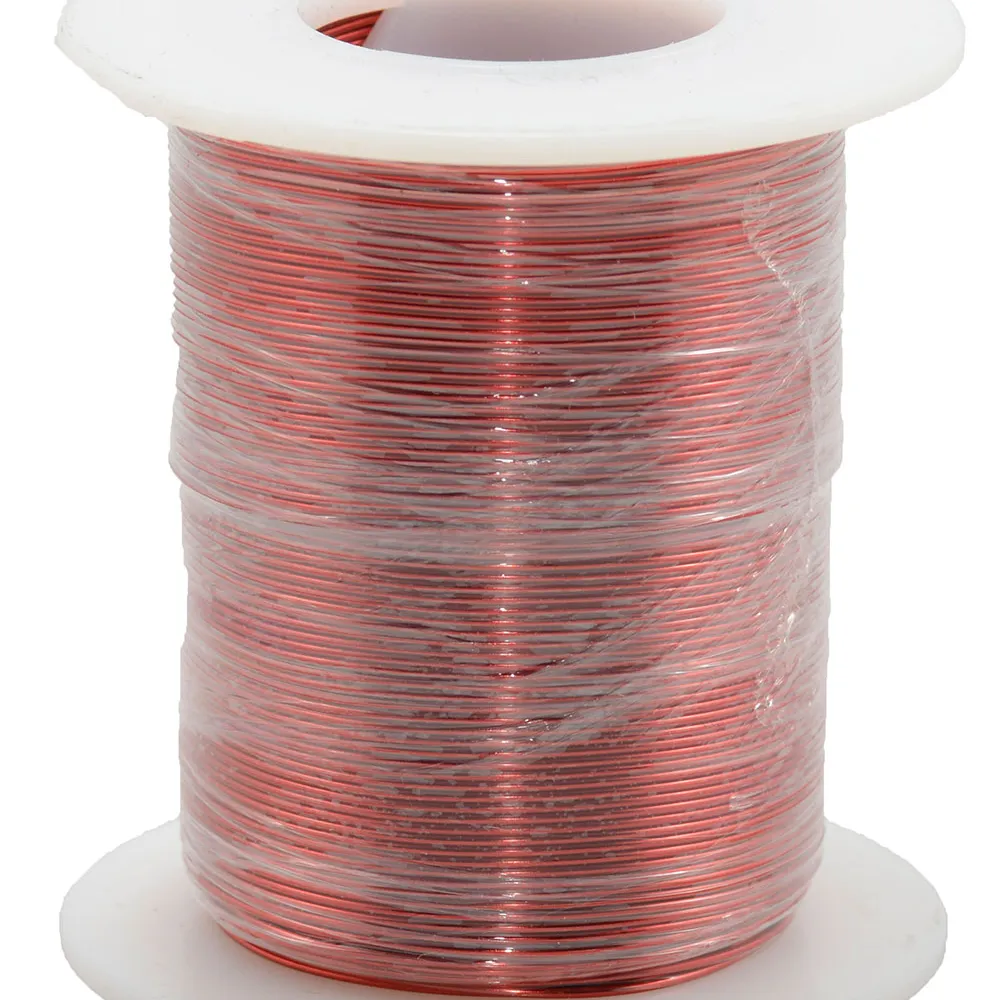

Magnet Wire 22 AWG Plain Enamel 1/2 Lb. (250 ft.)

Plain Enamel Magnet wire is used for many custom winding applications including: headphones, loudspeakers, coils, inductors, transformers, motors, ballasts, relays, and timers where creating a magnetic field is required. It is solid bare copper with a Polyurethane/Polyamide (nylon) insulation.

Features:

• 1/2 pound
• 250 feet (approx.)
• 22 AWG
• Solid bare copper conductor
• Polyurethane / Polyamide (Nylon)
• (PE) plain enamel magnet wire
• Nominal outside diameter (OD): 0.0265"
• Solderable @ 806°F (430°C)
• Temperature Range: -22 to 266°F (-30 to 130°C)
• Approvals: MIL JW-1177/9, MW 28-C, Class 130
