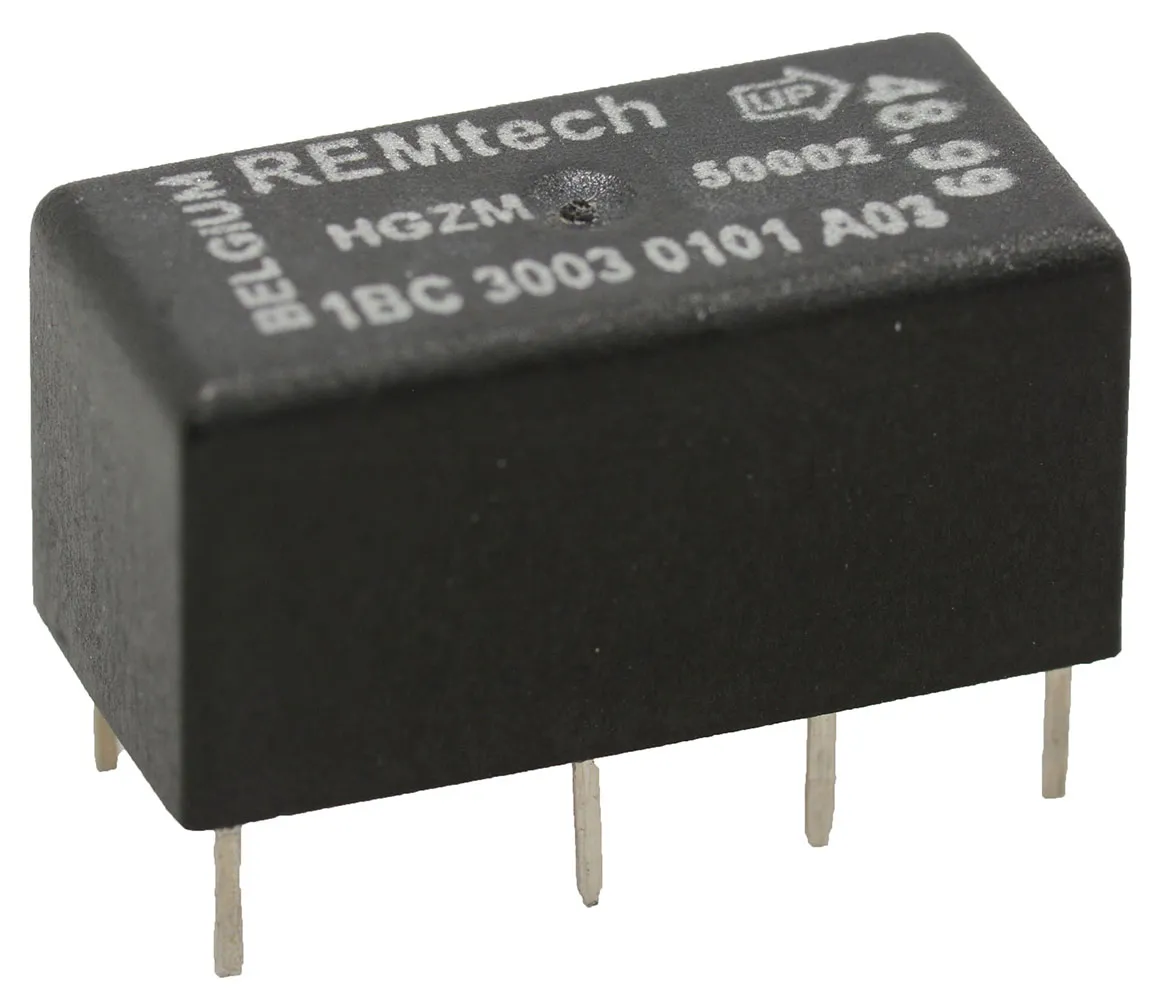

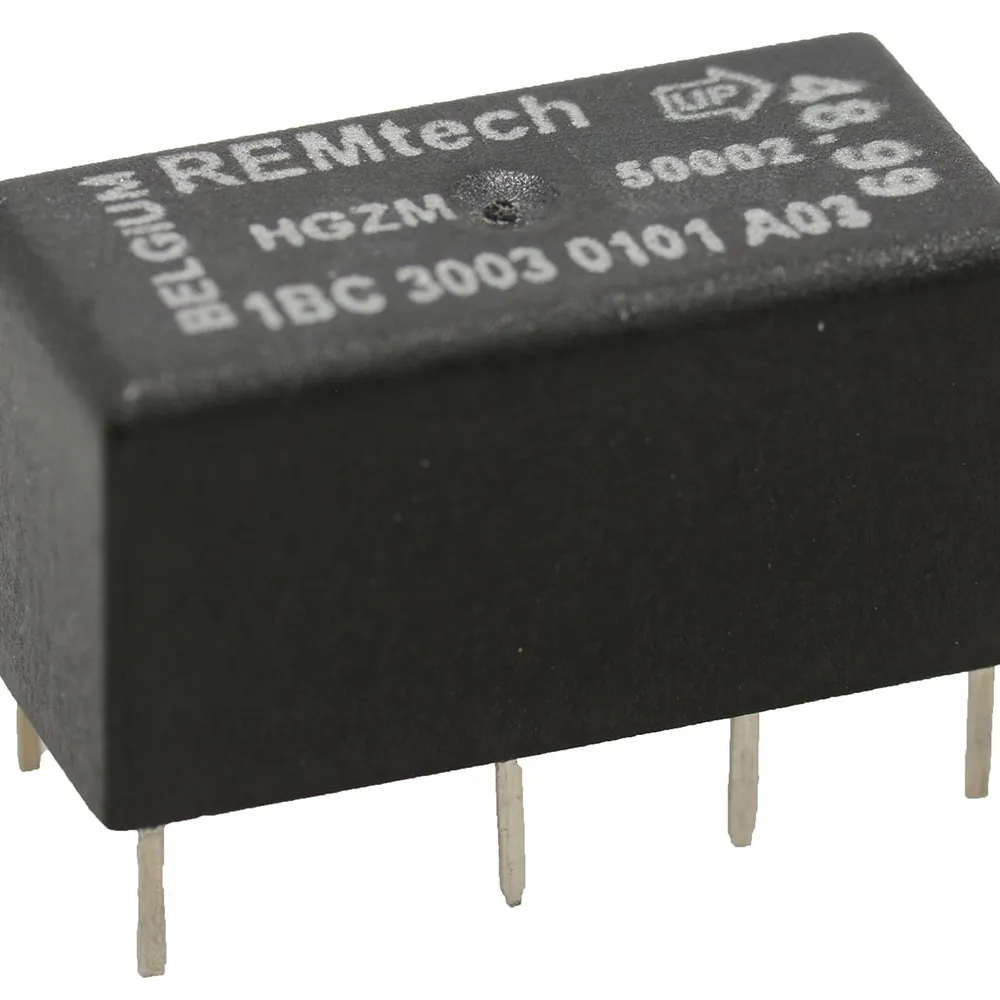

Low-power DPDT Relay 5VDC 2A 44 Ohms
Features
- Low coil power
- FCC Part 68 Compatible
- DPDT
- Stable contact resistance
- High pin to pin isolation
- Wide switching range
- 2A UL/CSA Rating
- Sealed construction
Dimensions & Appearance
Height:0.39 in.
Width:0.38 in.
Length:0.79 in.
Features
Coil Voltage:5 VDC
Pins:8
Relay Construction:Non-Latching
Coil Resistance:44 Ohm
Contact Form:DPDT
Current Rating:2 A
Voltage Rating:500 VDC
