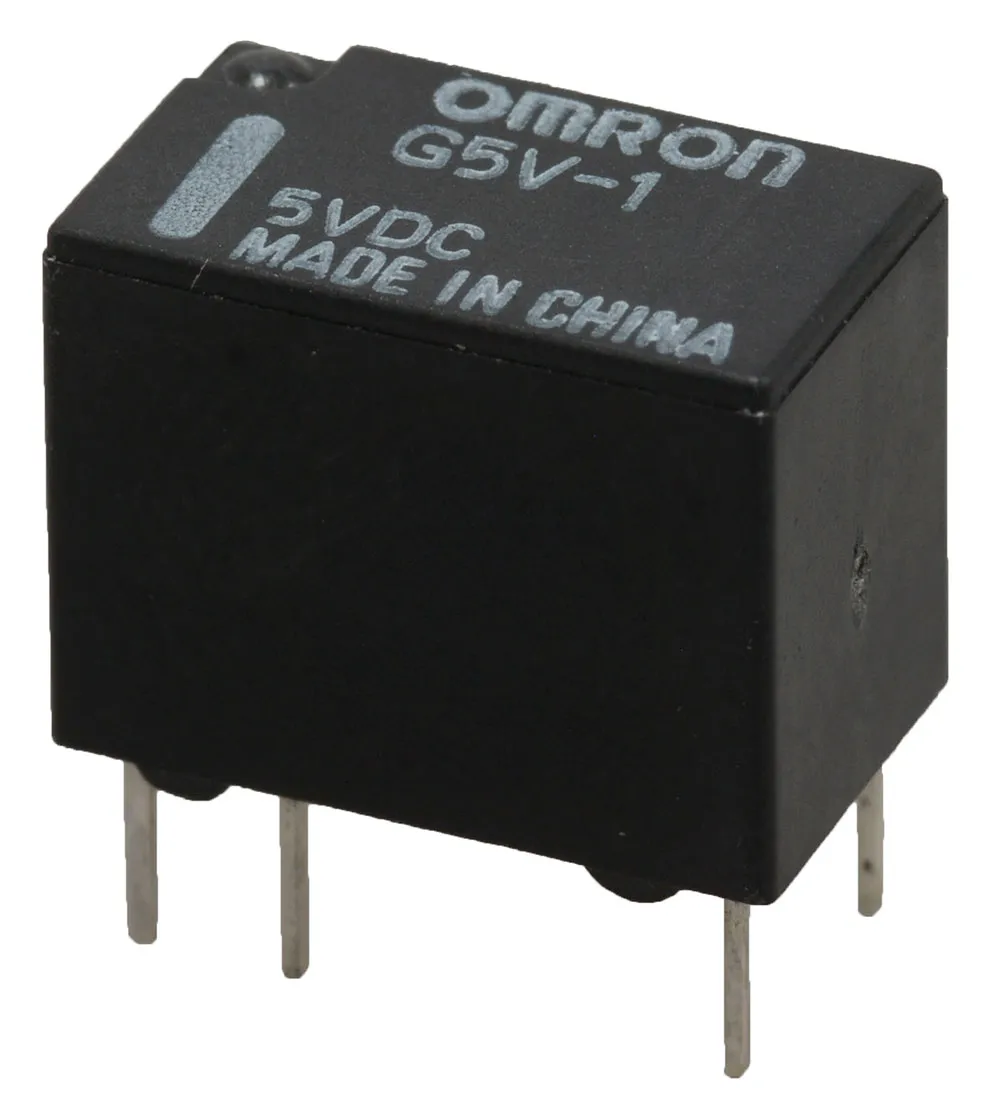

Low Signal Miniature Relay SPDT 1A 5 Volt Through Hole

Designed for the appliance and temperature control markets, these relays are also well suited for automotive load management.

Features:

  • Contact form: SPDT
  • Coil voltage: 5VDC
  • Coil resistance: 166.7Ω
  • Contact voltage: 125VAC/24VDC
  • Contact current: 0.5A/1A
  • Size: 0.50"L x 0.30"W x 0.40"H
  • 6-pin package
  • Mechanical life: 10 million operations
  • Electrical life: 100,000 operations
  • Dielectric strength: 1500Vrms (between contact and coil)
  • Potter and Brumfield Cross Reference: T5C-105L3H

Product Identification

Family:G5V-1

Dimensions & Appearance

Height:10 mm
Length:12.5 mm
Width:7.5 mm

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Features

Minimum Dropout Voltage:0.5 VDC
Coil Voltage:5 VDC
Pins:6
Maximum Pick-Up Voltage:4 VDC
Relay Construction:Non-Latching
Contact Current:0.5 A, 1 A
Operate Time:5 ms
Contact Voltage:125 VAC, 24 VDC
Coil Resistance:166.7 Ohm
Contact Form:SPDT
,
