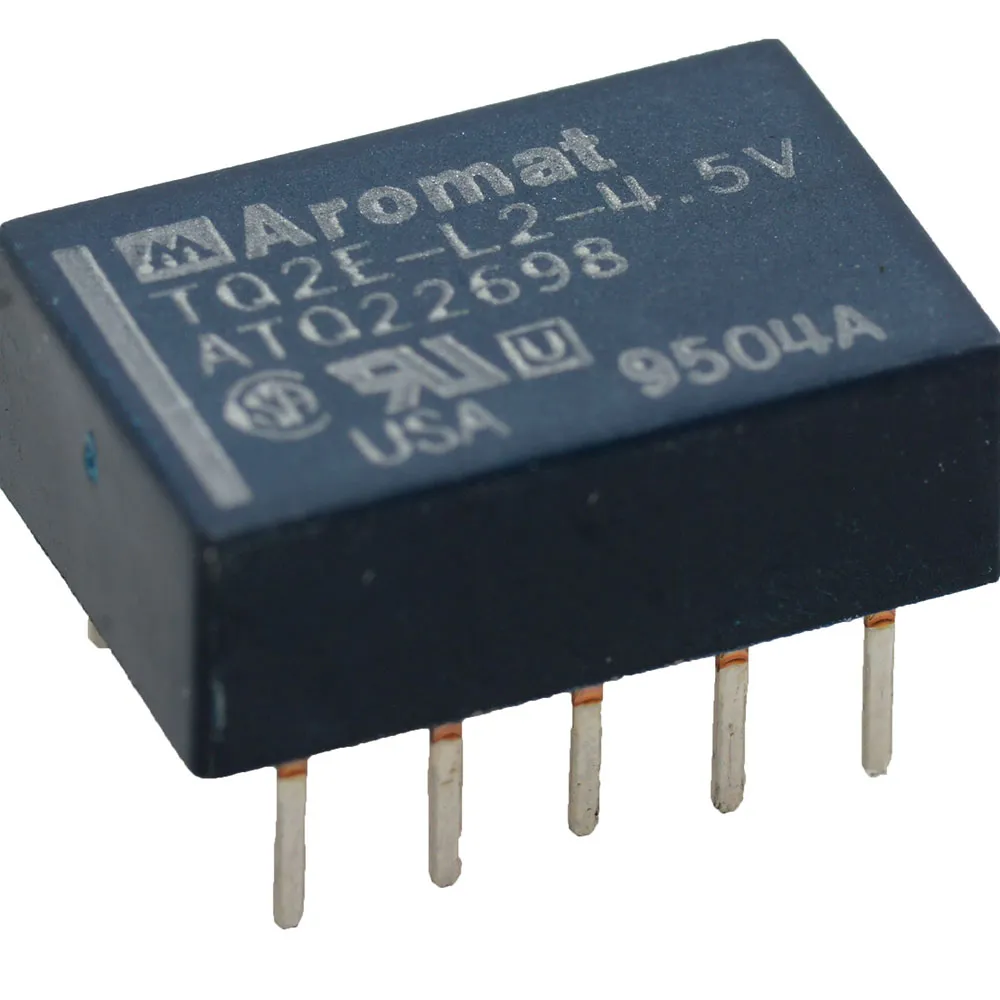

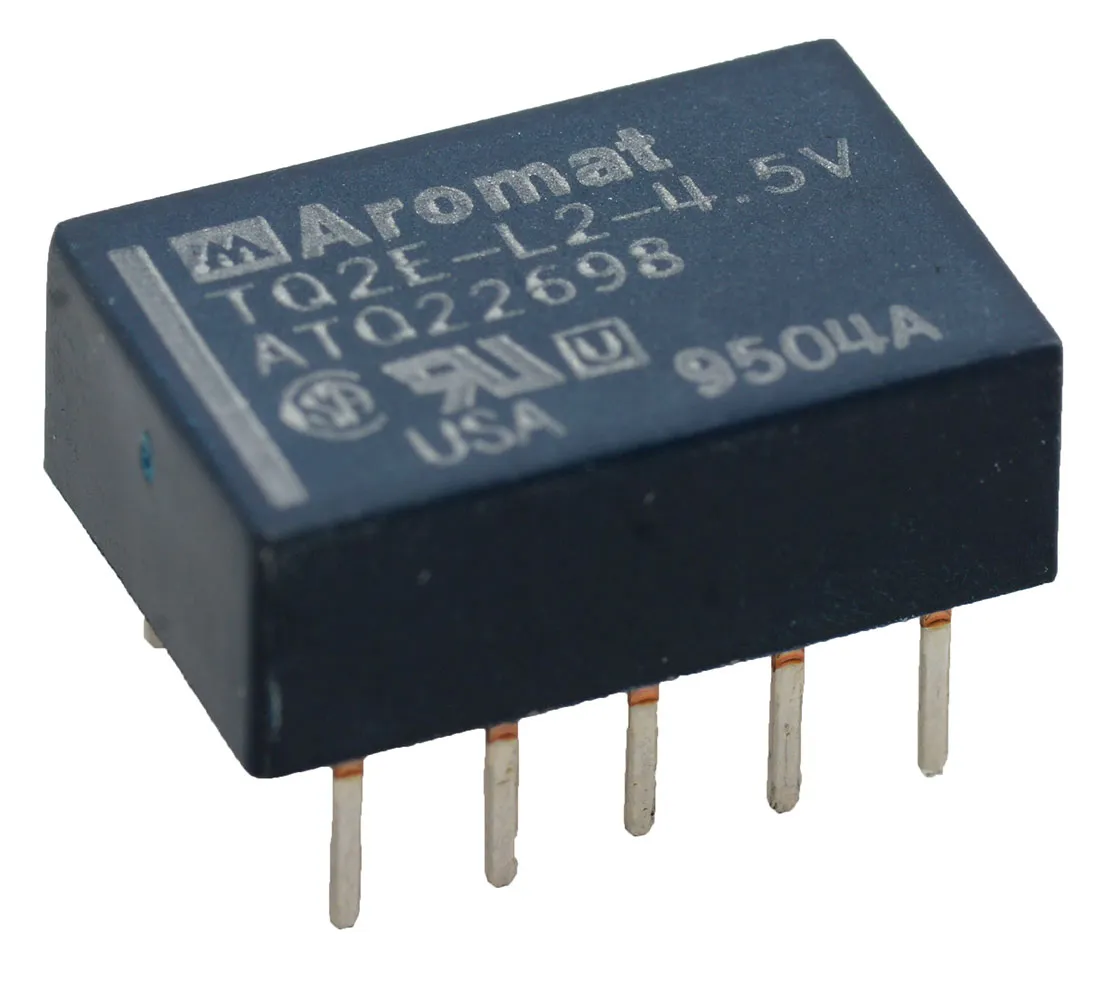

Low Profile Relay DPDT (2 Form C) 4.5 VDC 1A 30 VDC

Specifications

  • Mounting Type: Through Hole, 10-pin
  • Coil Voltage: 45 VDC
  • Contact Form: DPDT (2 Form C)
  • Contact Current: 44.4 mA
  • Contact Rating: 1A @ 30 VDC; 0.5A @ 125 VAC
  • Coil Type: 2 Coil Latching
  • Termination Style: Through Hole
  • Operate Time: 3 ms
  • Release Time: 3 ms

Dimensions & Appearance

Length:14 mm
Height:5 mm
Width:9 mm

Features

Coil Voltage:4.5 VDC
Relay Construction:Latching, Double Coil
Contact Current:0.5 A, 1 A
Pins:10
Contact Voltage:125 VAC, 30 VDC
Coil Resistance:144.6 Ohm
Contact Form:DPDT
,
