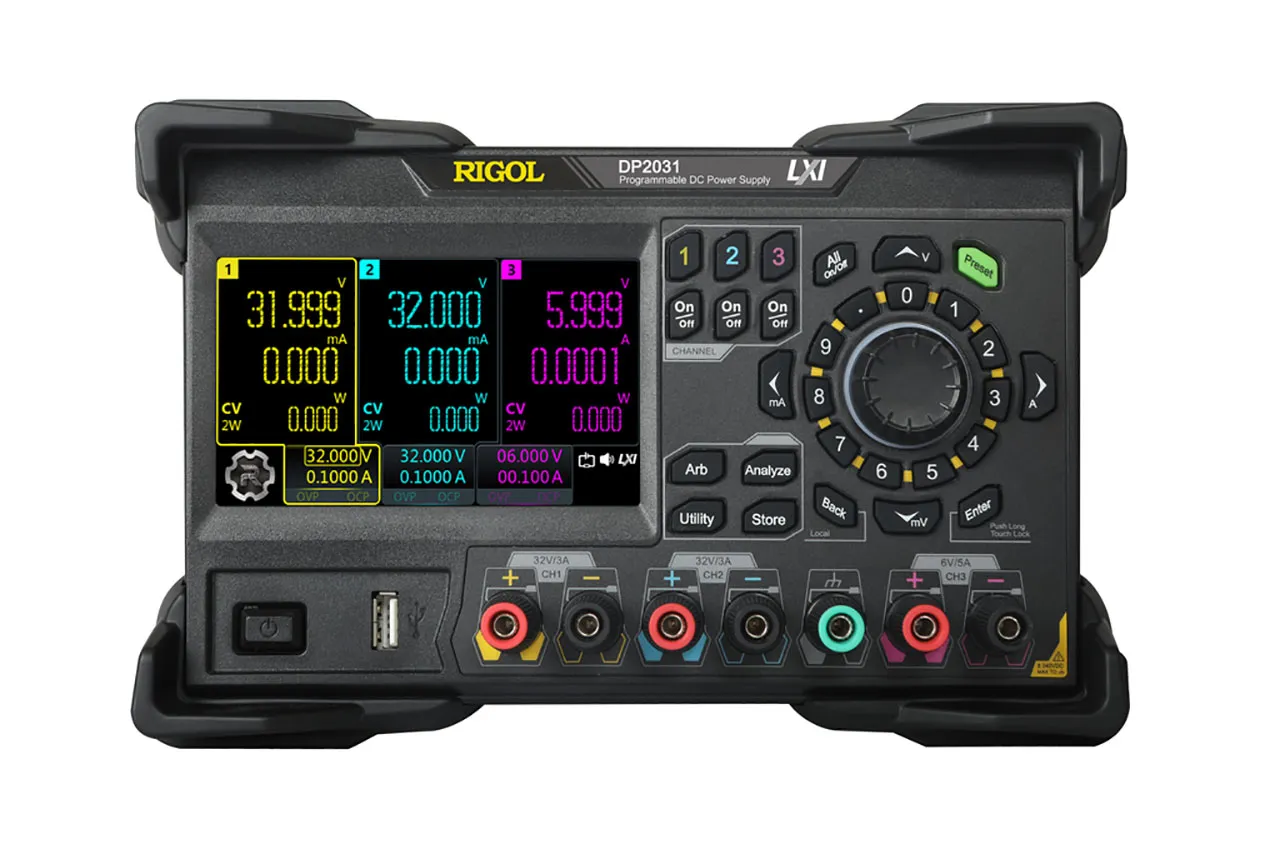

Low Current 222 W 3-channel Fully Isolated Linear DC Power Supply

Features

• 4.3" LCD color touch screen
• 3 independent channels: 32V/3A; 32V/3A; 6V/5A
• High resolution for measurement of 1 uA low current
• Capability to measure and display wide dynamic ranges of current
• Front and rear output terminals
• Minimum dwell time in Arb editor: 1ms
• Auto series/parallel connections
• LAN, USB, RS232, and Digital I/O
• Over voltage, over current and over temperature protection

Overview

The DP2031 is a 3 channel power supply with new capabilities that expand its value. First, the DP2031 comes with a low current measurement range that makes microamp measurements possible with 28 microamp accuracy and 1 microamp resolution. Combine that with the high-speed arb function that allows you to update the power supply output at up to 1000 times per second and you can quickly emulate battery configuration tests for all of your IoT and portable electronics.
