Logic Probe Hardware Kit for SDS2X and SDS5X Oscilloscopes

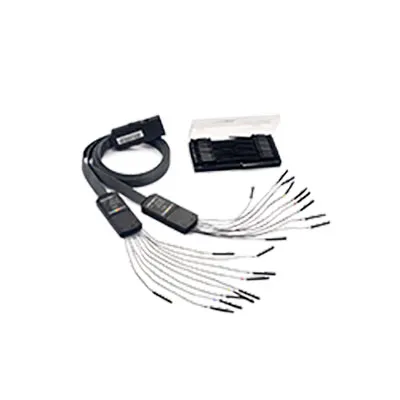

Logic Probe hardware kit for the SDS2000X/SDS5000X series of oscilloscopes.

Features

• Used with the SDS-2000X-16LA/SDS-5000X-16LA to add 16-channel digital input capability to the Siglent SDS2000X/5000X families of oscilloscopes
• Sampling rate and memory depth are scope dependent
• SDS-2000X-16LA/SDS-5000X-16LA Firmware License Key required (Sold Separately, P/N: 2300255)

Specifications

• Sampling rate and memory depth are scope dependent
• Input Channels: 16
• Input Impedance: 100 kΩ, 18 pF
• Max. Input Voltage: ±50 V peak
• Input Dynamic Range: ±20 V
• User Defined Threshold Range: -10 V to 10 V (10 mV steps)
• Threshold Selections: TTL (1.5V), CMOS (2.5V), 3.3V_LVCMOS (1.65V), 2.5V_LVCMOS (1.25V)
• Threshold Accuracy: ±3% of threshold setting +200 mV
• Threshold Groupings: Group 1: D7-D0; Group 2: D15-D8
• Min. Input Voltage Swing: 800 mVpp
• Max. Input Data Rate: 300 Mbps
• Min. Detectable Pulse Width: 3.3 ns
• Channel-to-Channel Skew: ±1 digital sample interval
