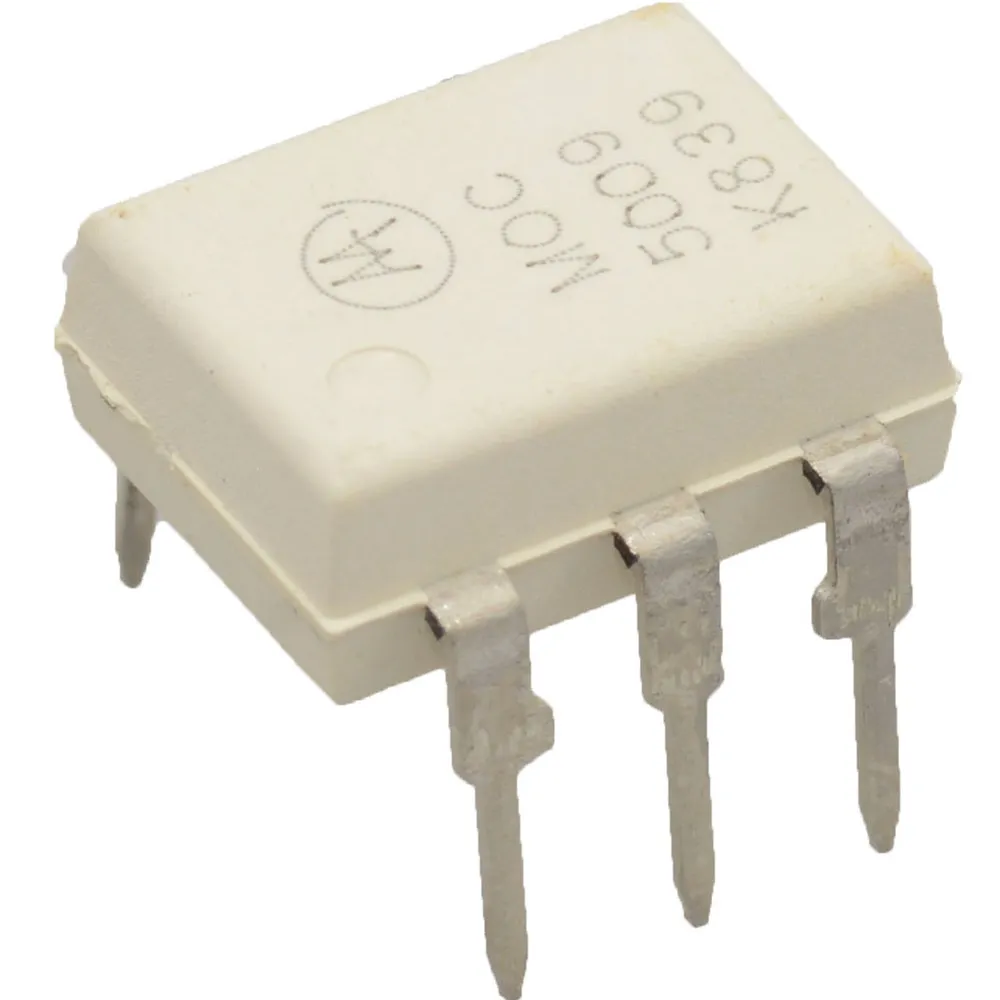

Logic Output Optoisolator 1MHz Open Collector 7500Vpk 1 Channel CMTI DIP-6

Specifications

  • Inputs - Side 1/Side 2: 1/0
  • Voltage - Isolation: 7500 Vpk
  • Input Type: DC
  • Output Type: Open Collector
  • Number of Channels: 1
  • Current - Output / Channel: 50 mA
  • Data Rate: 1 MHz
  • Current - DC Forward (If) (Max): 10 mA
  • Mounting Type: Through Hole
  • Package: 6-DIP (0.300", 7.62 mm)
  • Base Number: MOC500

Product Identification

Product Type:Optoisolator

Packaging

Package:DIP-6

Output

Output Type:Open Collector

Features

Typical Rise Time:0.1 us
Typical Fall Time:0.1 us
Emitter Maximum Forward Voltage:0.4 V
Number of Channels:1
Detector Maximum Collector Voltage:15 V
Detector Maximum Collector Current:50 mA
Emitter Maximum Forward Current:N/A
Minimum Isolation Voltage:7500 Vrms
Power Dissipation:250 mW
,
