Linear Voltage Regulator IC Positive Fixed 3.3V Output 800mA 3-DDPAK

Specifications

• Output Configuration: Positive
• Output Type: Fixed
• Number of Regulators: 1
• Voltage - Input (Max): 15 V
• Voltage - Output (Fixed): 3.3 V
• Voltage Dropout (Max): 1.2 V @ 800 mA
• Current - Output: 800 mA
• Current - Quiescent (Iq): 10 mA
• PSRR: 75 dB (120 Hz)
• Protection Features: Over Temperature
• Operating Temperature: 0°C to 125°C
• Mounting Type: Surface Mount

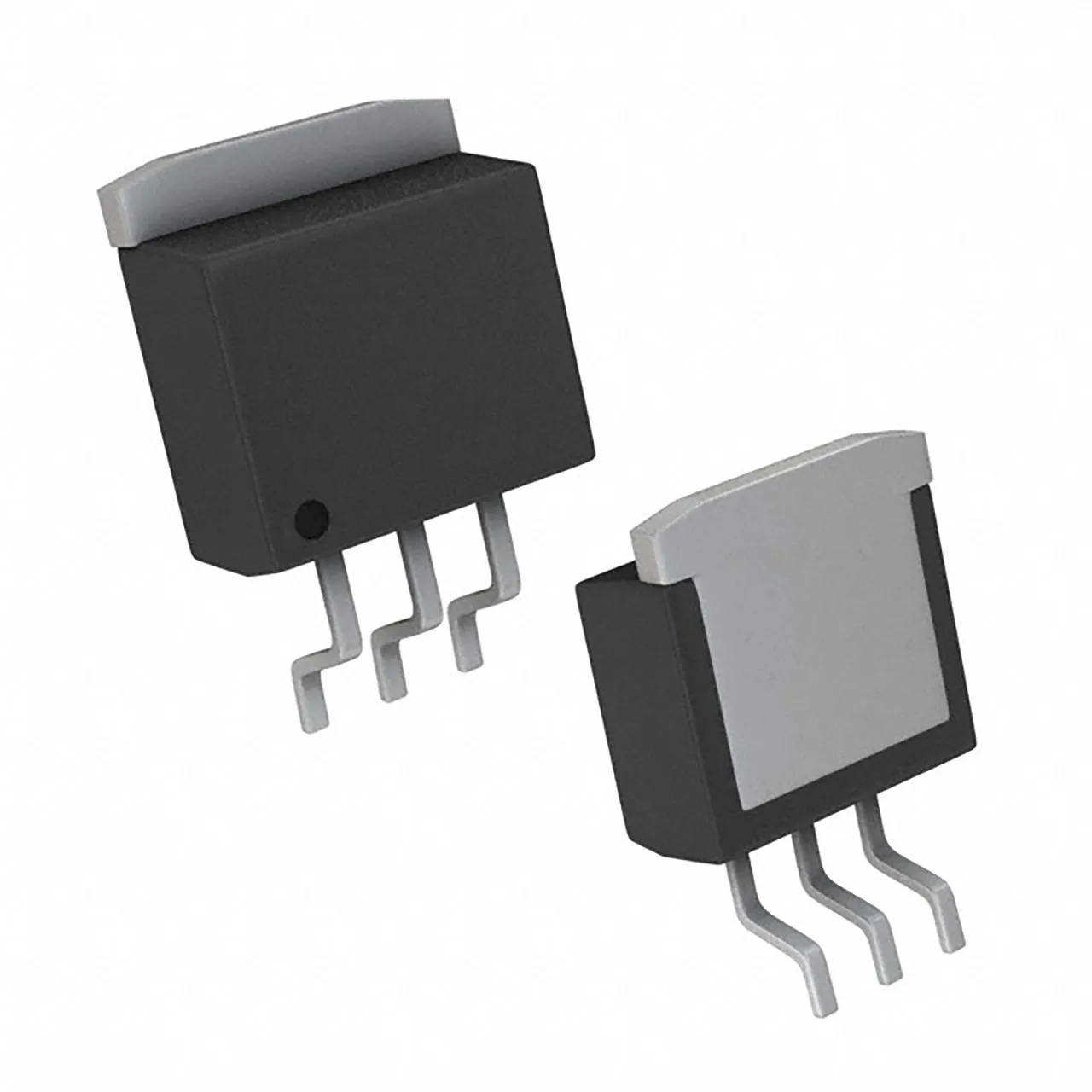

• Package: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA, 3-DDPAK
• Base Number: T1117
