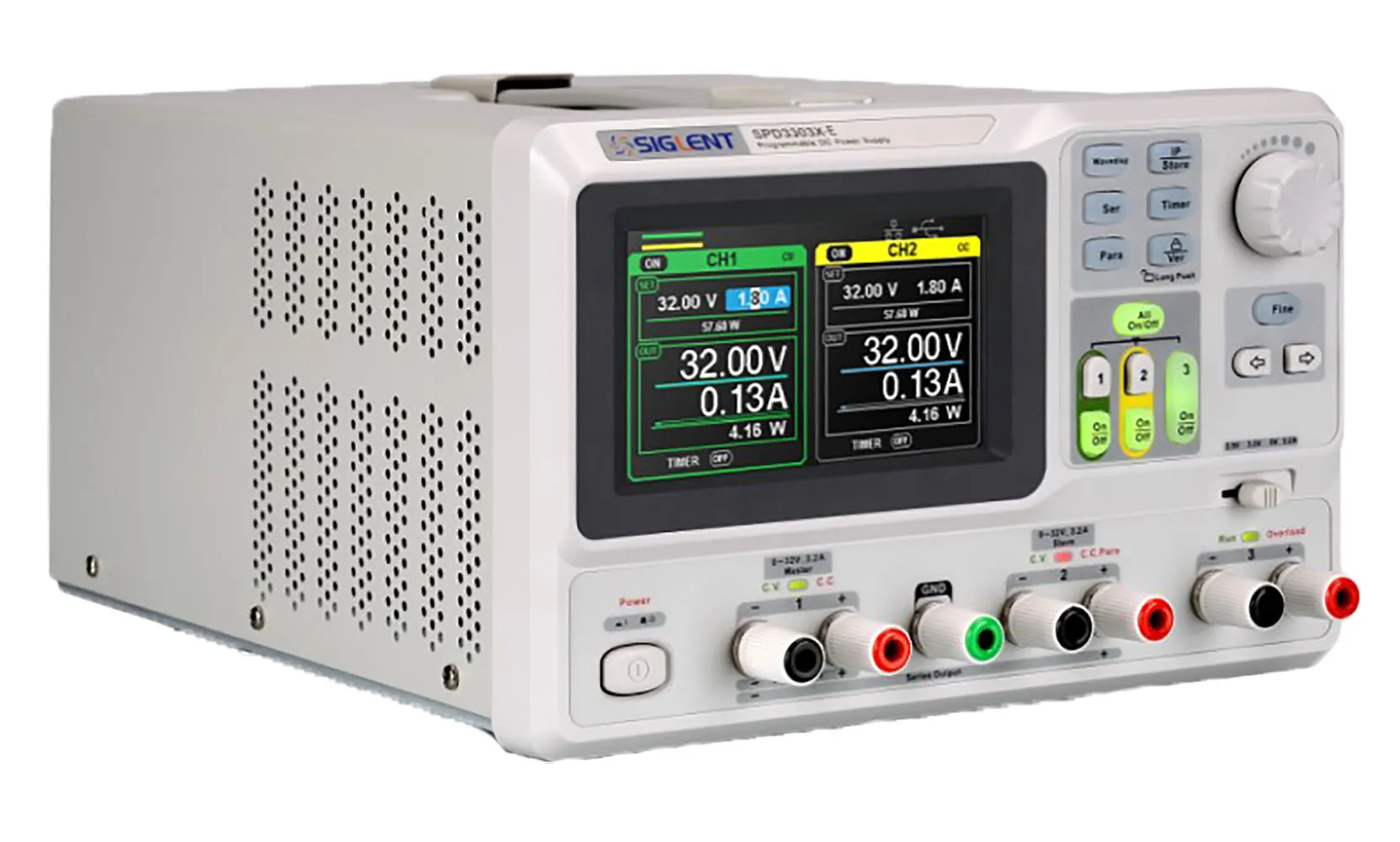

Linear Programmable DC Power Supply 220W 3 Channel 32V 3.2A (x2) and Selectable Low Voltage

Features

  • 3 independent controlled and isolated output: 32V @ 3.2A (x2), 2.5V/3.3V/5V @ 3.2A, total 220W
  • 5 digits voltage display
  • 4 digits current display
  • Minimum resolution: 1mV/1mA
  • Supports panel timing output functions
  • 4.3" true color TFT- LCD 480x272 display
  • 3 types of output modes: independent, series, parallel
  • 100V/120V/220V/230V compatible design to meet the needs of different power grids
  • Intelligent temperature-controlled fan, effectively reducing noise
  • Clear graphical interface, with the waveform display function
  • Internal 5 groups of system parameter save/recall, supports data storage space expansion
  • Provides PC software: Easypower, supports SCPI, LabView driver

Product Identification

Product Type:Benchtop Power Supply

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Weight:19.5 lbs.
Depth:10.9 in.
Height:5.63 in.
Width:8.86 in.

Input

Input Frequency:50Hz, 60Hz
Input Voltage:115 VAC, 230 VAC

Output

Number of Outputs:3
Output Current:0 A to 3.2 A
Output Voltage:0 VDC to 32 VDC, 2.5 VDC, 3.3 VDC, 5 VDC
Output Connector Type:Banana Jacks

Features

Type of Displays:Digital LCD
Power Rating:220 W
,
