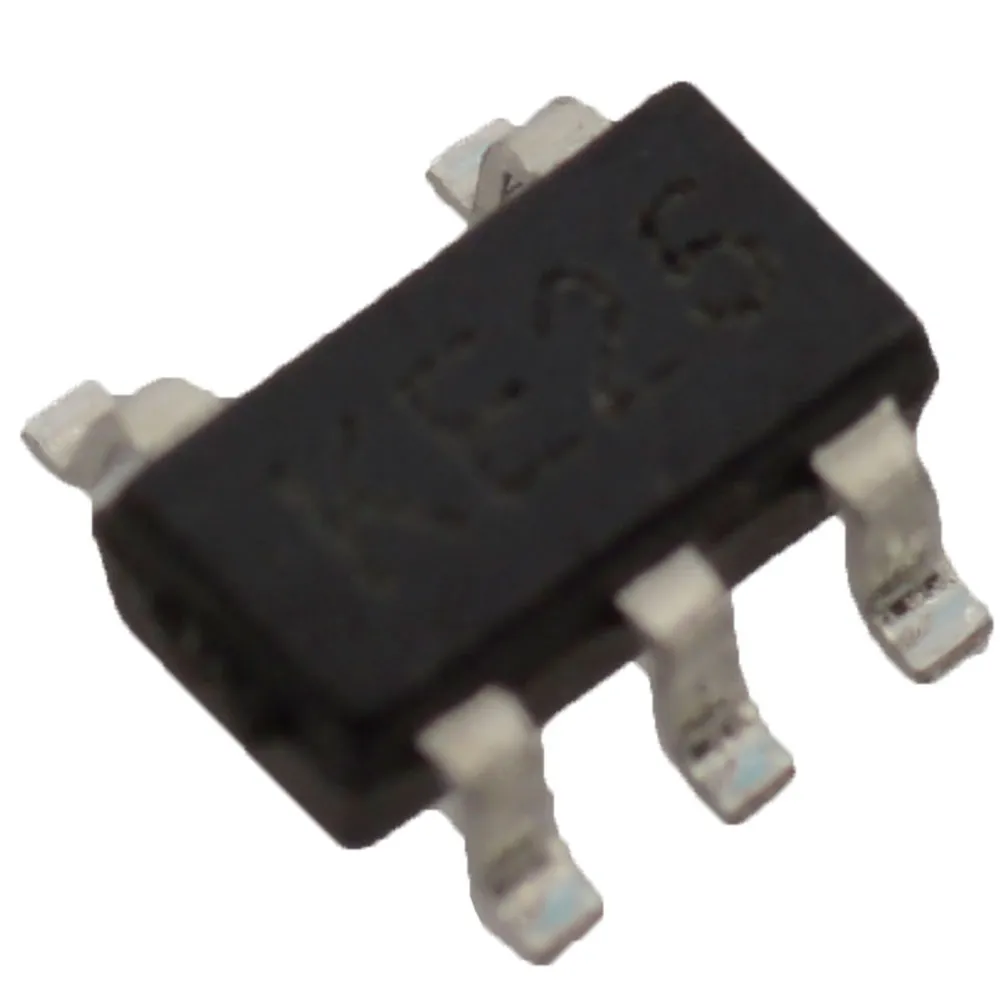

Li-Ion Li-Polymer Charge Management Controller IC SOT-23-5

Specifications

  • Battery Chemistry: Lithium Ion/Polymer
  • Number of Cells: 1
  • Current - Charging: Constant - Programmable
  • Programmable Features: Current
  • Fault Protection: Over Voltage
  • Charge Current - Max: 500 mA
  • Battery Pack Voltage: 4.2 V
  • Voltage - Supply (Max): 6 V
  • Operating Temperature: -40°C to 85°C (TA)
  • Mounting Type: Surface Mount
  • Package: SC-74A, SOT-753, SOT-23-5
  • Base Number: MCP73831

Product Identification

Product Type:Constant - Programmable
Family:MCP73831

Dimensions & Appearance

Mounting:Surface Mount

Packaging

Package:SOT-23-5

Input

Maximum Input Voltage:6 VDC
Minimum Input Voltage:3.75 VDC

Output

Output Voltage:4.2 VDC
Output Current:500 mA

Features

Pins:5
Battery Type:Lithiumi-Ion/Polymer
,
