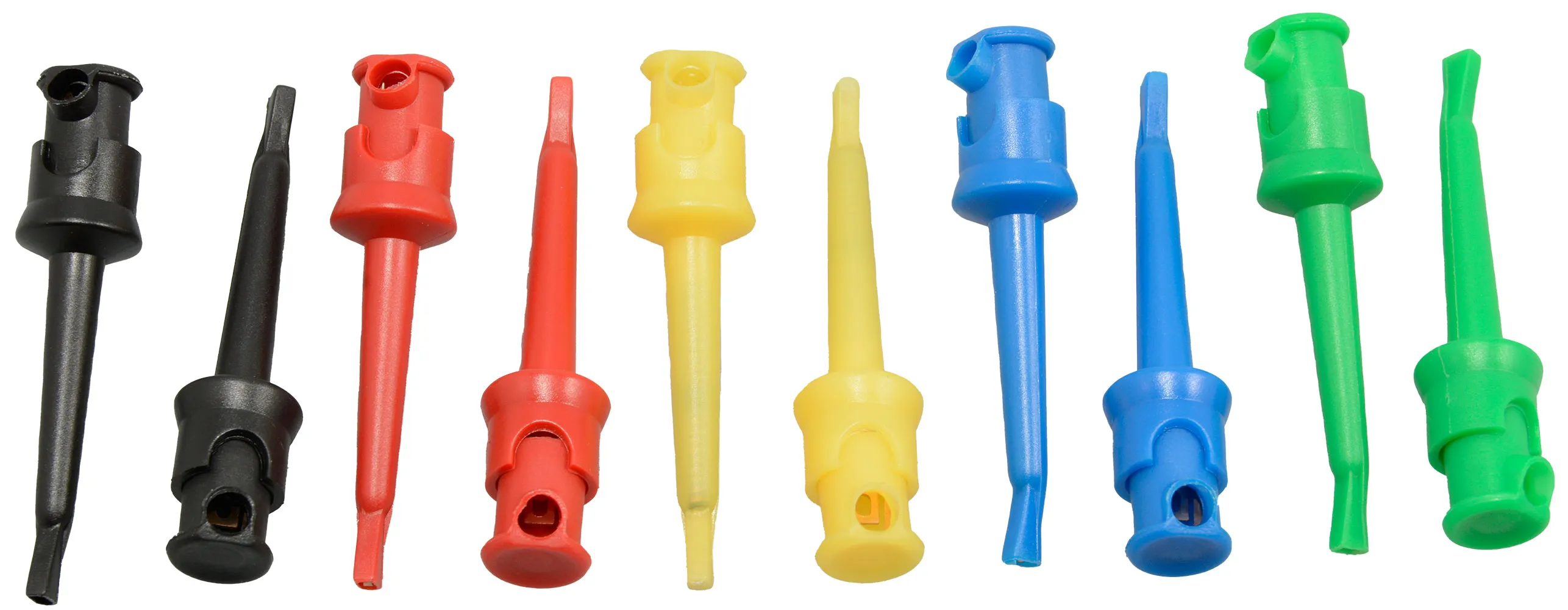

Light Action Micro-Hook Set of 10 Colors

Features

• Hook fits over components up to a max diameter of 0.045 in (1.14 mm)
• Wire exit hole accepts 32-22 AWG wire or a max wire diameter of 0.11 in (2.79 mm) (May be attached to a lead)
• Tip design permits hook ups vertically or horizontally
• Field Serviceable
• Set of 10 in assorted colors

Specifications

• Hook Style: Single Hook
• Spring Pressure: 8 oz (227 g)
• Length: 1.75" (44.45 mm)
• Color: Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White
• Voltage (max recommended): 2.4 kV
• Current (max recommended): 4.4 Amps
• Material (Contact Blade): Gold-Plated Beryllium Copper
• Material (Housing): Nylon
• Material (Spring): Stainless Steel
• Temperature (max recommended): 200°F (93°C)

Applications

• Designed for use where weight and leverage may damage components.
• Designed for use with surface mount devices or where connection point is small to test electronic components connections; popular as an oscilloscope probe.
• These clips are great for testing miniature components, IC connectors, IC pins CIP and SMD, electrical test boards, and for use with Arduino products.
