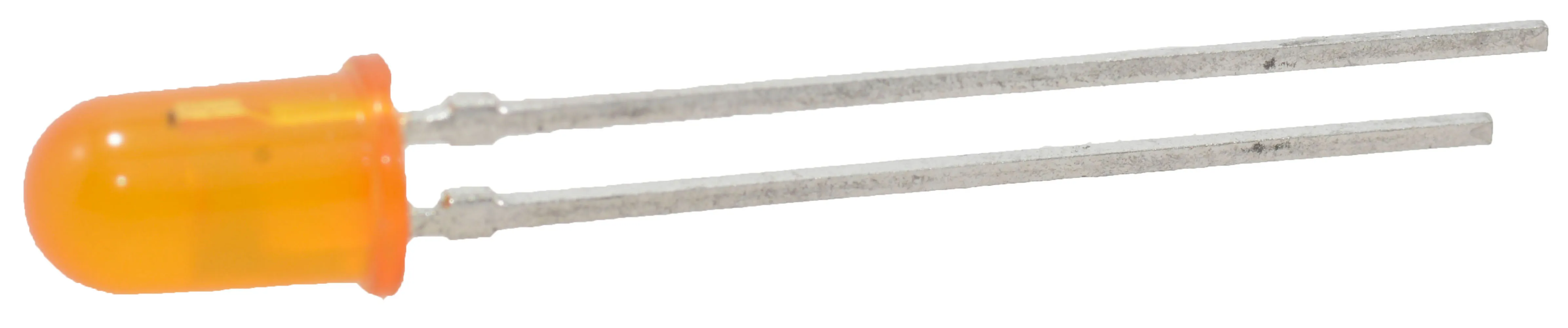

LED T1-3/4 (5mm) Yellow Diffused 2.2mcd 5V 585nm 60 Degree

Specifications

  • Color: Yellow
  • Configuration: Standard
  • Lens Color: Yellow
  • Lens Transparency: Diffused
  • Millicandela Rating: 2.2 mcd
  • Lens Style: Round with Domed Top
  • Lens Size: 5mm, T-1 3/4
  • Voltage - Forward (Vf) (Typ): 5 V
  • Current - Test: 10 mA
  • Viewing Angle: 60°
  • Mounting Type: Through Hole
  • Wavelength - Dominant: 585 nm
  • Wavelength - Peak: 583 nm
  • Package: Radial
  • Height (Max): 9.19 mm
  • Base Number: HLMP-3650

Dimensions & Appearance

Color:Yellow
Height:9.1 mm

Packaging

Package:T-1 3/4 (5mm)

Features

Pins:2
Lead Pitch:0.1 in.
Lens Type:Diffused
Typical Forward Current:10 mA
Luminous Intensity:2.2 mcd
Viewing Angle:60°
LED Display Type:Standard
Peak Wavelength:585 nm
Typical Forward Voltage:5 V
,
