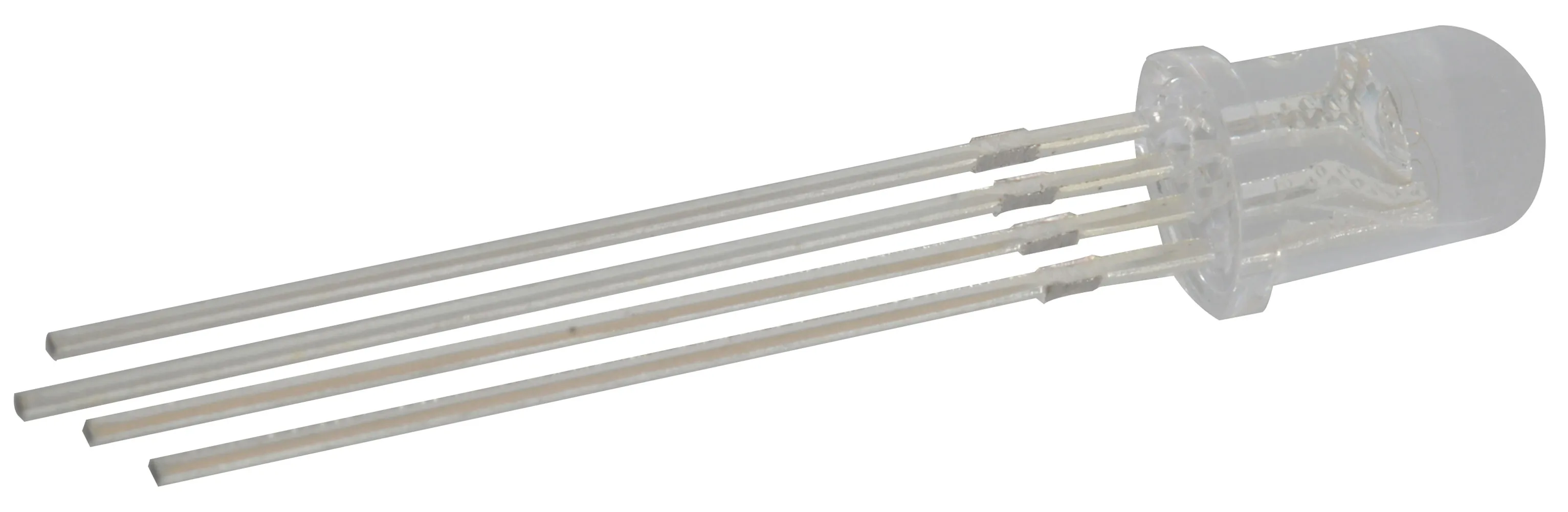

4-Pin 5mm Water Clear RGB LED - Common Cathode

Features

• Common Cathode
• LED size: T1-3/4 (5mm)
• LED diameter: 0.197" (5mm)
• Red = 2V forward voltage
• Green = 3.2V forward voltage
• Blue = 3.2V forward voltage
• Lead length: 1"
• Lead spacing: 0.05"
• Brightness (mcd): 5000 (red), 9000 (green), 6000 (blue)
• Wavelength (nm): 625 (red), 525 (green), 470 (blue)
• Viewing angle: 20°

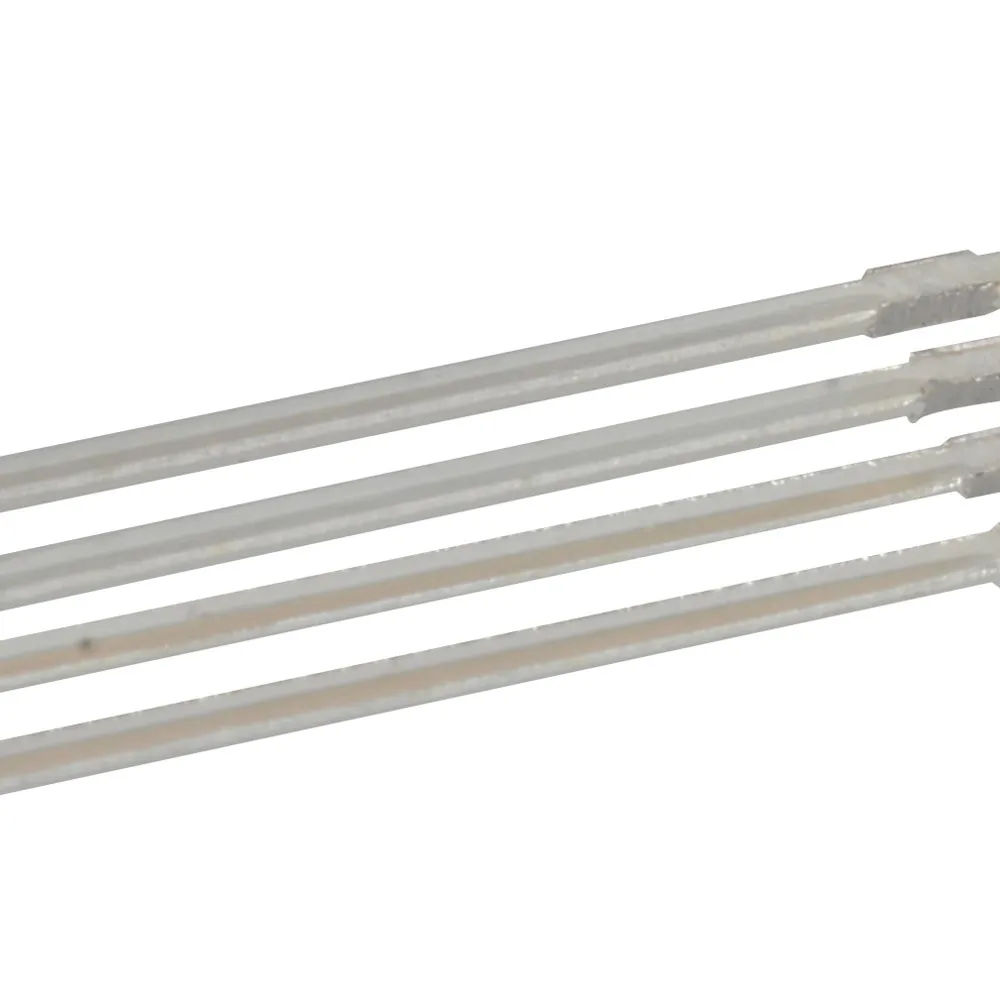

Pin Out

• Pin 1: GREEN (pin on the end next to the longest pin)
• Pin 2: GROUND (common) (the longest pin)
• Pin 3: BLUE (pin next to the longest, but not on the end)
• Pin 4: RED (pin on the end, but not next to the longest)
