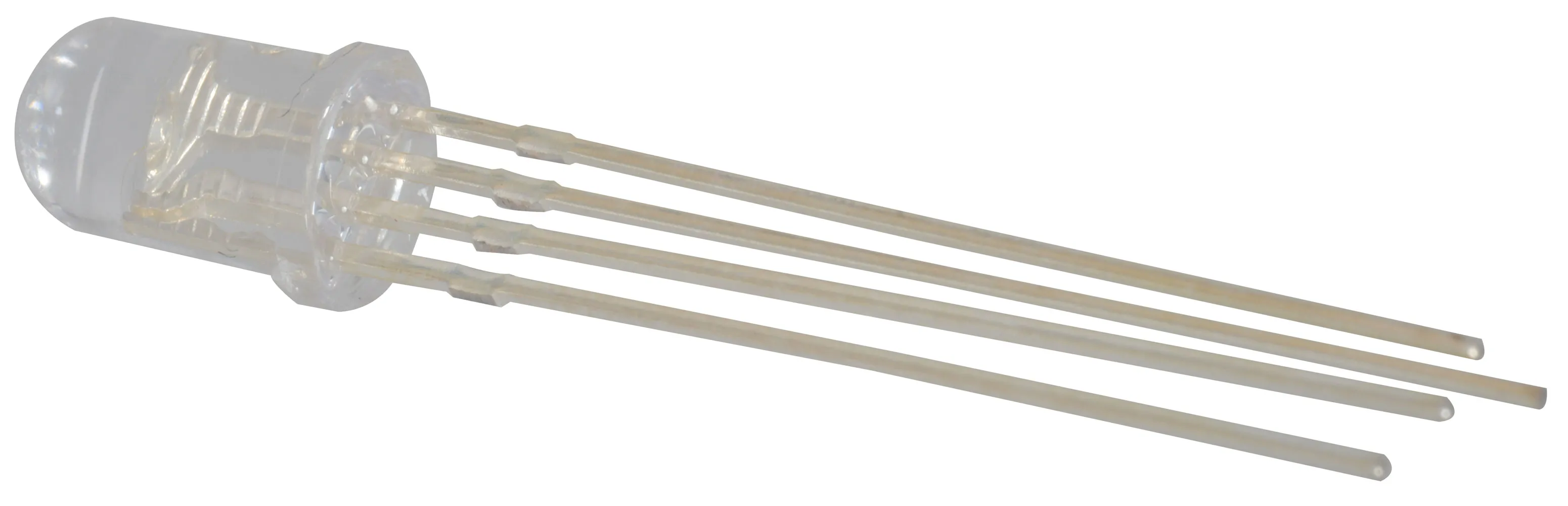

5mm Water Clear RGB LED - Common Cathode

Features

  • Tri-color: Red, Green, Blue
  • Small flange without stand-off
  • Long life - solid state reliability
  • Long lead length (25.4mm)
  • Versatile mounting on PC board or panel
  • Common Cathode configuration. (Common Anode (Power) version is P/N: 2211127)
  • Can be color mixed with PWM output to create virtually any color
  • Triple Output

Chip Materials

  • Dice Material: AlGaInP & InGaN & InGaN
  • Light Color: Full Color - Pure Red & Pure Green & Pure Blue
  • Lens Color: Water Clear
  • LED Size: T1-3/4 (5mm)

Specifications (@ 25°C, 20mA)

  • Typical Forward Voltage: Red=2.0V, Green= 3.4V, Blue= 3.4V
  • Reverse Current: 10µA max. (Vr: 5V)
  • Dominant Wavelength: Red= 625nm, Green= 525nm, Blue= 470nm
  • Viewing Angle: 25°
  • Luminous Intensity (typ.): Red= 2000mcd, Green= 3000mcd, Blue= 1200mcd
  • 4-pin package

Dimensions & Appearance

Color:RGB
Height:7.9 mm

Packaging

Package:T-1 3/4 (5mm)

Features

Pins:4
Lead Pitch:0.1 in.
Viewing Angle:25°
Polarity:Common Cathode
Typical Forward Voltage:2 V, 3.4 V, 3.4 V
Typical Forward Current:30 mA
Lens Type:Water Clear
LED Display Type:Super Bright
Peak Wavelength:625 nm, 525 nm, 470 nm
Luminous Intensity:2000mcd, 3000mcd, 1200mcd
,
