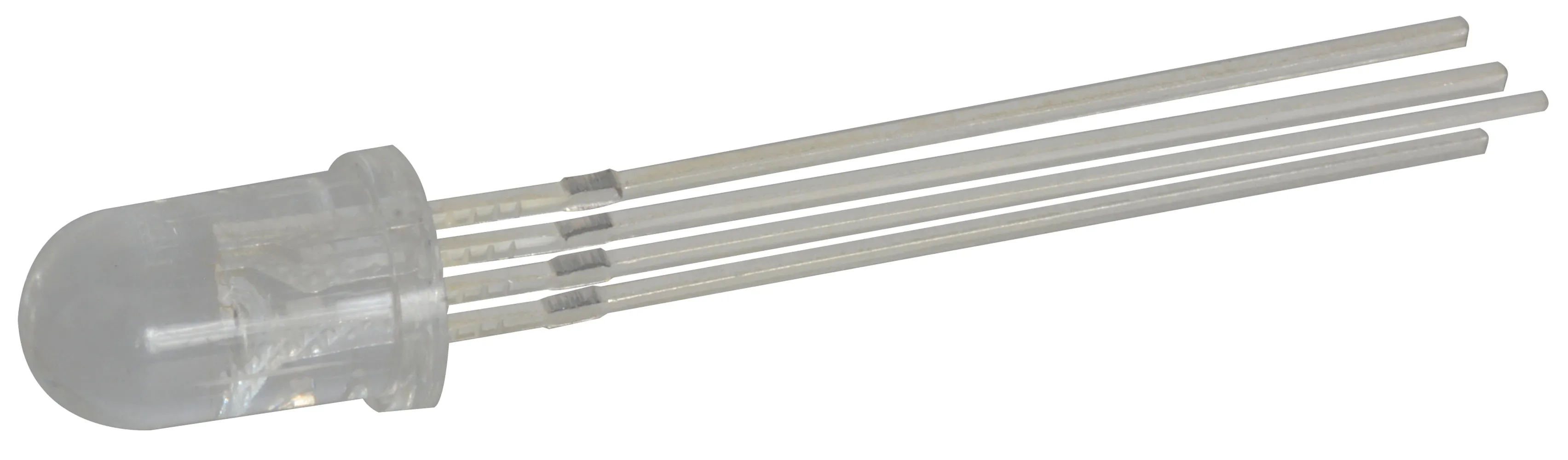

5mm Water Clear RGB LED - Common Anode

Features:

• Tri-color: Red, Green, Blue
• Small flange without stand-off
• Long life - solid state reliability
• Long lead length (26mm)
• Versatile mounting on PC board or panel
• Common Anode configuration. (Common Cathode (ground) version is P/N: 2125181)
• Can be color mixed with PWM output to create virtually any color
• Triple Output

Chip Materials:

• Dice Material: AlGaInP & InGaN & InGaN
• Light Color: Full Color (TS Orange Red & Pure Green & Pure Blue
• Lens Color: Water Clear
• LED Size: T1-3/4 (5mm)

Specifications (@ 20mA):

• Typical Forward Voltage: TS Orange Red= 2.0V, Pure Green= 3.5V, Pure Blue= 3.5V
• Reverse Current: 10µA (Vr-5V)
• Dominant Wavelength: TS Orange Red= 628 nm, Pure Green= 525 nm, Pure Blue= 470 nm
• Viewing Angle: 25°
• Luminous Intensity (typ.): TS Orange Red= 3000 mcd, Pure Green= 5000 mcd, Pure Blue= 1000 mcd
