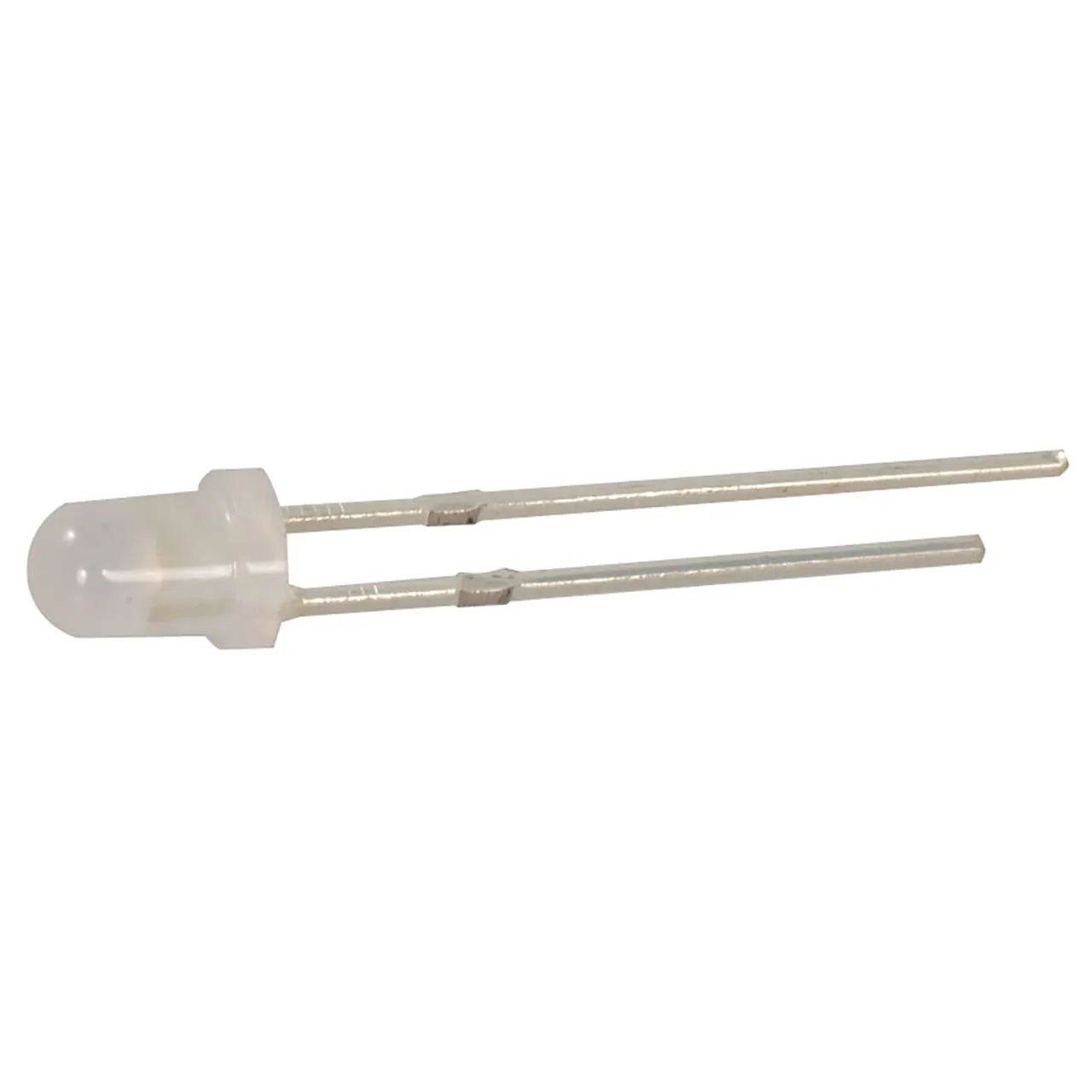

3mm Blue LED with Diffused Lens
Features
- Want the water clear lens version? Check out this one!
- Brightness: 5000 mcd
- Color: Blue
- Diffused lens
- Forward voltage @ 20mA: 3.4V typical
- Viewing angle: 120-140°
- Dominant wavelength: 465nm
- 2-pin connection
- Size: 3mm (T1)
- Lead lengths: Cathode: 0.625", Anode: 0.725"
Product Identification
Product Type:Super Bright LED
Dimensions & Appearance
Color:Blue
Height:5.1 mm
Packaging
Package:T-1 (3mm)
Features
Pins:2
Lead Pitch:0.1 in.
Peak Wavelength:465 nm
Lens Type:Diffused
Typical Forward Current:20 mA
Viewing Angle:120°
Typical Forward Voltage:3.4 V
Luminous Intensity:5000 mcd
