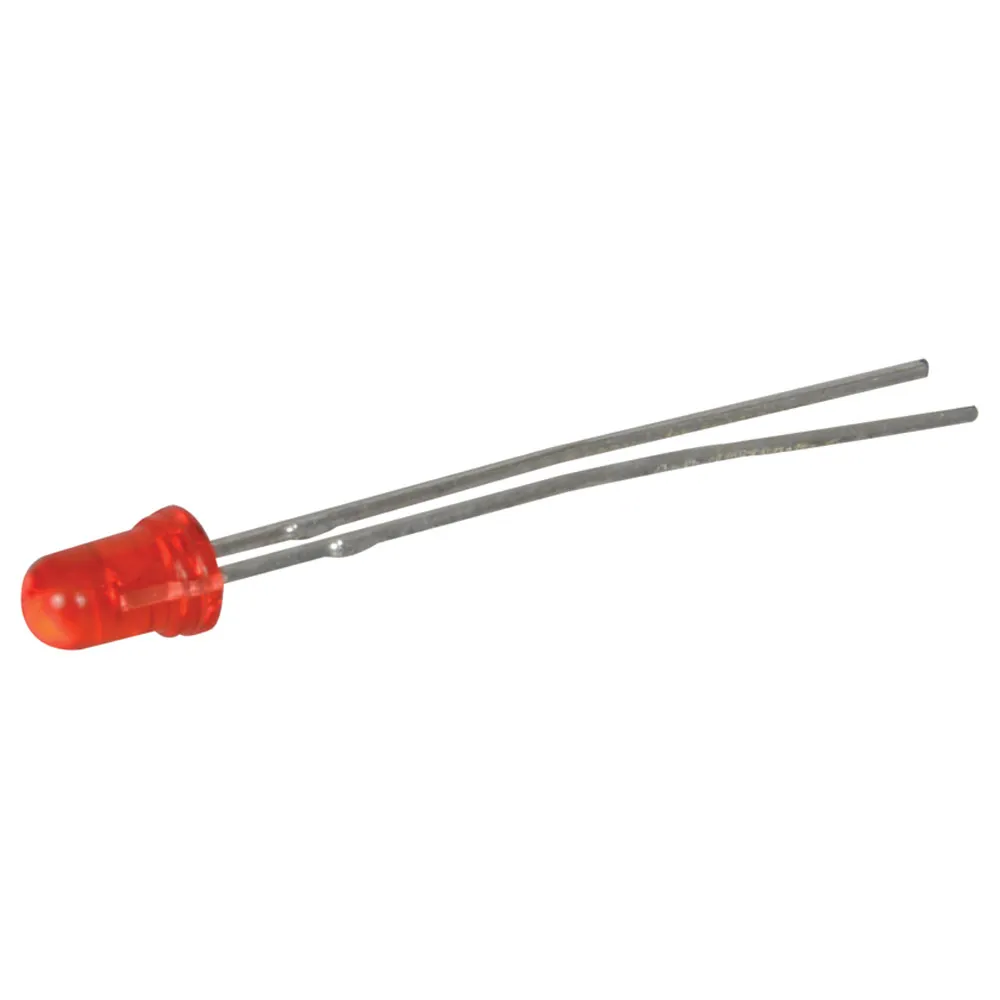

LED, Hi-Eff, 2.0 VDC, Red, T1,
19 mcd, 635 nm, 45 Viewing Angle

Features

  • Low Power Consumption
  • High Efficiency
  • Versatile mounting on P.C. board or panel
  • CMOS/MOS and TTL compatible
  • Long lif-solid state reliability
  • Wide Viewing Angle
  • Low Cost

    Specifications:

  • Manufacturer: Lite-On Electronics
  • Manufacture#: LTL-16KEE-002
  • Power Dissipation: 100 mW
  • Forward Voltage (typical): 2.0 VDC @ 20 mA
  • Lens: Red Transparent (clear)
  • Luminous Intensity (typical): 19 mcd @ 10 mA
  • Viewing Angle: 45°
  • Peak Emission Wavelength (typical): 635 nm
  • Dominant Wavelength (typical): 623 nm
  • Size: T1 - 3 mm
  • Operating Temperature: -55°C to +100°C

    • Dimensions & Appearance

    Color:Red
    Height:5.2 mm

    Packaging

    Package:T-1 (3mm)

    Features

    Pins:2
    Lead Pitch:0.1 in.
    Typical Forward Voltage:2 V
    Viewing Angle:45°
    Lens Type:Non Diffused
    Typical Forward Current:30 mA
    LED Display Type:Standard
    Luminous Intensity:19 mcd
    Peak Wavelength:635 nm
    ,
