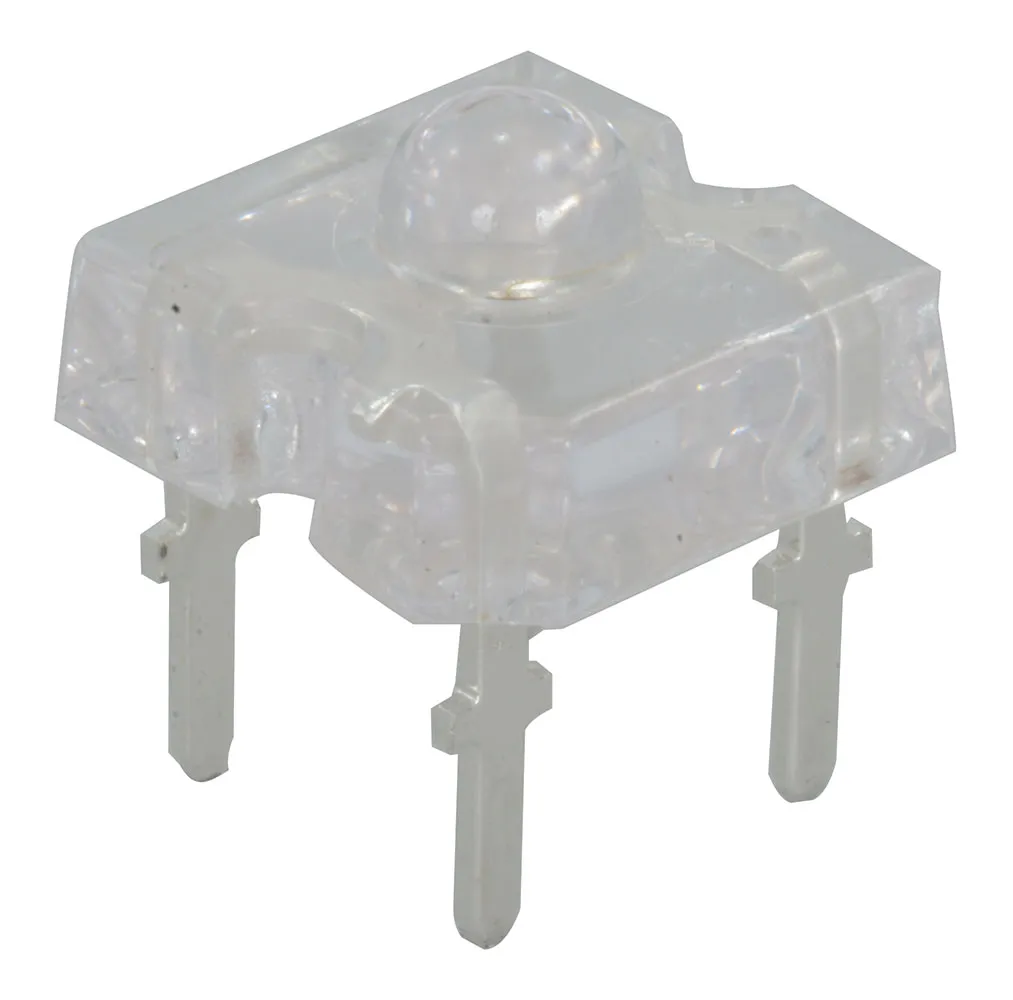

Red 624nm Piranha LED Clear Lens 2.15V 4-DIP 5.08mm

Specifications

  • Color: Red
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 1.2mcd
  • Lens Style/Size: Round with Domed Top, 3.00mm
  • Voltage - Forward (Vf) (Typ): 2.15V
  • Current - Test: 70mA
  • Viewing Angle: 50°
  • Mounting Type: Through Hole
  • Wavelength - Dominant: 624nm
  • Wavelength - Peak: 632nm
  • Package / Case: 4-DIP (0.200", 5.08mm)
  • Size / Dimension: 7.62mm L x 7.62mm W
  • Height (Max): 6.10mm

Product Identification

Product Type:Piranha LED

Dimensions & Appearance

Color:Red
Height:2.5 mm/4.4 mm

Packaging

Package:Piranha (7.62mm sq.)

Features

Pins:4
Viewing Angle:50°
Lens Type:Water Clear
Lead Pitch:0.2 in. x 0.2 in.
Typical Forward Voltage:2.15 V
Typical Forward Current:70 mA
Peak Wavelength:632 nm
Luminous Intensity:1200 mcd
,
