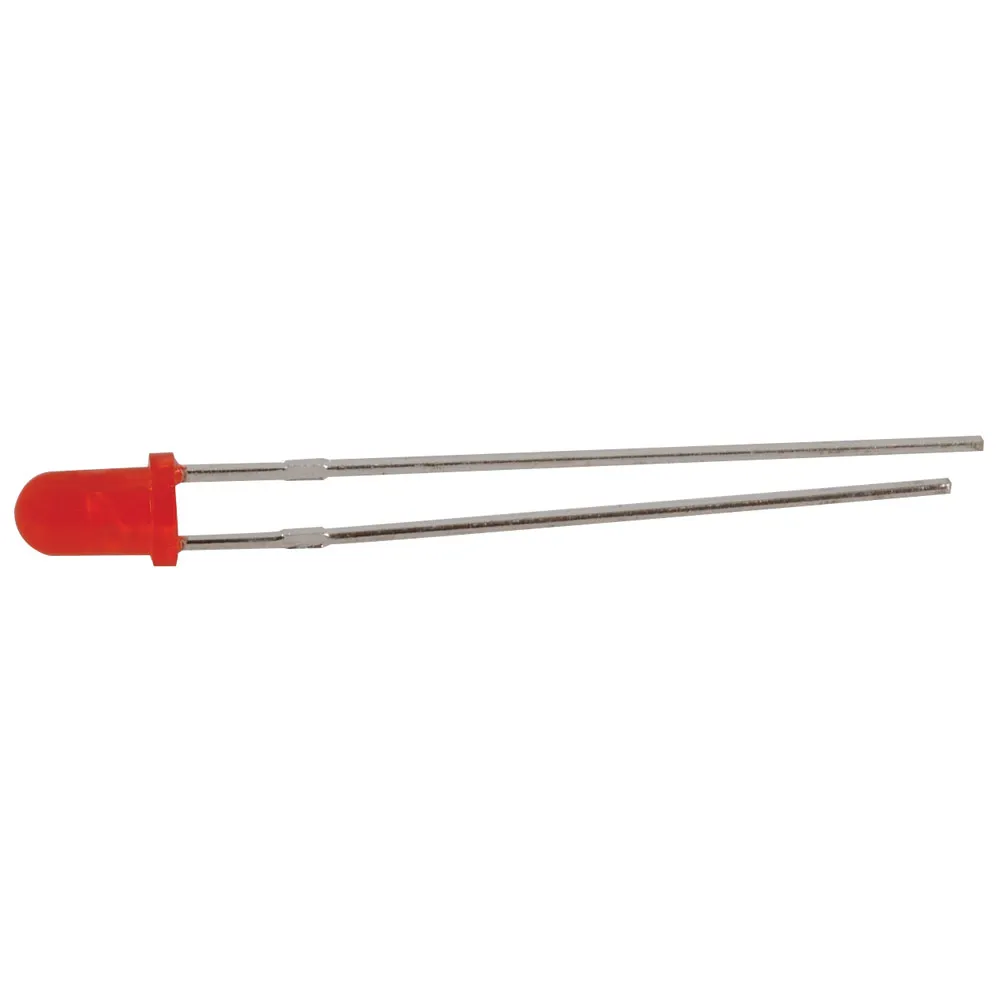

Specifications:

  • Light color: Orange Red
  • Lens color: Red diffused
  • Peak emission wavelength: 632 nm
  • Dominant wavelength: 622 nm
  • Viewing angle: 45 degrees
  • Luminous intensity: 18 mcd
  • Forward voltage: 2.1 V @ 20 mA
  • Power dissipation: 80 mW
  • Operating temperature range: -30°C to +85°C

Dimensions & Appearance

Color:Orange Red
Height:5.3 mm

Packaging

Package:T-1 (3mm)

Features

Pins:2
Lead Pitch:0.1 in.
Lens Type:Diffused
Viewing Angle:45°
Typical Forward Current:20 mA
Typical Forward Voltage:2.1 V
LED Display Type:Standard
Peak Wavelength:622 nm
Luminous Intensity:18 mcd
,
