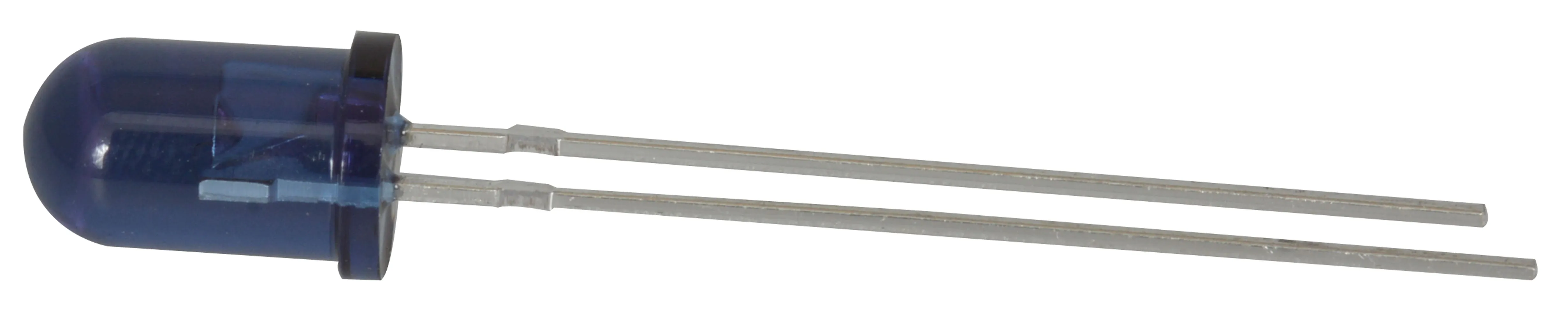

1 Element Infrared LED

TSAL6100 is a high efficiency infrared emitting diode in GaAlAs on GaAs technology, molded in clear, blue-grey tinted plastic packages. In comparison with the standard GaAs on GaAs technology these emitters achieve more than 100 % radiant power improvement at a similar wavelength. The forward voltages at low current and at high pulse current roughly correspond to the low values of the standard technology. Therefore these emitters are ideally suitable as high performance replacements of standard emitters

Features

  • Size: T1-3/4, 5.8mm
  • Wavelength: 940
  • Forward Voltage: 1.35V @ 100mA
  • Power Dissipation: 210mW
  • High Intensity
  • Diode height: 0.30in
  • Diode diameter: 0.98in

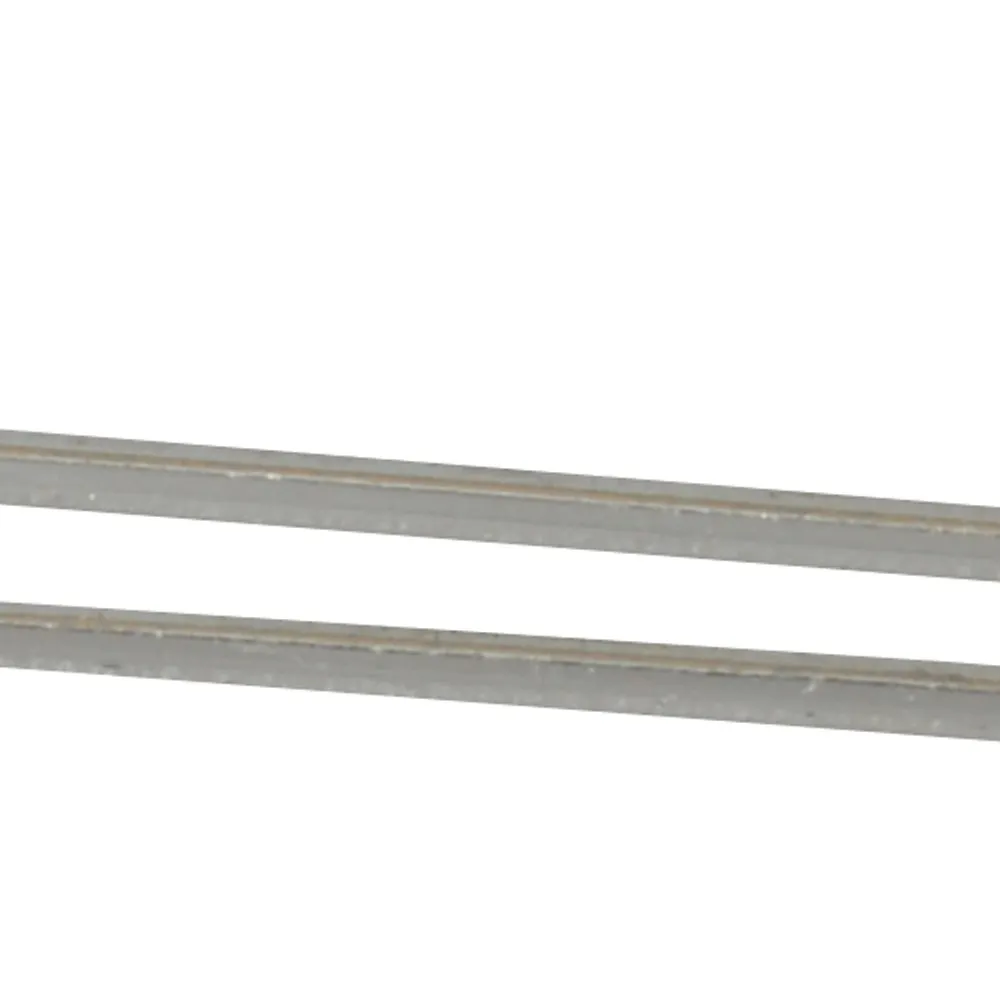

  • Terminal length: 1.04in
  • Diode lip/step height: 0.04in

    • Product Identification

    Product Type:IR Emitter

    Dimensions & Appearance

    Mounting:Through Hole
    Color:Infrared
    Height:8.7 mm

    Packaging

    Package:T-1 3/4

    Features

    Pins:2
    Typical Forward Voltage:1.35 V
    Lens Type:Blue Grey
    Viewing Angle:20°
    Forward Current:100 mA
    Peak Wavelength:940 nm
    ,
