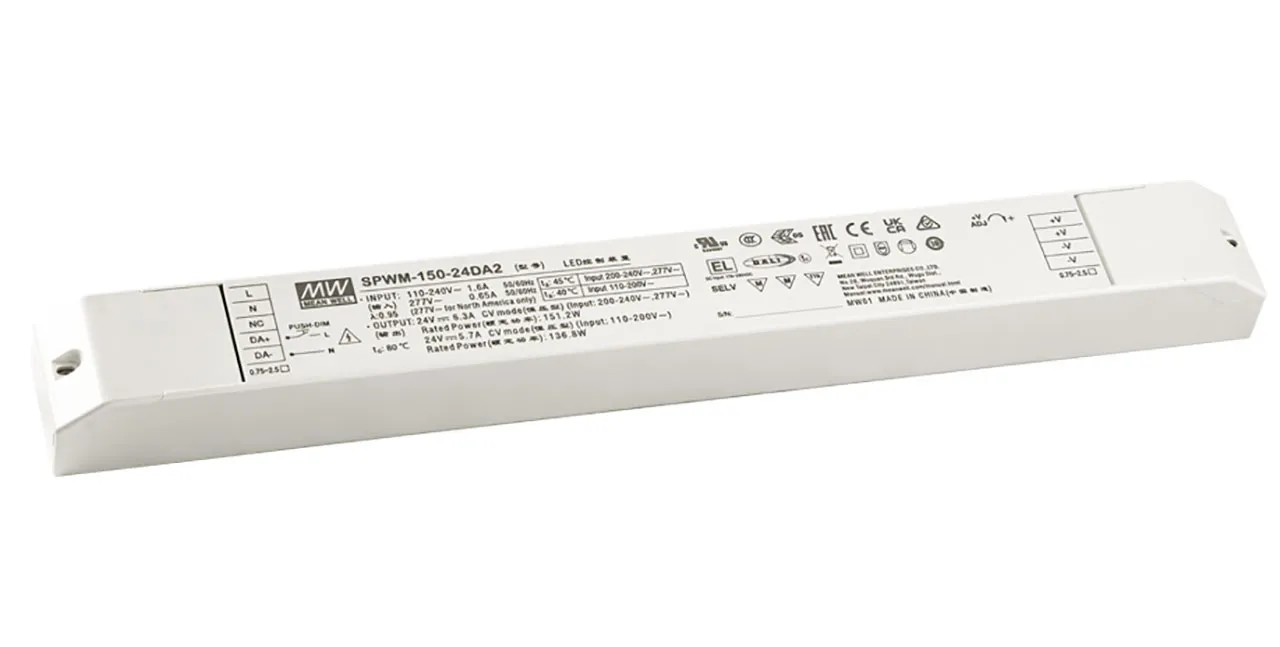

LED DRIVER,CV PWM,150W,[email protected],100-305VAC,DALI-2 w/DT6 CTRL
Product Identification
Product Type:LED Driver Constant Voltage with PWM Dimming
Manufacturer Series:SPWM-150
Compliance
Compliance:Compliance Docs
Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, ENEC, SELV, UKCA, UL
Dimensions & Appearance
Style:Class II
Color:White
Height:1.12 in.
Width:1.50 in.
Length:13.39 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:80°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC, 156 VDC to 410 VDC
Maximum Input Current:1.5 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Range:23 VDC to 26 VDC
Output Current:6.30 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3750VAC
IP Rating:N/A
Efficiency:93%
Power Rating:150 W
