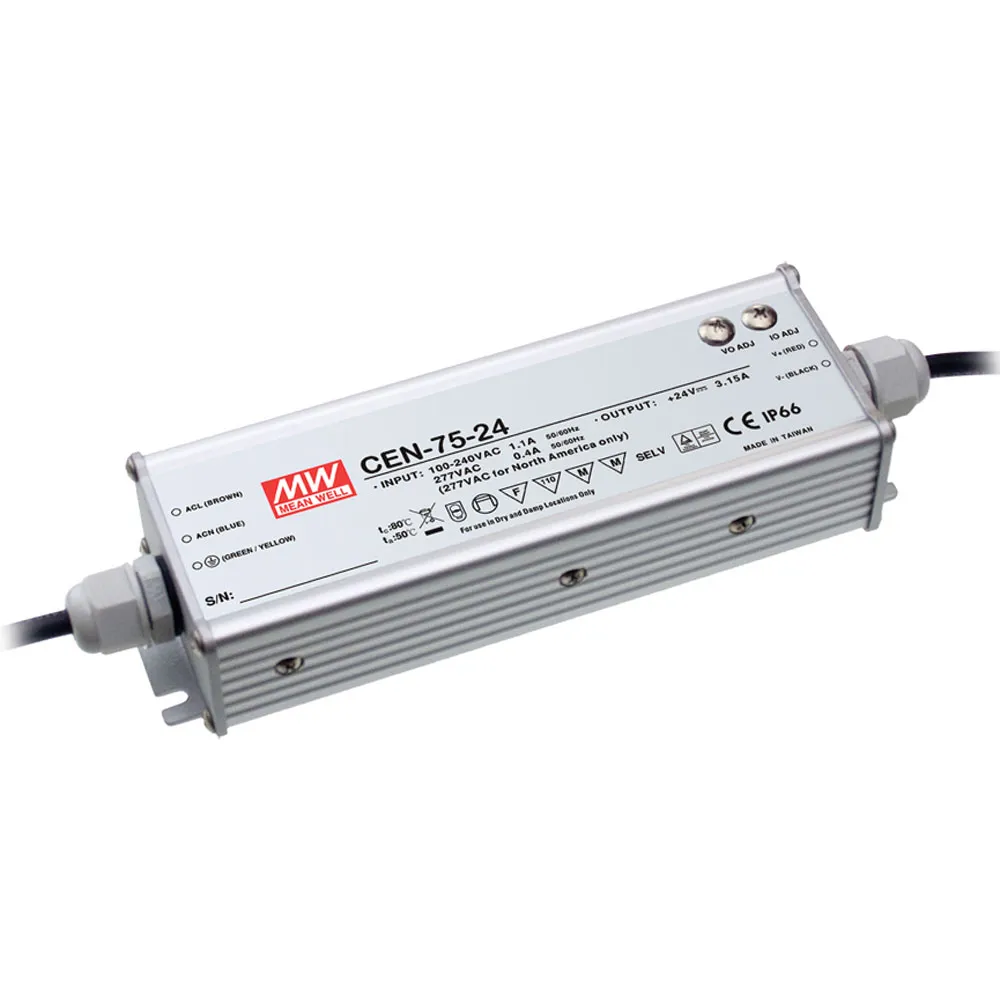

75W Single Output LED Power Supply

24 Volts @ 3.15 Amps


Constant Current Operation Voltage: 18 - 24 Volts

Features:
  • Universal AC input / Full range (up to 295VAC)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Output voltage and constant current level adjustable
  • Built-in active PFC function
  • IP66 design for indoor or outdoor installations
  • Cooling by free air convection
  • 100% full load burn-in test
  • High reliability
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp / wet locations
  • 3 years warranty

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:CEN-75

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL, UL, CUL, TUV, CB, CE, EN, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.59 in.
Width:2.46 in.
Length:7.20 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 295 VAC
Maximum Input Current:1.1 A

Output

Number of Outputs:1
Output Voltage (Channel 1):18 VDC to 24 VDC
Output Connector Type:Stripped and Tinned
Output Voltage:24 VDC
Output Current (Channel 1):3.15 A
Output Range:N/A
Output Current:3.15 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP66
Efficiency:89%
Power Rating:75.6 W
,
