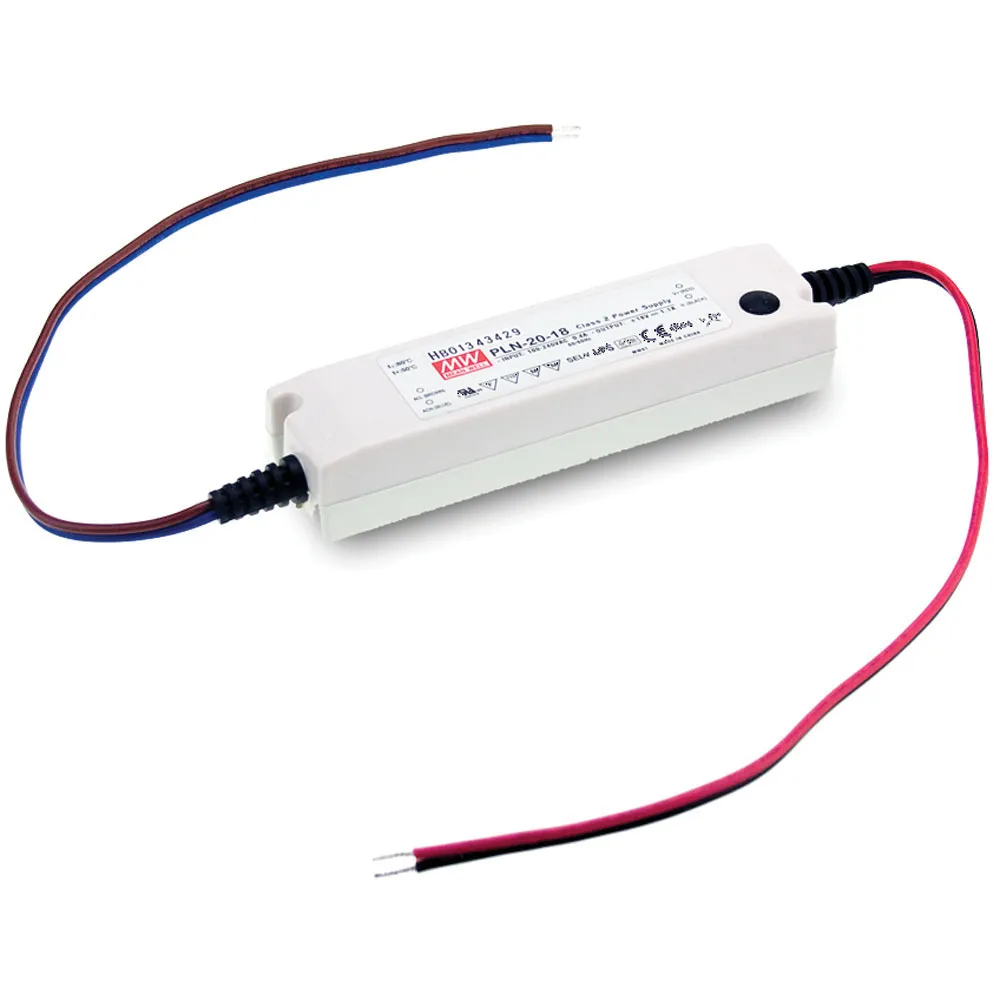

20W Single Output LED Power Supply
12 Volts @ 1.6 Amps
Features:
- Universal AC input / Full range(up to 277VAC)
- Built-in constant current limiting circuit with adjustable OCP level
- Fully isolated plastic case
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Built-in active PFC function
- IP64 design for indoor or outdoor installations
- Small and compact size
- Cooling by free air convection
- 100% full load burn-in test
- High reliability, low cost
- Suitable for Damp / wet locations
- Suitable for LED lighting and moving sign applications
- 2 years warranty
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:PLN-20
Compliance
Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL, UL, CUL, TUV, CB, CE, EN, EAC, CCC
Dimensions & Appearance
Style:Enclosed
Color:White
Height:1.10 in.
Width:1.51 in.
Length:5.84 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 277 VAC
Maximum Input Current:0.4 A
Output
Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Stripped and Tinned
Output Current:1.60 A
Output Range:N/A
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP64
Efficiency:80%
Power Rating:19.2 W
