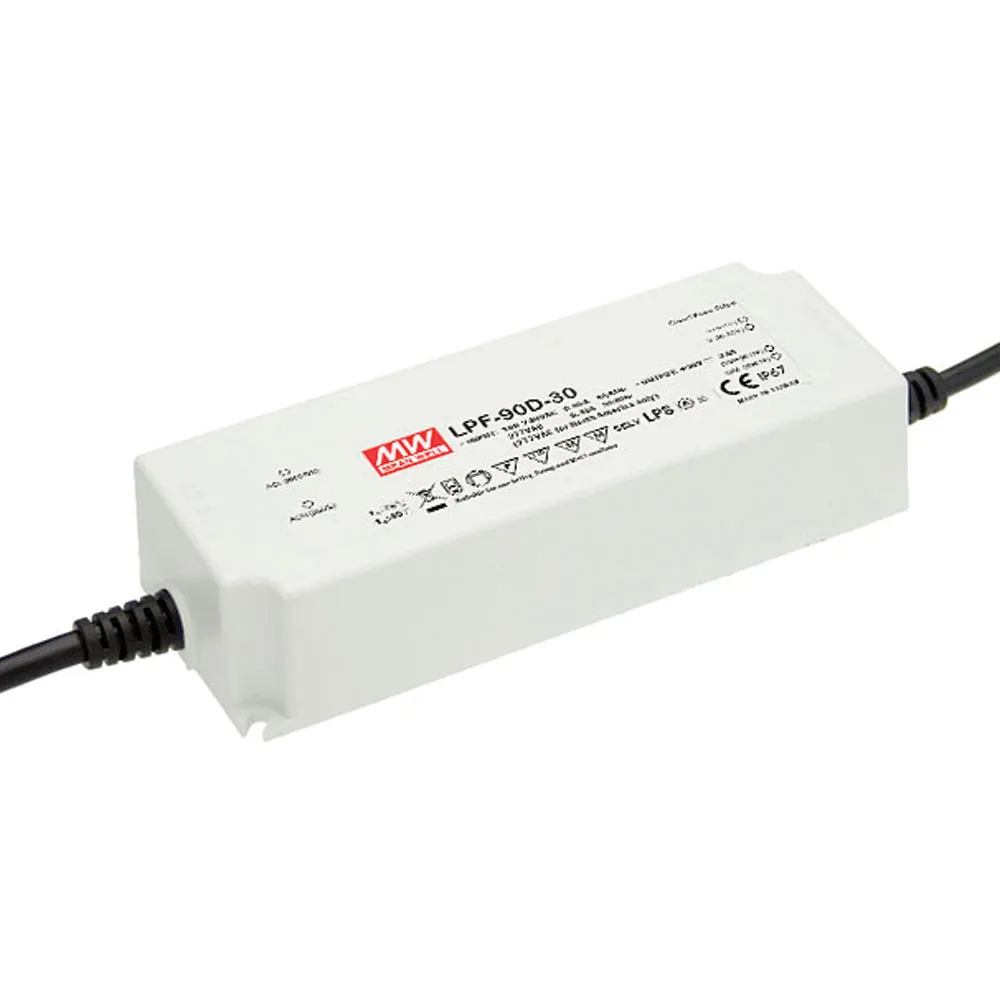

90W Single Output Switching LED Power Supply with Dimming Function

36 Volts 2.55 Amps
Constant Current Region: 21.6 - 36 Volts

Features:
  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • High efficiency up to 90.5%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in 3 in 1 dimming function (1~10Vdc or PWM signal or resistance)
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 3 years warranty
  • Suitable for dry / damp / wet locations
  • Fully isolated plastic case
  • Fully encapsulated with IP67 level
  • Class II power unit, no FG

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:LPF-90D

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, TUV, UL, UL, CUL, TUV, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.41 in.
Width:2.40 in.
Length:6.33 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:0.95 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Range:21.6 VDC to 36 VDC
Output Voltage:36 VDC
Output Current:2.50 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:90.5%
Power Rating:90 W
,
