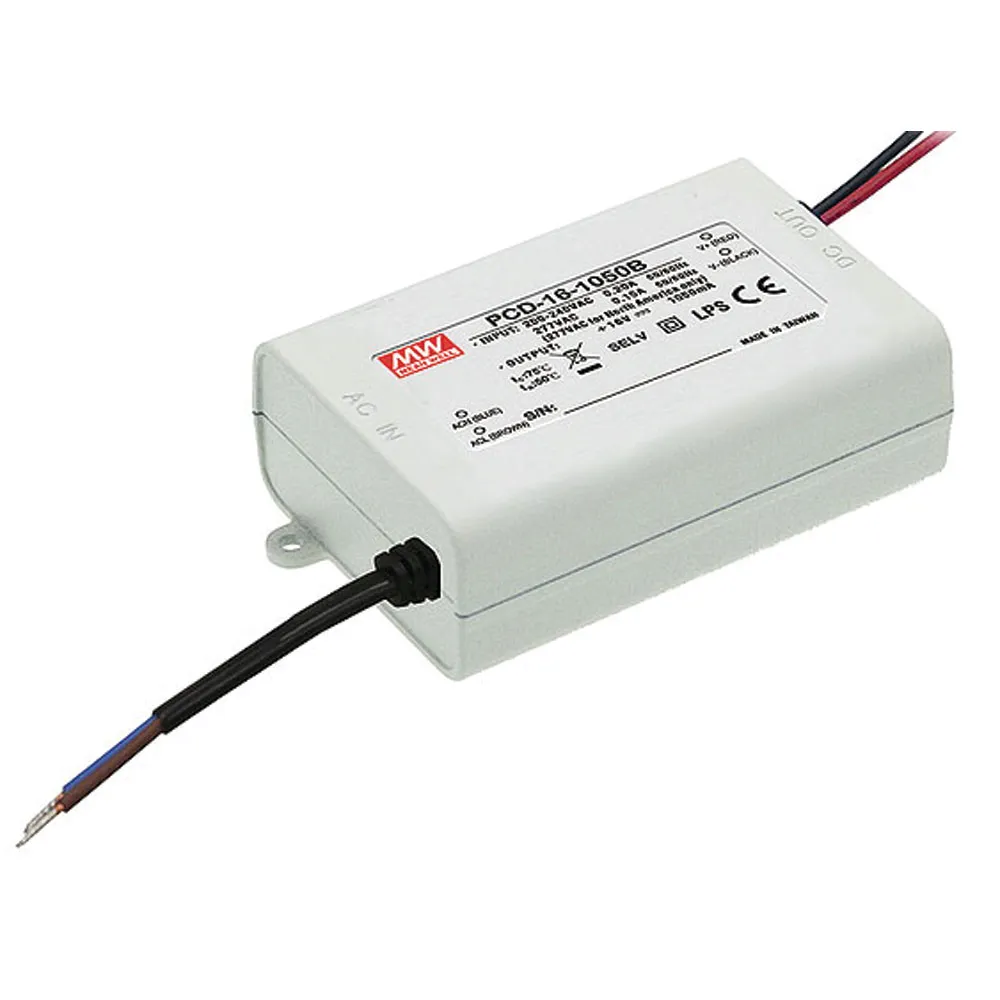

16W Single Output AC Dimmable LED Power Supply

12 - 16 Volts @ 1050 milliamps(mA)

Features:
  • AC Input Voltage: 180 - 295 VAC
  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Overload / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Class II power unit, no FG
  • CE Certified
  • Suitable for indoor LED lighting applications
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:PCD-16

Compliance

Agency Approvals: CB, CE, EAC, EN, ENEC, CUL, CUL, CB, CE, EN, ENEC, EAC

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.16 in.
Width:2.24 in.
Length:3.30 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.4 A
Input Voltage:180 VAC to 295 VAC

Output

Number of Outputs:1
Output Range:12 VDC to 16 VDC
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Current:1.05 A

Features

PFC Function:Yes
IP Rating:IP42
Minimum Isolation Voltage:3750V
Efficiency:80.5%
Power Rating:16.8 W
,
