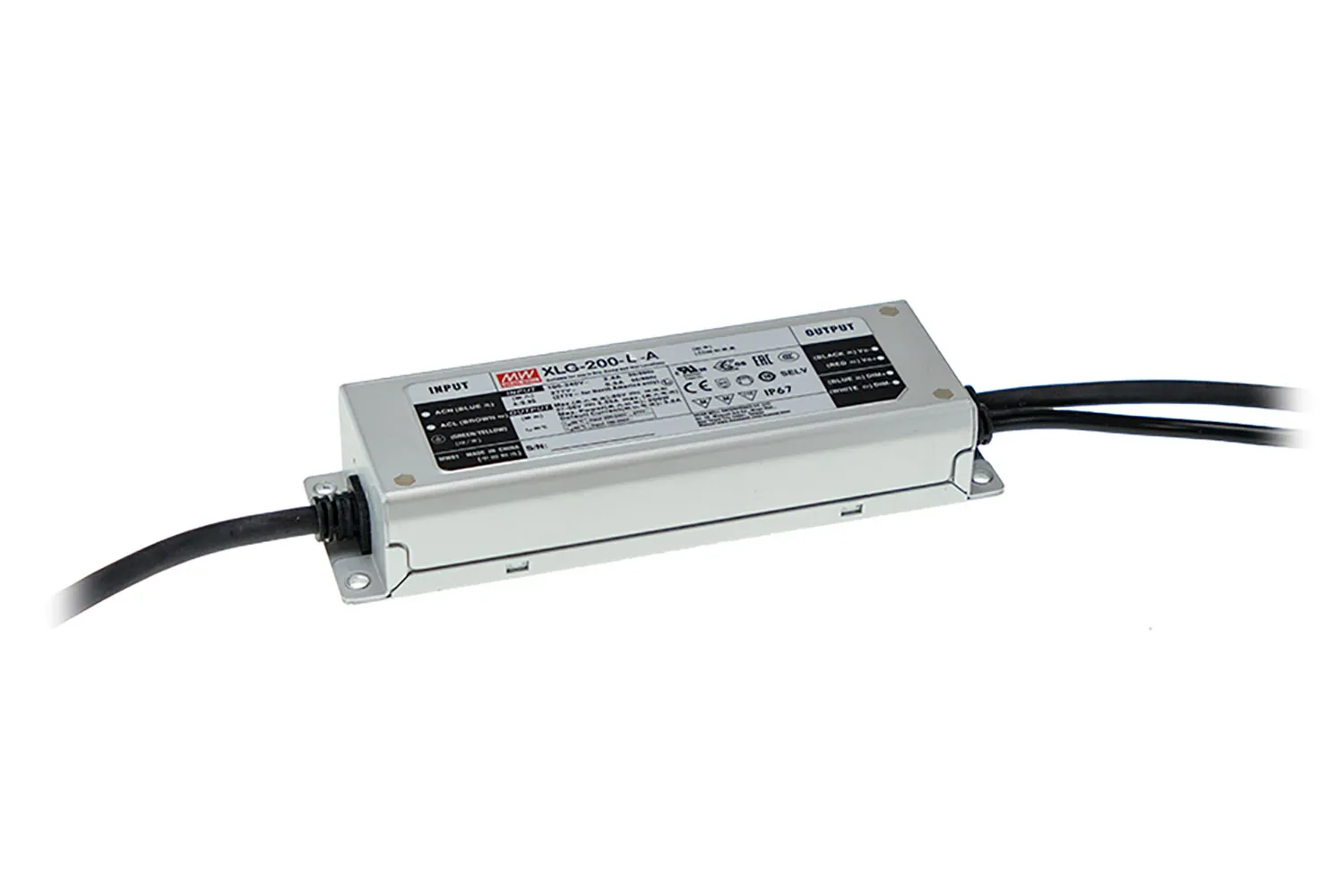

LED Driver Constant Voltage Constant Current Mode with Adjustable Output Current 200W 142V to 285V 0.7A

142 to 285 Volts DC @ 0.7 Amps (Constant current region: 142V to 285V; Full Power Current Range: 0.7A to 1.05A)

Find out more about MEAN WELL power solutions for outdoor lighting.

Features

  • Wide input voltage range: 100 to 305 VAC (Class I)
  • Full power output at 70 to 100% constant power mode operation
  • Metal case with IP67, suitable for outdoor applications
  • Surge protection with 6 KV/4 KV
  • Protection functions: Over voltage, short circuit, over current, over temperature
  • Life time: >50,000 hours
  • 5 year warranty

Specifications

  • DC Voltage: 142 to 285 V
  • Rated current: 0.7 A
  • Rated power: 200 W
  • Current adjustment range: 0.35 A to 1.05 A
  • Dimensions: 7.83"L x 2.48"W x 1.40"H

Applications

  • Skyscraper and commercial building lighting
  • Street lighting
  • Floodlights
  • Stage lighting
  • Fishing and marine lighting
  • Horticulture lighting
  • Bay lighting
  • DMX power supply
  • Type HL for use in Class I, Division 2

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XLG-200

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.4 in.
Width:2.48 in.
Length:7.83 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:2.2 A

Output

Number of Outputs:1
Output Current (Channel 1):0.70 A to 1.05 A
Output Connector Type:Stripped and Tinned
Output Voltage (Channel 1):142 VDC to 285 VDC
Output Current:0.70 A
Output Voltage:See Output Range
Output Range:142 VDC to 285 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:4200V
IP Rating:IP67
Efficiency:94%
Power Rating:200 W
,
