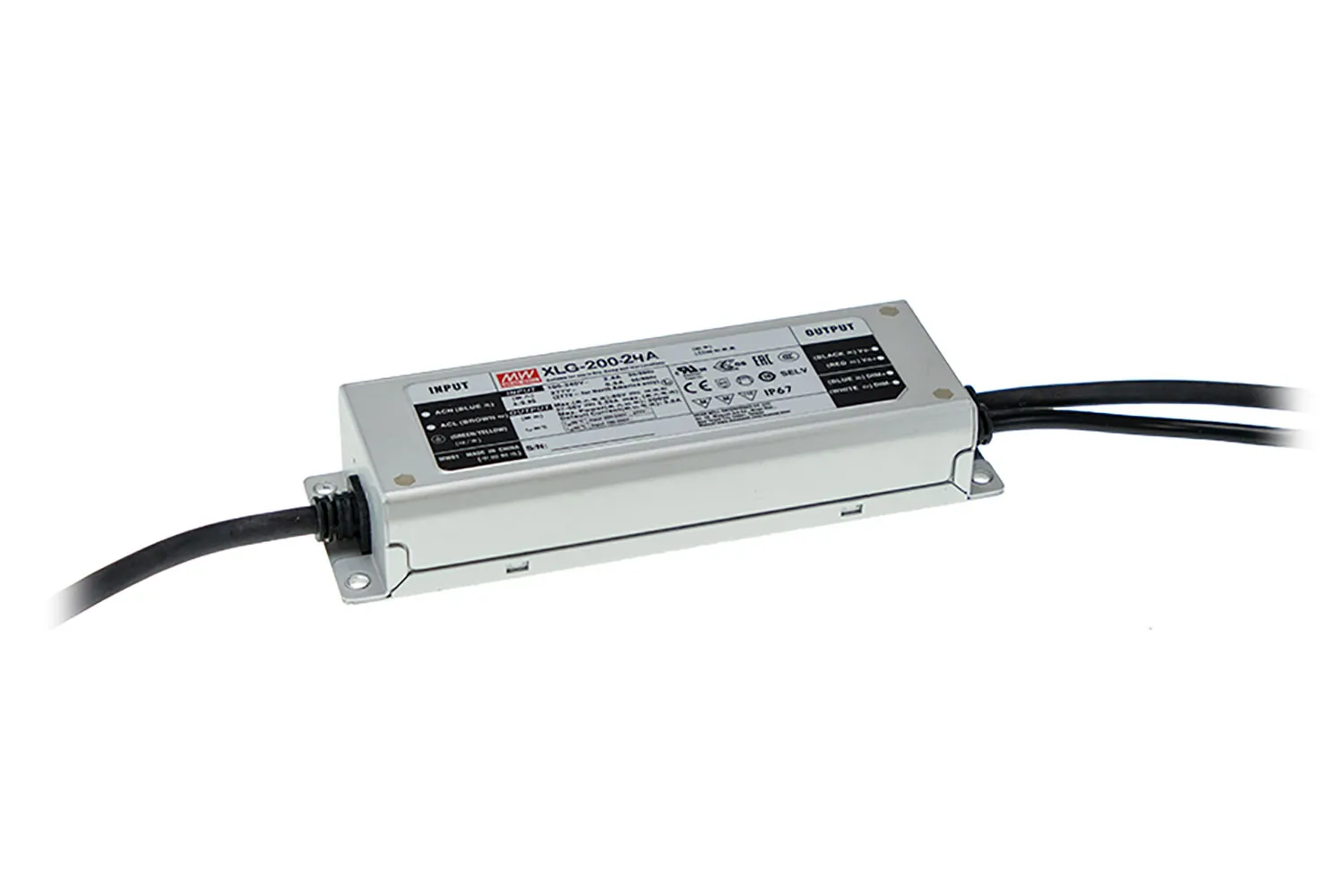

LED Driver Constant Voltage Constant Current Mode with Adjustable Output Current 199W 24V 8.3A

24 Volts DC @ 8.3 Amps (Constant current region: 16.8V to 24V; Current adjustment range: 4.15A to 8.3A)

Find out more about MEAN WELL power solutions for outdoor lighting.

Features

  • Wide input voltage range: 100 to 305 VAC (Class I)
  • Full power output at 70 to 100% constant power mode operation
  • Metal case with IP67, suitable for outdoor applications
  • Surge protection with 6 KV/4 KV
  • Protection functions: Over voltage, short circuit, over current, over temperature
  • Life time: >50,000 hours
  • 5 year warranty

Specifications

  • DC Voltage: 24 V
  • Rated current: 8.3 A
  • Rated power: 199.2 W
  • Current adjustment range: 4.15 A to 8.3 A
  • Dimensions: 7.83"L x 2.48"W x 1.40"H

Applications

  • Skyscraper and commercial building lighting
  • Street lighting
  • Floodlights
  • Stage lighting
  • Fishing and marine lighting
  • Horticulture lighting
  • Bay lighting
  • DMX power supply
  • Type HL for use in Class I, Division 2

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XLG-200

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.4 in.
Width:2.48 in.
Length:7.83 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:2.2 A

Output

Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Range:16.8 VDC to 24 VDC
Output Connector Type:Stripped and Tinned
Output Voltage:24 VDC
Output Current (Channel 1):8.30 A
Output Current:8.30 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4200V
IP Rating:IP67
Efficiency:94%
Power Rating:199.2 W
,
