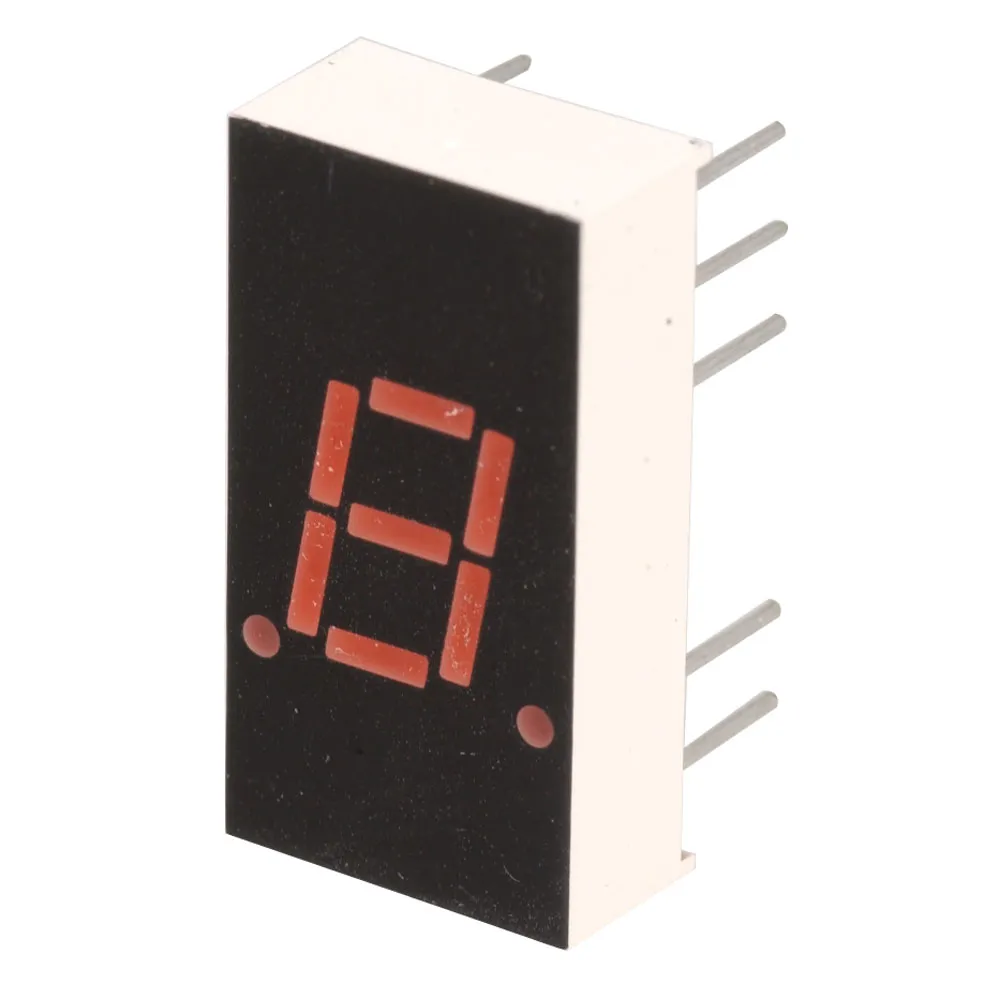

7-Segment LED Display Red 0.3" Digit RHDP
The general advantages of LED displays (compared to incandescent types) are: lower power consumption, longer lifetime (averaged more than 300,000 hours), compact size which is suitable for instrumentation and graphic representations, soldering bath: not more than 5 seconds @ 260°C, soldering iron: not more than 3 seconds @ 300°C under 30W.Features
- Character Height: 0.300"
- Illumination Color: Red
- Buss Polarity: CC
- Pins/Leads: 10
- Vf@If: 2.1@20mA
- Typical mcd@mA: 2.5@20
- Wavelength: 697nm
- Decimal Point: RHDP
Product Identification
Product Type:Segmented LED Display
Dimensions & Appearance
Color:Black
Mounting:Through Hole
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Packaging
Package:14-DIP (0.3", 7.62mm), 10 leads
Features
Number of Digits:1
Pattern Graphics:Segmented
Buss Polarity:Common Cathode
Viewing Area Height:7.62 mm
LED Display Type:7-Seg Numeric
Digit Size:0.30"
Decimal Point:LHDP/RHDP
Pins:10
Character Size:0.30"
Illuminated Color:Red
Typical Forward Voltage:2.1 VDC
Luminous Intensity:2.5 mcd
Maximum Forward Current:20 mA
Dominant Wavelength:697 nm
Maximum Forward Voltage:2.8 V
Peak Wavelength:697 nm
Thickness:6.1 mm
